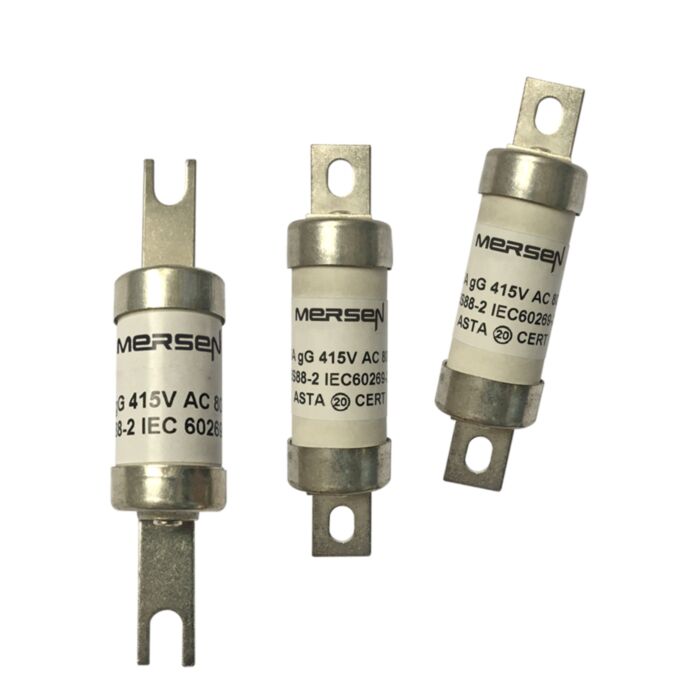

MERSEN FUSE BTSD42V125 A4C BTSD42V125
MPN: A1019199
Alt. SKU: BTSD42V125
Special Price
£12.96
£10.80
Regular Price
£37.04
MERSEN FUSE BTSD42V125 A4C BTSD42V125 is available to buy in increments of 10
Why Choose the BS88 gG Type A4 415VAC 240VDC 125A BTSD Offset Tag Fuse-Link (BTSD42V125)?
Engineered to IEC BS88 standards, the BTSD42V125 fuse-link offers dependable circuit protection for industrial and commercial applications up to 415VAC and 240VDC. Its robust gG characteristic ensures effective safeguarding for both cabling and equipment against overloads and short-circuit faults.
The 125A rating with offset tags enables straightforward installation and secure connectivity in demanding panel or distribution board layouts. Reliable, compact, and compliant, it is the professional choice for consistent operational safety and system longevity.
Product Code: BTSD42V125
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- High breaking capacity of 80 kA AC and 40 kA DC for robust protection.
- Offset tag terminals allow easy and secure bolted mounting.
- Ceramic body ensures durability and excellent insulation.
- Suitable for both AC and DC applications up to 415V and 240V respectively.
- Compact dimensions facilitate installation in confined panel spaces.
Compatibility
The BTSD42V125 fuse-link is compatible with BS88 Type A4 fuse holders and switchgear designed for IEC standard gG fuse-links. It integrates seamlessly into industrial and commercial electrical distribution systems requiring 125A protection with offset tag connections.
Applications
- Industrial motor protection circuits.
- Commercial building electrical distribution boards.
- Control panels and switchgear requiring high breaking capacity fuses.
- Protection of transformers and electrical equipment against overloads and short circuits.
- Renewable energy system protection where DC ratings are critical.
Technical Specifications
- Item number: A1019199
- Catalogue No: BTSD42V125
- Description: British Standard fuse-link IEC BS88 gG Type A4 415VAC 240VDC 125A BTSD Offset Tag
- EAN/UPC Code: 3605340515503
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 125 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 70000 A²s
- Melting I2t: 16000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21 mm
- Product Width: 24.5 mm
- Product Length: 110 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.82 kg
- Sell Pack Width: 120 mm
- Sell Pack Length: 230 mm
- Sell Pack Height: 40 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.082 kg
- Power Dissipation at Rated Current Value: 11.5 W
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse provides full-range protection against both overloads and short circuits, suitable for general applications.
Can this fuse-link be used in DC circuits?
Yes, the BTSD42V125 is rated for use in DC circuits up to 240V, making it versatile for various applications including renewable energy systems.
What is the significance of the offset tag terminal type?
Offset tag terminals allow for secure bolted connections and facilitate easier installation in panel layouts where space and accessibility are considerations.
Is this fuse RoHS compliant?
Yes, the BTSD42V125 complies with RoHS directives, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse-link, gG fuse 125A, IEC fuse A4 size, 415V fuse, 240V DC fuse, offset tag fuse, industrial fuse-link, ceramic fuse 125 amp, high breaking capacity fuse, bolted fuse terminal
| Manufacturer Part Number | A1019199 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515503 |
| Height | 110mm |
| Width | 24.5mm |
| Depth | 21mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTSD42V125 |
