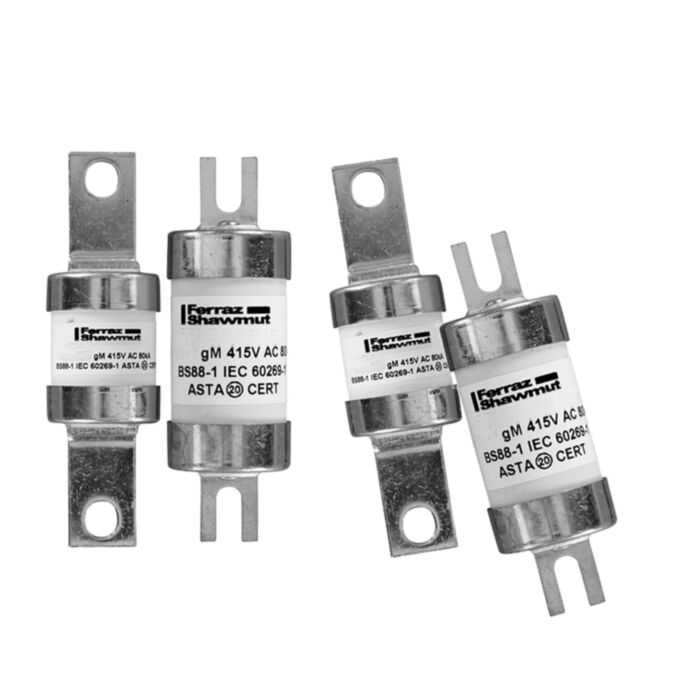

MERSEN FUSE BTSD42V100M125 A4C BTSD42V100M125
MPN: D1019202
Alt. SKU: BTSD42V100M125
Special Price
£15.82
£13.18
Regular Price
£45.20
MERSEN FUSE BTSD42V100M125 A4C BTSD42V100M125 is available to buy in increments of 10
Why Choose the BS88 gM Type A4 415VAC 240VDC 100M125A BTSD Offset Tag BTSD42V100M125?
Engineered to IEC and BS88 standards, this fuse-link offers reliable circuit protection for both AC (up to 415V) and DC (up to 240V) applications. Its gM characteristic provides comprehensive protection for motor circuits, seamlessly combining gG full-range breaking with enhanced motor withstand.
Designed with precision BTSD offset tags, this unit ensures secure and efficient installation in demanding industrial environments. Rated at 100M125A, it delivers consistent performance and safety, making it ideal for maintaining operational uptime in critical power systems.
Product Code: BTSD42V100M125
Key Benefits
- Complies with IEC and BS88 standards for assured quality and safety.
- Suitable for both AC and DC applications up to 415VAC and 240VDC.
- gM characteristic offers comprehensive motor circuit protection.
- High breaking capacity: 80 kA AC, 40 kA DC for robust fault clearance.
- Durable ceramic body ensures long service life and thermal stability.
- Offset tag terminals provide secure and easy bolted mounting.
- RoHS compliant, supporting environmentally responsible installations.
Compatibility
This fuse-link is compatible with standard BS88 Type A4 fuse holders and switchgear designed for IEC low voltage fuses. It is suitable for integration into motor control circuits and industrial power distribution systems requiring gM characteristic protection.
Applications
- Motor circuit protection in industrial machinery.
- Power distribution panels in commercial and industrial settings.
- Control gear and switchgear protection.
- AC and DC electrical systems requiring high breaking capacity fuses.
- Maintenance and upgrade of existing BS88 compliant installations.
Technical Specifications
- Item number: D1019202
- Catalogue No: BTSD42V100M125
- Description: British Standard fuse-link IEC BS88 gM Type A4 415VAC 240VDC 100M125A BTSD Offset Tag
- EAN/UPC Code: 3605340515633
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- In M Ich: 100M125 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 70000 A²s
- Melting I2t: 16000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21 mm
- Product Width: 24.5 mm
- Product Length: 110 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.6 kg
- Sell Pack Width: 117 mm
- Sell Pack Length: 218 mm
- Sell Pack Height: 38 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.06 kg
- Power Dissipation at Rated Current Value: 9.2 W
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic fuse provides full-range protection for motor circuits, combining general purpose fuse protection with enhanced motor withstand capability to handle motor starting currents.
Can this fuse be used in both AC and DC circuits?
Yes, this fuse is rated for use in AC circuits up to 415V and DC circuits up to 240V, making it suitable for a variety of industrial applications.
What is the significance of the BTSD offset tag?
The BTSD offset tag refers to the terminal design, which allows for secure bolted connections and easy installation in compatible fuse holders and switchgear.
Is this fuse RoHS compliant?
Yes, the BTSD42V100M125 fuse-link meets RoHS compliance standards, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse, gM fuse-link, IEC fuse 415V, 240VDC fuse, motor protection fuse, BTSD offset tag fuse, 100M125A fuse, ceramic body fuse, industrial fuse-link, high breaking capacity fuse
