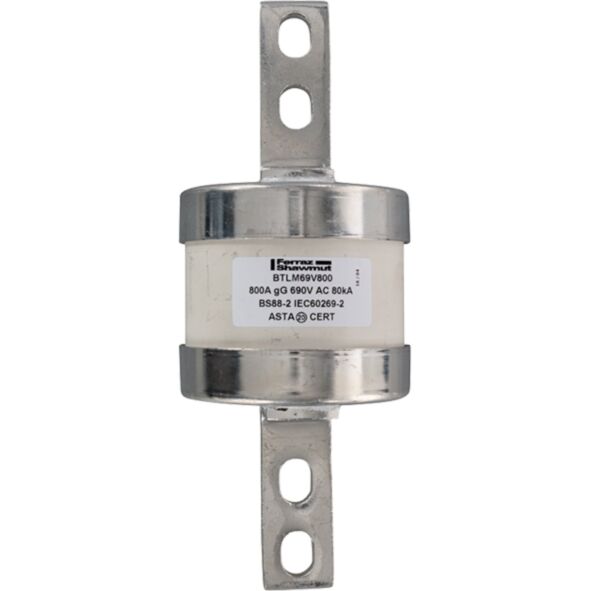

MERSEN FUSE BTLM69V800 C3 BTLM69V800
MPN: G1019274
Alt. SKU: BTLM69V800
Special Price
£212.92
£177.43
Regular Price
£608.33
Why Choose the BS88 gG Type C3 690VAC 69V800A BTLM Central Bolted Tag Fuse-Link?
This BS88 gG Type C3 fuse-link provides reliable circuit protection for low and medium voltage industrial applications operating at up to 690VAC. Engineered for robust performance, it ensures rapid fault interruption and enhanced operational safety in demanding electrical environments.
The central bolted tag design (BTLM) offers secure, vibration-resistant mounting, making it ideal for distribution boards, control panels, and switchgear. With full compliance to IEC standards, the BTLM69V800 guarantees consistent performance, durability, and compatibility with leading British and European installations.
Product Code: BTLM69V800
Key Benefits
- High breaking capacity of 80 kA ensures reliable fault interruption.
- Central bolted tag connection provides secure and vibration-resistant mounting.
- Ceramic body offers excellent insulation and durability.
- Complies with IEC and British Standard BS88 for assured quality.
- Suitable for low and medium voltage industrial applications up to 690VAC.
- RoHS compliant for environmental safety.
Compatibility
The BTLM69V800 fuse-link is compatible with distribution boards, industrial control panels, and switchgear designed for BS88 gG Type C3 fuses. It fits installations requiring IEC standard fuse-links with central bolted tag terminals and is suitable for use in British and European electrical systems operating up to 690VAC.
Applications
- Industrial motor protection
- Power distribution systems
- Control and instrumentation panels
- Switchgear assemblies
- Renewable energy installations
- General low and medium voltage electrical circuits
Technical Specifications
- Item number: G1019274
- Catalogue No: BTLM69V800
- Description: British Standard fuse-link IEC BS88 gG Type C3 690VAC 69V800A BTLM Central Bolted Tag
- EAN/UPC Code: 3605340515817
- Rated voltage AC IEC: 690 V
- In M Ich: 69V800 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: gG
- Fuse Size: C3
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 15000 kA²s
- Melting I2t: 3769 kA²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 82.4 mm
- Product Length: 212 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 1.4 kg
- Sell Pack Width: 90 mm
- Sell Pack Length: 210 mm
- Sell Pack Height: 85 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 1.4 kg
- Power Dissipation at Rated Current Value: 68 W
Frequently Asked Questions
What is the breaking capacity of the BTLM69V800 fuse-link?
The fuse-link has a maximum breaking capacity of 80 kA at rated voltage.
Is this fuse-link suitable for DC applications?
No, this fuse-link is designed specifically for AC applications up to 690 V.
What type of mounting does this fuse-link use?
It uses a central bolted tag mounting for secure and vibration-resistant installation.
Is the BTLM69V800 RoHS compliant?
Yes, it complies with RoHS environmental standards.
What materials are used for the fuse body and terminals?
The fuse body is made of ceramic, and the terminals are tin-plated copper.
Common Search Terms
BS88 fuse, gG fuse-link, 690VAC fuse, C3 fuse size, central bolted tag fuse, industrial fuse-link, IEC fuse, low voltage fuse, high breaking capacity fuse, ceramic fuse-link
| Manufacturer Part Number | G1019274 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340515817 |
| Height | 212mm |
| Width | 82.4mm |
| Depth | 82.4mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTLM69V800 |
