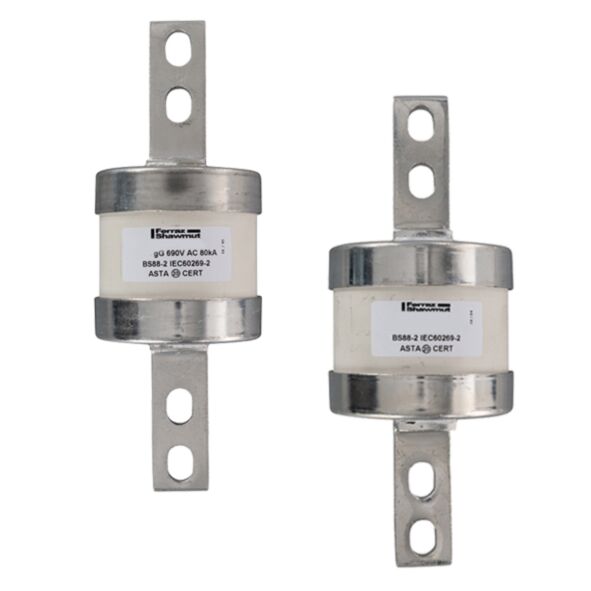

MERSEN FUSE BTLM69V750 C3 BTLM69V750
MPN: F1019273
Alt. SKU: BTLM69V750
Special Price
£208.80
£174.00
Regular Price
£596.57
Why Choose the BS88 gG Type C3 690VAC 69V750A BTLM Central Bolted Tag Fuse-Link?
The BTLM69V750 fuse-link is designed in accordance with IEC BS88 standards, providing reliable circuit protection for demanding industrial and commercial applications. Rated for 690VAC and up to 750A, it delivers consistent performance where operational safety and high fault current clearance are essential.
The central bolted tag design ensures secure, low-resistance connectivity and straightforward installation. Engineered for durability and longevity, this gG fuse-link meets rigorous British Standard requirements, making it a dependable choice for switchgear and heavy-duty power distribution systems.
Product Code: BTLM69V750
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- High breaking capacity of 80 kA ensures protection against severe fault currents.
- Central bolted tag terminals provide secure and low-resistance connections.
- Ceramic insulating material offers excellent durability and heat resistance.
- Designed for easy installation and maintenance in industrial switchgear.
- RoHS compliant, supporting environmental and safety regulations.
Compatibility
This fuse-link is compatible with low voltage IEC fuse holders and switchgear designed for BS88 gG type fuses, particularly those requiring C3 size fuse-links with central bolted tag connections. It is suitable for use in industrial, commercial, and heavy-duty electrical distribution systems operating at up to 690VAC.
Applications
- Industrial power distribution and protection systems.
- Commercial electrical installations requiring high fault current protection.
- Switchgear and control panels in manufacturing plants.
- Heavy machinery and motor protection.
- Renewable energy installations with high voltage AC requirements.
Technical Specifications
- Item number: F1019273
- Catalogue No: BTLM69V750
- Description: British Standard fuse-link IEC BS88 gG Type C3 690VAC 69V750A BTLM Central Bolted Tag
- EAN/UPC Code: 3605340515763
- Rated voltage AC IEC: 690 V
- In M Ich: 69V750 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: gG
- Fuse Size: C3
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 14200 kA²s
- Melting I2t: 3000 kA²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 82.4 mm
- Product Length: 212 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 1.4 kg
- Sell Pack Width: 90 mm
- Sell Pack Length: 210 mm
- Sell Pack Height: 85 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 1.4 kg
- Power Dissipation at Rated Current Value: 65 W
Frequently Asked Questions
What is the maximum voltage rating for this fuse-link?
The BTLM69V750 fuse-link is rated for a maximum AC voltage of 690V according to IEC standards.
Can this fuse-link be used in DC applications?
No, this particular fuse-link is designed for AC applications only.
What does the gG characteristic mean?
The gG characteristic indicates a general-purpose fuse-link suitable for protection of cables and equipment against overload and short-circuit currents.
Is the fuse-link RoHS compliant?
Yes, the BTLM69V750 is RoHS compliant, meeting environmental and safety standards.
What type of connection terminals does this fuse-link have?
It features central bolted tag terminals made of tin-plated copper for secure and low-resistance connections.
Common Search Terms
BS88 fuse-link, IEC gG fuse, 690VAC fuse, 750A fuse-link, central bolted tag fuse, C3 fuse size, industrial fuse-link, low voltage fuse, ceramic fuse-link, high breaking capacity fuse
| Manufacturer Part Number | F1019273 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340515763 |
| Height | 212mm |
| Width | 82.4mm |
| Depth | 82.4mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTLM69V750 |
