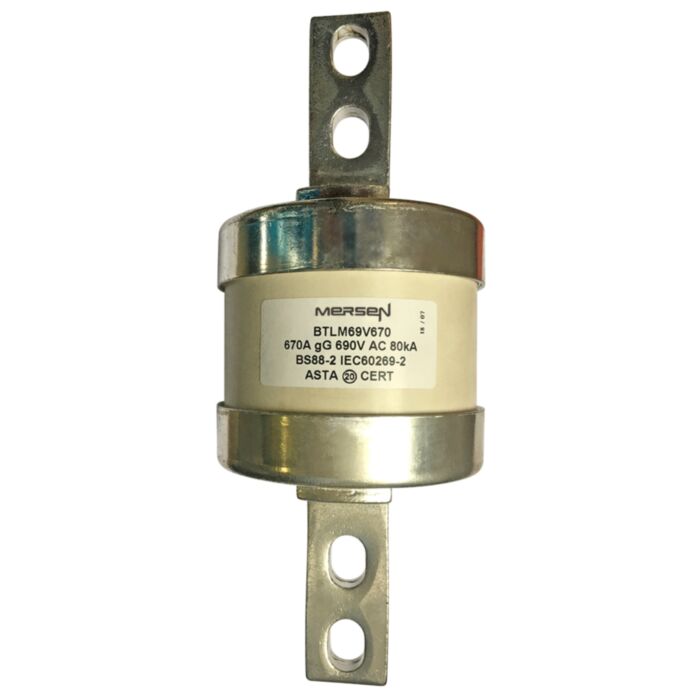

MERSEN FUSE BTLM69V670 C3 BTLM69V670
MPN: D1019271
Alt. SKU: BTLM69V670
Special Price
£208.80
£174.00
Regular Price
£596.57
Why Choose the BS88 gG Type C3 690VAC 69V670A BTLM Central Bolted Tag Fuse-Link?
This high-performance BS88 gG Type C3 fuse-link is specifically engineered for reliable protection of industrial power and control circuits up to 690VAC. Offering a robust 670A current rating, it ensures rapid fault interruption and operational safety in demanding environments.
The central bolted tag configuration provides secure, low-resistance connections, simplifying installation and maintenance. Fully compliant with IEC and British Standards, the BTLM69V670 is trusted for consistent, long-life performance in heavy-duty electrical distribution applications.
Technical Specifications
- Item number: D1019271
- Catalogue No: BTLM69V670
- Description: British Standard fuse-link IEC BS88 gG Type C3 690VAC 69V670A BTLM Central Bolted Tag
- EAN/UPC Code: 3605340515664
- Rated voltage AC IEC: 690 V
- In M Ich: 69V670 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: gG
- Fuse Size: C3
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 10100 kA²s
- Melting I2t: 1950 kA²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 82.4 mm
- Product Length: 212 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 1.4 kg
- Sell Pack Width: 90 mm
- Sell Pack Length: 210 mm
- Sell Pack Height: 85 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 1.4 kg
- Power Dissipation at Rated Current Value: 60 W
Product Code: BTLM69V670
Key Benefits
- High breaking capacity of 80 kA ensures reliable fault interruption.
- Central bolted tag connection offers secure and low-resistance installation.
- Ceramic body provides excellent insulation and durability.
- Complies with IEC and British Standards for safety and performance.
- Designed for long service life in demanding industrial environments.
Compatibility
The BTLM69V670 fuse-link is compatible with standard BS88 gG Type C3 fuse holders and switchgear designed for 690VAC industrial power circuits. It integrates seamlessly into existing low voltage IEC fuse systems requiring a 670A rating and central bolted tag mounting.
Applications
- Industrial power distribution and control circuits.
- Heavy-duty electrical installations requiring high breaking capacity.
- Protection of motors, transformers, and other critical equipment.
- Electrical panels and switchgear in manufacturing plants.
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates a general-purpose fuse suitable for protection of cables and equipment against overloads and short circuits in industrial applications.
Is this fuse suitable for DC applications?
No, the BTLM69V670 is designed for AC applications only, as specified in the technical details.
Can this fuse-link be used in switchgear with different mounting types?
This fuse-link is designed specifically for central bolted tag mounting and should be used with compatible holders to ensure safety and performance.
What standards does this fuse comply with?
It complies with IEC and British Standards for BS88 gG Type C3 fuse-links, ensuring reliable and consistent performance.
Common Search Terms
BS88 fuse-link, gG fuse 670A, 690VAC fuse, central bolted tag fuse, industrial fuse-link, low voltage IEC fuse, ceramic fuse-link, high breaking capacity fuse, C3 fuse-link
| Manufacturer Part Number | D1019271 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340515664 |
| Height | 212mm |
| Width | 82.4mm |
| Depth | 82.4mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTLM69V670 |
