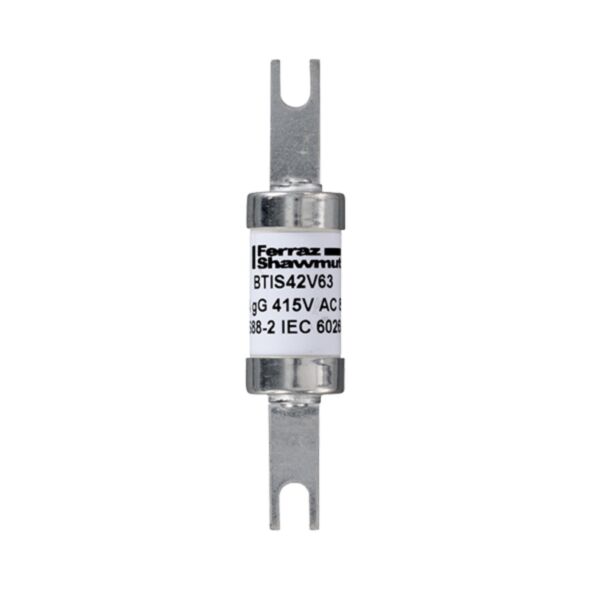

MERSEN FUSE BTIS42V63 63A3C Q1045272
MPN: Q1045272
Alt. SKU: BTIS42V63
Special Price
£5.18
£4.32
Regular Price
£14.80
MERSEN FUSE BTIS42V63 63A3C Q1045272 is available to buy in increments of 10
Why Choose the BS88 gG Type A3 415VAC 240VDC 63A BTIS Offset Tag Fuse-Link?
Engineered for reliable circuit protection, the BTIS42V63 fuse-link complies with IEC BS88 and gG classification, delivering robust performance up to 415VAC and 240VDC at 63A. Its offset tag design ensures secure fitment, minimising installation complexity and supporting precise alignment in demanding applications.
Ideal for industrial switchgear and control panels, this Type A3 fuse-link excels in protecting cables and equipment against overload and short circuit conditions, ensuring safety and continuity in critical electrical systems.
Product Code: BTIS42V63
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- High breaking capacity of 80 kA AC and 40 kA DC for superior protection.
- Offset tag terminals enable secure and easy bolted mounting.
- Ceramic body provides excellent thermal and mechanical stability.
- Suitable for both AC and DC applications up to 415VAC and 240VDC.
- RoHS compliant, ensuring environmental safety.
Compatibility
This fuse-link is compatible with industrial switchgear and control panels designed for BS88 gG type fuses with A3 size. It fits securely with bolted mounting arrangements and offset tag terminals, making it suitable for a wide range of low voltage electrical systems requiring reliable overload and short circuit protection.
Applications
- Industrial switchgear protection
- Control panel circuit protection
- Motor and transformer protection
- Overload and short circuit protection in low voltage systems
- Electrical distribution boards
Technical Specifications
- Item number: Q1045272
- Catalogue No: BTIS42V63
- Description: British Standard fuse-link IEC BS88 gG Type A3 415VAC 240VDC 63A BTIS Offset Tag
- EAN/UPC Code: 3605340564396
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 63 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A3
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 13900 A²s
- Melting I2t: 4000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 17.1 mm
- Product Width: 18.5 mm
- Product Length: 84 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.31 kg
- Sell Pack Width: 100 mm
- Sell Pack Length: 200 mm
- Sell Pack Height: 25 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.031 kg
- Power Dissipation at Rated Current Value: 4.7 W
Frequently Asked Questions
What is the breaking capacity of this fuse-link?
The BTIS42V63 fuse-link has a maximum breaking capacity of 80 kA for AC and 40 kA for DC applications.
Is this fuse suitable for both AC and DC circuits?
Yes, it is rated for use in both AC (up to 415 V) and DC (up to 240 V) circuits.
What type of mounting does this fuse-link require?
This fuse-link uses bolted mounting with offset tag terminals for secure installation.
Is the fuse RoHS compliant?
Yes, the BTIS42V63 fuse-link is RoHS compliant.
Common Search Terms
BS88 fuse-link, gG fuse 63A, IEC BS88 fuse, Type A3 fuse, 415VAC fuse, 240VDC fuse, offset tag fuse, industrial fuse-link, low voltage fuse, bolted mounting fuse
| Manufacturer Part Number | Q1045272 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340564396 |
| Height | 84mm |
| Width | 18.5mm |
| Depth | 17.1mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIS42V63 |
