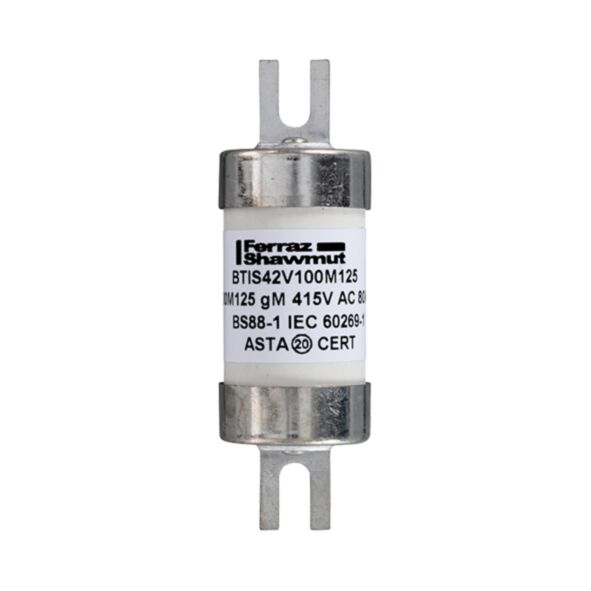

MERSEN FUSE BTIS42V100M125 A3 BTIS42V100M125

Why Choose the BS88 gM Type A3 100M125A BTIS Offset Tag Fuse-Link?

Engineered to IEC BS88 standards, the BTIS42V100M125 fuse-link delivers reliable circuit protection for both AC (415V) and DC (240V) installations, supporting up to 100M125A. Its gM characteristics ensure rapid response to overloads and short circuits, whilst offering discrimination and selectivity in demanding industrial environments.

The offset tag design guarantees secure, hassle-free installation within compatible fuse holders. Proven BTIS quality provides extended service life and minimal downtime, making this fuse-link an optimal choice for critical protection in control panels, power distribution, and heavy-duty industrial systems.

Technical Specifications

• Item number: N1019188
• Catalogue No: BTIS42V100M125
• Description: British Standard fuse-link IEC BS88 gM Type A3 415VAC 240VDC 100M125A BTIS Offset Tag
• EAN/UPC Code: 3605340516050
• Rated voltage AC IEC: 415 V
• Rated voltage DC IEC: 240 V
• In M Ich: 100M125 A
• RoHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: gM
• Fuse Size: A3
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 78400 A²s
• Melting I2t: 28000 A²s
• AC Max I.R./Breaking Capacity: I1: 80 kA
• Max. Rated Breaking Capacity DC: 40 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Offset Tag
• Product Diameter: 26.9 mm
• Product Width: 28 mm
• Product Length: 88.5 mm
• Sell Pack Quantity: 10 EA
• Sell Pack Weight: 0.82 kg
• Sell Pack Width: 95 mm
• Sell Pack Length: 140 mm
• Sell Pack Height: 60 mm
• Product group: Low Voltage IEC Fuses
• Body/Insulating Material: Ceramic
• Product Weight: 0.082 kg
• Power Dissipation at Rated Current Value: 9 W

Product Code: BTIS42V100M125

Key Benefits

• Complies with IEC BS88 standards for assured quality and safety.
• Suitable for both AC (415V) and DC (240V) applications.
• gM characteristic ensures fast and reliable protection against overloads and short circuits.
• Offset tag terminal design allows easy and secure installation.
• High breaking capacity: 80 kA AC and 40 kA DC for robust protection.
• Ceramic body provides excellent insulation and durability.
• RoHS compliant, environmentally friendly product.

Compatibility

This fuse-link is compatible with fuse holders designed to accept IEC BS88 A3 size fuse-links with offset tag terminals. It is ideal for integration into low voltage industrial control panels, power distribution units, and heavy-duty electrical systems requiring reliable circuit protection.

Applications

• Industrial motor protection circuits.
• Power distribution and control panels.
• Heavy-duty electrical installations requiring gM type fuse protection.
• AC and DC circuit protection in manufacturing plants.
• Renewable energy systems and battery protection.
