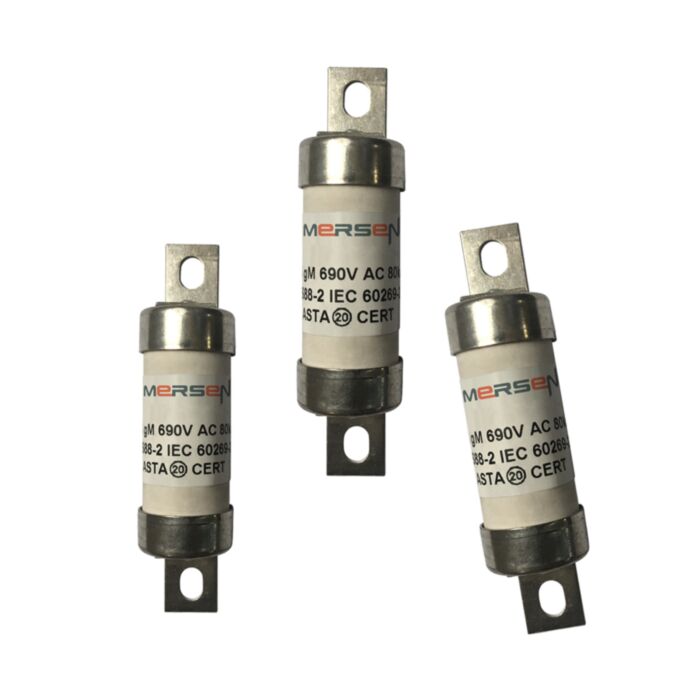

MERSEN FUSE BTIA69V32M36 A3 BTIA69V32M36

Why Choose the BS88 gM Type A2 32M36A BTIA Offset Tag Fuse-Link?

Engineered to British Standard IEC BS88, the gM Type A2 fuse-link delivers consistent protection for both motor and general circuit applications operating up to 690VAC or 460VDC. This model provides a reliable 32M36A current rating with rapid fault interruption and high breaking capacity.

The offset tag design ensures secure, straightforward installation and compatibility with standard industrial fuse holders. Ideal for demanding environments, the BTIA69V32M36 fuse-link supports enhanced operational safety and compliance with rigorous electrical standards.

Technical Specifications

• Item number: A1019268
• Catalogue No: BTIA69V32M36
• Description: British Standard fuse-link IEC BS88 gM Type A2 690VAC 460VDC 32M36A BTIA Offset Tag
• EAN/UPC Code: 3605340515527
• Rated voltage AC IEC: 690 V
• Rated voltage DC IEC: 460 V
• In M Ich: 32M36 A
• RoHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: gM
• Fuse Size: A2
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 4500 A²s
• Melting I2t: 700 A²s
• AC Max I.R./Breaking Capacity: I1: 80 kA
• Max. Rated Breaking Capacity DC: 40 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Offset Tag
• Product Diameter: 21.9 mm
• Product Width: 23.5 mm
• Product Length: 86 mm
• Sell Pack Quantity: 10 EA
• Sell Pack Weight: 0.56 kg
• Sell Pack Width: 94 mm
• Sell Pack Length: 110 mm
• Sell Pack Height: 49 mm
• Product group: Low Voltage IEC Fuses
• Body/Insulating Material: Ceramic
• Product Weight: 0.056 kg
• Power Dissipation at Rated Current Value: 3.4 W

Product Code: BTIA69V32M36

Key Benefits

• Complies with IEC BS88 standards ensuring reliable performance.
• High breaking capacity (80 kA AC, 40 kA DC) for superior fault interruption.
• Offset tag terminals allow secure and easy installation.
• Ceramic body offers excellent insulation and durability.
• Suitable for both AC and DC applications up to 690VAC / 460VDC.
• RoHS compliant for environmental safety.

Compatibility

The BTIA69V32M36 fuse-link is compatible with standard industrial fuse holders designed for A2 size fuses and bolted mounting. Its offset tag connection ensures it fits securely in existing systems requiring IEC BS88 gM Type A2 fuse-links, suitable for motor and general circuit protection.

Applications

• Protection of motors and motor circuits.
• General industrial electrical circuit protection.
• Use in control panels and distribution boards.
• Suitable for machinery and equipment requiring high breaking capacity fuses.
• Applications demanding compliance with British and IEC fuse standards.
