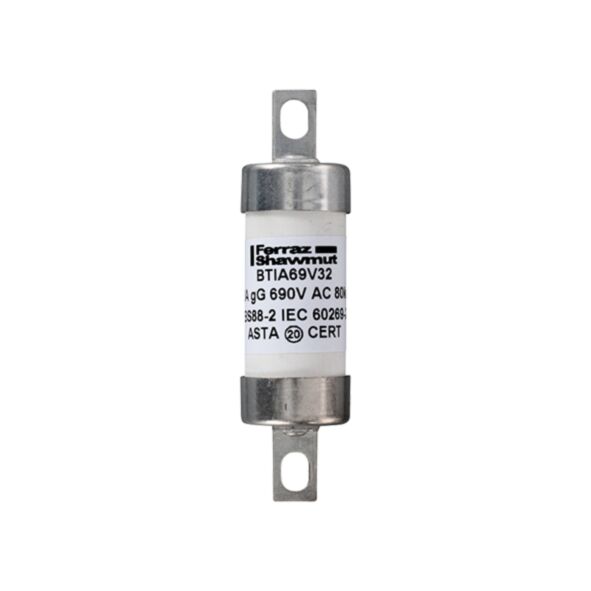

MERSEN FUSE BTIA69V32 A2 BTIA69V32
MPN: P1019258
Alt. SKU: BTIA69V32
Special Price
£4.39
£3.66
Regular Price
£12.56
MERSEN FUSE BTIA69V32 A2 BTIA69V32 is available to buy in increments of 10
Why Choose the BS88 gM Type A2 690VAC 460VDC 32M36A BTIA Offset Tag Fuse-Link?
The BTIA69V32M36 fuse-link delivers robust circuit protection, combining BS88 gM standards with a high interrupting capacity for both AC (690V) and DC (460V) environments. Its offset tag design ensures secure installation and reliable connectivity in industrial applications.
Engineered for consistent performance, this fuse-link supports current ratings up to 36A, making it ideal for safeguarding critical equipment against overloads and short circuits. Choose BTIA69V32 for dependable, compliant protection in demanding electrical systems.
Product Code: BTIA69V32
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC for maximum safety.
- Compliant with BS88 gM standards ensuring reliable performance.
- Offset tag terminal design for secure and easy installation.
- Ceramic body for enhanced durability and heat resistance.
- RoHS compliant, supporting environmentally responsible installations.
- Suitable for both AC and DC applications up to 690 V and 460 V respectively.
Compatibility
This fuse-link is compatible with fuse holders and switchgear designed for BS88 gM type A2 fuse sizes. It integrates seamlessly into industrial low voltage electrical systems requiring bolted mounting and offset tag connections.
Applications
- Protection of industrial motor circuits and control panels.
- Overload and short-circuit protection in power distribution systems.
- Use in renewable energy installations requiring DC protection.
- Safeguarding sensitive electronic equipment in manufacturing plants.
- General low voltage electrical system protection in commercial and industrial environments.
Technical Specifications
- Item number: A1019268
- Catalogue No: BTIA69V32M36
- Description: British Standard fuse-link IEC BS88 gM Type A2 690VAC 460VDC 32M36A BTIA Offset Tag
- EAN/UPC Code: 3605340515527
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 32M36 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 4500 A²s
- Melting I2t: 700 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21.9 mm
- Product Width: 23.5 mm
- Product Length: 86 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.56 kg
- Sell Pack Width: 94 mm
- Sell Pack Length: 110 mm
- Sell Pack Height: 49 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.056 kg
- Power Dissipation at Rated Current Value: 3.4 W
Frequently Asked Questions
What is the maximum voltage rating for this fuse-link?
The BTIA69V32 fuse-link is rated for up to 690 V AC and 460 V DC, suitable for a wide range of industrial applications.
Is this fuse-link RoHS compliant?
Yes, the product is RoHS compliant, ensuring it meets environmental and safety standards.
What type of mounting does this fuse-link require?
This fuse-link is designed for bolted mounting, providing secure and reliable installation.
Can this fuse-link be used in DC circuits?
Yes, it is suitable for both AC and DC circuits, with a maximum DC breaking capacity of 40 kA.
What is the fuse size and characteristic?
The fuse size is A2 with a gM speed/characteristic, suitable for general purpose protection.
Common Search Terms
BS88 fuse-link, gM fuse 690V, 460VDC fuse, A2 fuse size, offset tag fuse, industrial fuse-link, high breaking capacity fuse, ceramic body fuse, bolted mounting fuse, RoHS compliant fuse
| Manufacturer Part Number | P1019258 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340516968 |
| Height | 86mm |
| Width | 23.5mm |
| Depth | 21.9mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIA69V32 |
