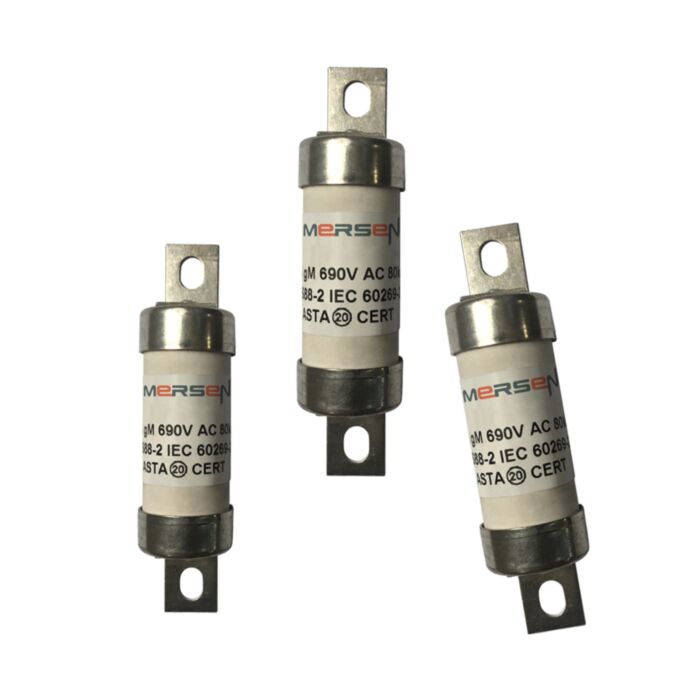

MERSEN FUSE BTIA69V20M32 A2 BTIA69V20M32
MPN: R1019260
Alt. SKU: BTIA69V20M32
Special Price
£4.70
£3.92
Regular Price
£13.44
MERSEN FUSE BTIA69V20M32 A2 BTIA69V20M32 is available to buy in increments of 10
Why Choose the BS88 gM Type A2 690VAC 460VDC 20M32A BTIA Offset Tag BTIA69V20M32?
Engineered for dependable protection in demanding industrial environments, the BTIA69V20M32 fuse-link complies with IEC and BS88 gM standards, supporting up to 690VAC and 460VDC. Its Type A2 design and 20M32A rating ensure reliable circuit isolation and fast response to faults, optimising system safety and uptime.
Features include a durable offset tag configuration for straightforward installation and secure connectivity. Trusted for critical applications, this fuse-link is ideal for safeguarding power distribution units, control panels, and heavy machinery, meeting stringent British and international electrical standards.
Technical Specifications
- Item number: R1019260
- Catalogue No: BTIA69V20M32
- Description: British Standard fuse-link IEC BS88 gM Type A2 690VAC 460VDC 20M32A BTIA Offset Tag
- EAN/UPC Code: 3605340517033
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 20M32 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 3900 A²s
- Melting I2t: 670 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21.9 mm
- Product Width: 23.5 mm
- Product Length: 86 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.56 kg
- Sell Pack Width: 94 mm
- Sell Pack Length: 110 mm
- Sell Pack Height: 49 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.056 kg
- Power Dissipation at Rated Current Value: 1.8 W
Product Code: BTIA69V20M32
Key Benefits
- Complies with IEC and BS88 gM standards for assured safety and reliability.
- Supports high voltages up to 690VAC and 460VDC for versatile industrial use.
- Fast-acting Type A2 fuse characteristic ensures rapid fault clearance.
- Durable ceramic body and tin-plated copper offset tag terminals for long service life.
- High breaking capacity: 80 kA AC and 40 kA DC for robust protection.
- RoHS compliant, meeting environmental and safety regulations.
- Compact dimensions suitable for bolted mounting in control panels and switchgear.
Compatibility
This fuse-link is compatible with industrial power distribution units, control panels, switchgear assemblies, and heavy machinery requiring BS88 gM Type A2 fuse protection. Its offset tag terminals allow easy integration with bolted mounting systems designed for A2 fuse sizes.
Applications
- Protection of industrial motor circuits and drives.
- Safeguarding power distribution boards and control panels.
- Use in DC and AC circuits within manufacturing plants.
- Heavy machinery electrical protection in factories and processing plants.
- Renewable energy systems requiring high breaking capacity fuses.
Frequently Asked Questions
What does the gM speed/characteristic mean?
The gM characteristic indicates a general-purpose fuse with a medium speed, suitable for protecting cables and motors against overloads and short circuits.
Can this fuse be used in both AC and DC circuits?
Yes, the BTIA69V20M32 is rated for both AC up to 690V and DC up to 460V, making it versatile for various industrial applications.
What is the significance of the offset tag terminal type?
The offset tag terminals provide secure and easy bolted connections, ensuring reliable electrical contact and simple installation.
Is this fuse RoHS compliant?
Yes, it meets RoHS requirements, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse-link, IEC fuse A2 20M32A, 690VAC fuse, 460VDC fuse, gM type fuse, industrial fuse-link, offset tag fuse, ceramic fuse 20M32A, bolted fuse terminal, high breaking capacity fuse
| Manufacturer Part Number | R1019260 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340517033 |
| Height | 86mm |
| Width | 23.5mm |
| Depth | 21.9mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIA69V20M32 |
