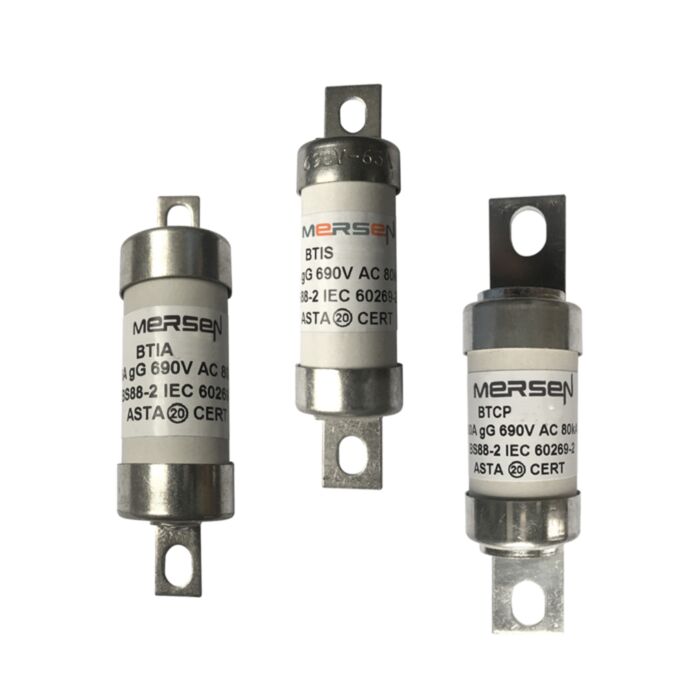

MERSEN FUSE BTIA69V2 A2 BTIA69V2
MPN: G1019251
Alt. SKU: BTIA69V2
Special Price
£4.26
£3.55
Regular Price
£12.17
MERSEN FUSE BTIA69V2 A2 BTIA69V2 is available to buy in increments of 10
Why Choose the BS88 gM Type A2 690VAC 460VDC 25M32A BTIA Offset Tag Fuse-Link?
This BS88 gM Type A2 fuse-link is engineered for high-performance circuit protection in demanding industrial applications, supporting up to 690VAC and 460VDC with a 25M32A rating. Fully compliant with IEC and British Standards, it ensures consistent, reliable operation in both motor and general purpose circuits.
The offset tag BTIA configuration enables straightforward retrofit or new installations, providing superior electrical contact and secure mounting. Choose this fuse-link for assured circuit integrity, safety, and long service life in critical environments.
Product Code: BTIA69V25M32
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC for superior circuit protection.
- Dual voltage rating supports both AC (690 V) and DC (460 V) applications.
- Robust ceramic body ensures durability and heat resistance.
- Offset tag terminal design allows easy installation and secure connections.
- Complies with IEC and British Standards for reliable performance.
- Low power dissipation of 2.3 W at rated current enhances energy efficiency.
Compatibility
This fuse-link is compatible with a wide range of industrial low voltage electrical systems requiring BS88 gM Type A2 fuses. It is suitable for use in motor circuits, control panels, and general-purpose protection where bolted mounting and offset tag terminals are standard.
Applications
- Industrial motor protection circuits
- Control and distribution panels
- General purpose electrical circuit protection
- Heavy machinery and equipment requiring high breaking capacity
- Retrofit and new installation projects in industrial environments
Technical Specifications
- Item number: C1019753
- Catalogue No: BTIA69V25M32
- Description: British Standard fuse-link IEC BS88 gM Type A2 690VAC 460VDC 25M32A BTIA Offset Tag
- EAN/UPC Code: 3605340517408
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 25M32 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 3900 A²s
- Melting I2t: 670 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21.9 mm
- Product Width: 23.5 mm
- Product Length: 86 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.56 kg
- Sell Pack Width: 94 mm
- Sell Pack Length: 110 mm
- Sell Pack Height: 49 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.056 kg
- Power Dissipation at Rated Current Value: 2.3 W
Frequently Asked Questions
What does the gM characteristic mean for this fuse?
The gM characteristic indicates that the fuse is a general purpose motor protection fuse, suitable for protecting motor circuits and providing high breaking capacity for both overload and short-circuit conditions.
Can this fuse be used in DC circuits?
Yes, this fuse is rated for both AC (690 V) and DC (460 V) applications, making it suitable for DC circuit protection within its voltage and current ratings.
What type of mounting does this fuse require?
This fuse-link uses a bolted mounting system with offset tag terminals for secure and reliable installation.
Is this fuse RoHS compliant?
Yes, the fuse is RoHS compliant, ensuring it meets environmental and safety standards for hazardous substances.
Common Search Terms
BS88 fuse, gM type fuse, 690V fuse-link, 460VDC fuse, 25M32A fuse, offset tag fuse, industrial fuse-link, ceramic fuse, bolted mounting fuse, IEC fuse-link
| Manufacturer Part Number | G1019251 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515800 |
| Height | 86mm |
| Width | 23.5mm |
| Depth | 21.9mm |
| HS Code | 85361010 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIA69V2 |
