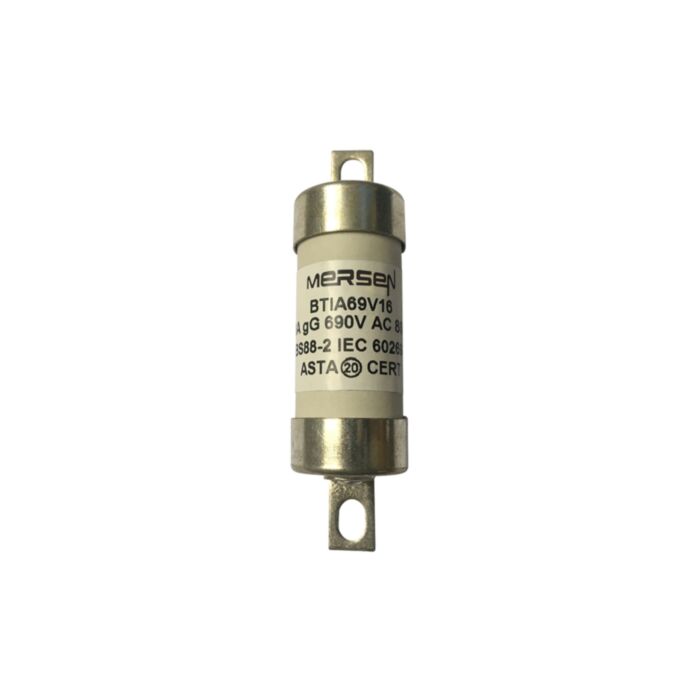

MERSEN FUSE BTIA69V16 A2 BTIA69V16
MPN: L1019255
Alt. SKU: BTIA69V16
Special Price
£4.45
£3.71
Regular Price
£12.72
MERSEN FUSE BTIA69V16 A2 BTIA69V16 is available to buy in increments of 10
Why Choose the BS88 gM Type A2 16M20A Fuse-Link (BTIA69V16)?
This offset tag fuse-link is designed to BS88 gM standards, ensuring reliable performance in both general and motor protection applications. Rated for up to 690VAC and 460VDC, it offers robust circuit protection in demanding low voltage installations.
The BTIA69V16 provides precise fault current interruption and stable operation, making it ideal for industrial control panels and switchgear. Its durable construction and proven compliance allow seamless integration into BS and IEC-based systems.
Product Code: BTIA69V16
Key Benefits
- High breaking capacity with 80 kA AC and 40 kA DC ratings for enhanced safety.
- Dual voltage rating supports both AC (690 V) and DC (460 V) applications.
- Robust ceramic body ensures durability and reliable insulation.
- Offset tag terminals with tin-plated copper for secure and corrosion-resistant connections.
- Compliant with BS88 gM standards for general and motor protection.
- Compact size (A2 fuse size) fits standard low voltage IEC fuse holders.
- Low power dissipation at rated current (1.4 W) for energy efficiency.
Compatibility
The BTIA69V16 fuse-link is compatible with a wide range of industrial control panels, switchgear assemblies, and distribution boards designed to BS88 and IEC standards. Its A2 fuse size and offset tag mounting make it suitable for bolted connections in low voltage electrical systems requiring gM type fuse-links.
Applications
- Motor protection circuits in industrial machinery.
- General purpose circuit protection in low voltage installations.
- Switchgear and control panel assemblies.
- Power distribution units requiring high breaking capacity fuses.
- Renewable energy systems with DC and AC components.
Technical Specifications
- Item number: B1019752
- Catalogue No: BTIA69V16M20
- Description: British Standard fuse-link IEC BS88 gM Type A2 690VAC 460VDC 16M20A BTIA Offset Tag
- EAN/UPC Code: 3605340517392
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 16M20 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 1450 A²s
- Melting I2t: 250 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21.9 mm
- Product Width: 23.5 mm
- Product Length: 86 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.56 kg
- Sell Pack Width: 94 mm
- Sell Pack Length: 110 mm
- Sell Pack Height: 49 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.056 kg
- Power Dissipation at Rated Current Value: 1.4 W
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse is a general purpose motor protection fuse, capable of interrupting both overload and short-circuit currents in motor circuits.
Can this fuse be used for both AC and DC applications?
Yes, the BTIA69V16 is rated for both AC (690 V) and DC (460 V) voltages, making it suitable for a variety of electrical systems.
What type of mounting does this fuse-link require?
This fuse-link uses bolted mounting with offset tag terminals for secure electrical connections.
Is the fuse RoHS compliant?
Yes, the BTIA69V16 complies with RoHS standards, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse-link, gM type fuse, A2 fuse size, 16M20A fuse, 690VAC fuse, 460VDC fuse, offset tag fuse, industrial fuse-link, motor protection fuse, low voltage fuse, IEC fuse-link, bolted fuse terminal
| Manufacturer Part Number | L1019255 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515992 |
| Height | 86mm |
| Width | 23.5mm |
| Depth | 21.9mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIA69V16 |
