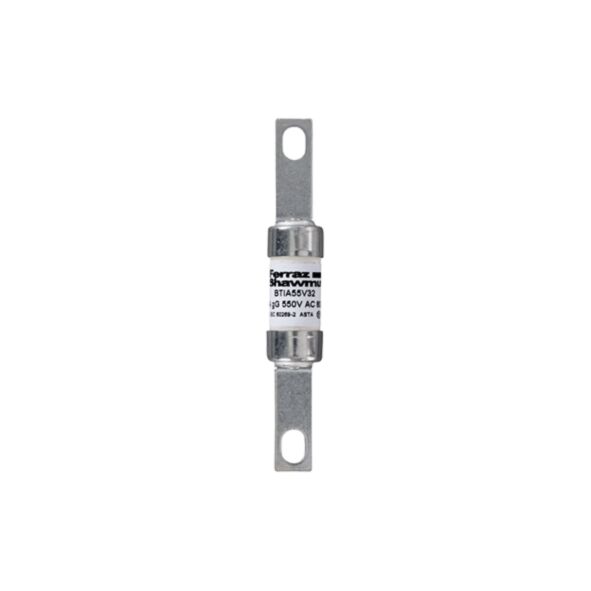

MERSEN FUSE BTIA55V32 A2C BTIA55V32
MPN: A1019245
Alt. SKU: BTIA55V32
Special Price
£3.00
£2.50
Regular Price
£8.57
MERSEN FUSE BTIA55V32 A2C BTIA55V32 is available to buy in increments of 10
Why Choose the BS88 gG Type A2 550VAC 250VDC 32A BTIA Offset Tag BTIA55V32?
The BTIA55V32 fuse-link complies with IEC BS88 and gG classifications, delivering reliable circuit protection in industrial and commercial power systems up to 550VAC and 250VDC. Its 32A rating makes it ideal for safeguarding cables and electrical components against overloads and short circuits.
Featuring robust offset tag terminals for secure installation and high fault current withstand capability, the BTIA55V32 ensures dependable performance and extended service life in demanding applications. Choose this fuse-link for assured compliance, safety, and operational continuity.
Product Code: BTIA55V32
Key Benefits
- Complies with IEC BS88 and gG standards for guaranteed safety and reliability.
- High breaking capacity of 80 kA AC and 40 kA DC for superior fault protection.
- Offset tag terminals ensure secure and easy bolted mounting.
- Ceramic body provides excellent insulation and thermal stability.
- Suitable for both AC and DC circuits up to 550VAC and 250VDC.
- Compact dimensions (14.5 mm diameter, 86 mm length) fit standard fuse holders.
Compatibility
The BTIA55V32 is compatible with standard BS88 fuse holders designed for A2 size fuse-links. It is suitable for integration in industrial switchgear, control panels, and electrical distribution systems requiring gG type fuse protection at 32A ratings.
Applications
- Industrial motor protection circuits
- Power distribution boards and switchgear
- Control and automation panels
- Overload and short circuit protection in commercial electrical installations
- Renewable energy system protection
Technical Specifications
- Item number: A1019245
- Catalogue No: BTIA55V32
- Description: British Standard fuse-link IEC BS88 gG Type A2 550VAC 250VDC 32A BTIA Offset Tag
- EAN/UPC Code: 3605340515510
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 32 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 3350 A²s
- Melting I2t: 670 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 14.5 mm
- Product Length: 86 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.2 kg
- Sell Pack Width: 80 mm
- Sell Pack Length: 90 mm
- Sell Pack Height: 35 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.02 kg
- Power Dissipation at Rated Current Value: 2.9 W
Frequently Asked Questions
What is the difference between gG and aM fuse characteristics?
gG fuses provide full-range protection against overloads and short circuits, suitable for general applications. aM fuses are partial-range, designed specifically for motor circuit protection against short circuits only.
Can this fuse be used in DC circuits?
Yes, the BTIA55V32 is rated for use in both AC (up to 550V) and DC (up to 250V) circuits, providing versatile protection.
What type of mounting is required for this fuse-link?
The fuse-link uses bolted mounting with offset tag terminals, ensuring secure and reliable installation in compatible fuse holders.
Is the BTIA55V32 RoHS compliant?
Yes, this fuse-link complies with RoHS regulations, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse, gG fuse-link, 32A fuse, 550VAC fuse, 250VDC fuse, offset tag fuse, industrial fuse-link, ceramic fuse, bolted fuse, IEC fuse A2 size
| Manufacturer Part Number | A1019245 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515510 |
| Height | 86mm |
| Width | 14.5mm |
| Depth | 14.5mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIA55V32 |
