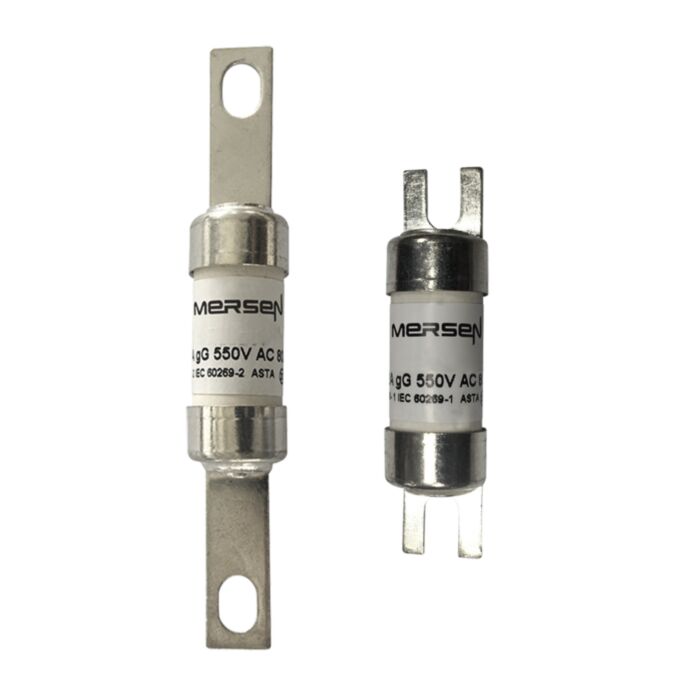

MERSEN FUSE BTIA55V20 A2C BTIA55V20
MPN: Y1019243
Alt. SKU: BTIA55V20
Special Price
£3.00
£2.50
Regular Price
£8.57
MERSEN FUSE BTIA55V20 A2C BTIA55V20 is available to buy in increments of 10
Why Choose the BS88 gG Type A2 550VAC 250VDC 20M25A BTIA Offset Tag Fuse-Link?
This British Standard fuse-link is designed to IEC BS88 gG specifications, ensuring dependable protection for low and medium voltage industrial power distribution. Rated at 550VAC and 250VDC with a 20M25A current capacity, it provides reliable circuit isolation and fault interruption in demanding environments.
The offset tag design of the BTIA55V20M25 offers straightforward installation and secure mechanical fitment. Ideally suited for critical applications, this robust fuse-link delivers consistent performance and compliance with rigorous safety standards.
Product Code: BTIA55V20M25
Key Benefits
- Complies with IEC BS88 gG standards for reliable protection
- High breaking capacity: 80 kA AC and 40 kA DC
- Offset tag terminals for easy and secure installation
- Ceramic body ensures durability and high temperature resistance
- Suitable for both AC and DC applications
- Compact size with 14.5 mm diameter and 86 mm length
- RoHS compliant, environmentally friendly design
Compatibility
This fuse-link is compatible with industrial low voltage IEC fuse holders designed for A2 size fuses. It fits securely into bolted mounting systems and is suitable for use in power distribution panels requiring BS88 gG type fuse protection at rated voltages up to 550VAC and 250VDC.
Applications
- Industrial power distribution systems
- Motor protection circuits
- Control panels and switchgear
- Renewable energy installations
- General electrical equipment protection
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse-link provides full-range protection for cables and general-purpose applications, capable of interrupting both overload and short-circuit currents.
Can this fuse be used in DC circuits?
Yes, this fuse-link is rated for both AC (550 V) and DC (250 V) applications, making it versatile for various industrial uses.
What is the significance of the offset tag terminal?
The offset tag terminal design allows for easier installation and a secure mechanical connection in bolted mounting fuse holders.
Is this fuse RoHS compliant?
Yes, the BTIA55V20M25 fuse-link is RoHS compliant, ensuring it meets environmental and safety standards.
Common Search Terms
BS88 fuse, IEC gG fuse-link, 550VAC fuse, 250VDC fuse, 20M25A fuse, offset tag fuse, industrial fuse-link, ceramic body fuse, bolted mounting fuse, low voltage IEC fuse
| Manufacturer Part Number | Y1019243 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340517255 |
| Height | 86mm |
| Width | 14.5mm |
| Depth | 14.5mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIA55V20 |
