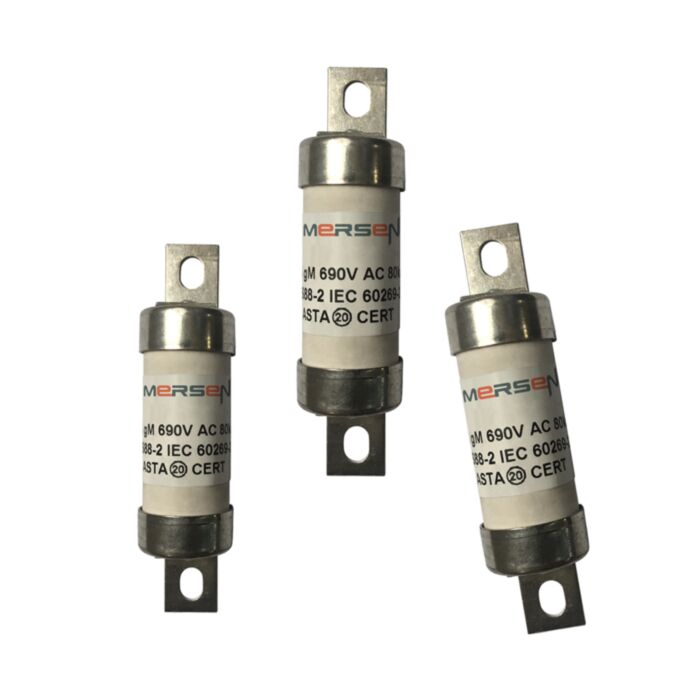

MERSEN FUSE BTCP69V32M40 A4C BTCP69V32M40
MPN: L1019278
Alt. SKU: BTCP69V32M40
Special Price
£11.28
£9.40
Regular Price
£32.24
MERSEN FUSE BTCP69V32M40 A4C BTCP69V32M40 is available to buy in increments of 5
Why Choose the BS88 gM Type A4 32M40A Offset Tag Fuse-Link?
The BS88 gM Type A4 Fuse-Link (BTCP69V32M40) is engineered for reliable circuit protection in demanding industrial applications, offering a robust solution rated at 690VAC and 460VDC for both motor and general protection. Its gM characteristic ensures effective short-circuit and overload response while minimising nuisance tripping in mixed-load environments.
Featuring secure BTCP offset tags for straightforward installation and dependable connectivity, this 32M40A fuse-link complies fully with IEC and BS88 standards. Choose the BTCP69V32M40 for assured safety, extended equipment protection, and proven performance under high fault conditions.
Technical Specifications
- Item number: L1019278
- Catalogue No: BTCP69V32M40
- Description: British Standard fuse-link IEC BS88 gM Type A4 690VAC 460VDC 32M40A BTCP Offset Tag
- EAN/UPC Code: 3605340516005
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 32M40 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 7400 A²s
- Melting I2t: 1300 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21 mm
- Product Width: 22.3 mm
- Product Length: 109 mm
- Sell Pack Quantity: 5 EA
- Sell Pack Weight: 0.41 kg
- Sell Pack Width: 117 mm
- Sell Pack Length: 218 mm
- Sell Pack Height: 38 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.082 kg
- Power Dissipation at Rated Current Value: 3.2 W
Product Code: BTCP69V32M40
Key Benefits
- High breaking capacity ensures safety under fault conditions up to 80 kA AC and 40 kA DC.
- gM characteristic provides comprehensive protection for motors and general circuits.
- Offset tag terminals with tin-plated copper ensure secure and reliable connections.
- Ceramic body offers excellent insulation and thermal stability.
- Compliance with IEC and BS88 standards guarantees quality and compatibility.
- RoHS compliant for environmentally responsible use.
Compatibility
This fuse-link is compatible with standard BS88 Type A4 fuse holders and switchgear designed for IEC low voltage fuses. It is suitable for use in AC and DC circuits requiring gM characteristic protection, making it ideal for industrial motor circuits and general purpose applications.
Applications
- Industrial motor protection circuits
- General electrical circuit protection in industrial settings
- Switchgear and control panels requiring high breaking capacity fuses
- AC and DC power distribution systems
- Equipment requiring reliable overload and short-circuit protection
Frequently Asked Questions
What does the gM characteristic mean for this fuse-link?
The gM characteristic indicates that the fuse-link provides full-range protection for motor circuits, covering both overload and short-circuit conditions, making it suitable for motor and general applications.
Can this fuse-link be used in DC applications?
Yes, the BTCP69V32M40 is rated for up to 460 VDC and is suitable for DC circuit protection within this voltage rating.
What type of mounting does this fuse-link require?
This fuse-link uses bolted mounting with offset tag terminals for secure and easy installation.
Is this fuse RoHS compliant?
Yes, the BTCP69V32M40 complies with RoHS directives ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse, gM fuse-link, Type A4 fuse, 32M40A fuse, offset tag fuse, industrial fuse-link, IEC fuse, motor protection fuse, high breaking capacity fuse, bolted fuse terminal
| Manufacturer Part Number | L1019278 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 3605340516005 |
| Manufacturer | Mersen |
| Alternative Product SKU | BTCP69V32M40 |
