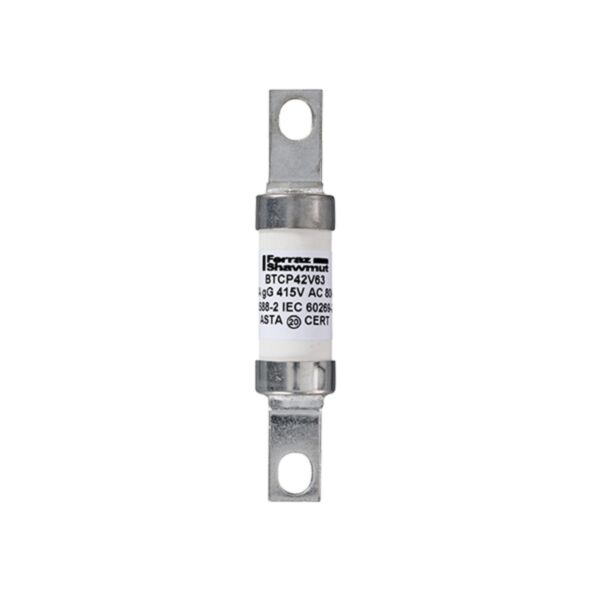

MERSEN FUSE BTCP42V63 63A4C BTCP42V63
MPN: T1045298
Alt. SKU: BTCP42V63
Special Price
£8.15
£6.79
Regular Price
£23.28
MERSEN FUSE BTCP42V63 63A4C BTCP42V63 is available to buy in increments of 10
Why Choose the BS88 gG Type A4 63A Fuse-Link (BTCP42V63)?
Engineered for reliable circuit protection, the BS88 gG Type A4 63A fuse-link (BTCP42V63) complies with IEC standards and is rated for up to 415VAC or 240VDC. Its offset tag design ensures secure fitment and compatibility within a wide range of industrial applications.
With superior breaking capacity, consistent performance, and robust construction, this fuse-link safeguards valuable equipment against overloads and short-circuits. Ideal for engineers requiring dependable, standards-compliant protection in demanding environments.
Product Code: BTCP42V63
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC for superior protection.
- Complies with IEC BS88 standards ensuring reliable and consistent performance.
- Offset tag terminal design for secure and easy installation.
- Ceramic body provides excellent insulation and durability.
- Suitable for both AC and DC applications up to 415 V and 240 V respectively.
- RoHS compliant, meeting environmental and safety regulations.
Compatibility
This fuse-link is compatible with industrial fuse holders designed for BS88 gG Type A4 fuses with offset tag terminals. It fits securely in bolted mounting arrangements and is suitable for use in low voltage IEC fuse systems requiring 63A protection.
Applications
- Protection of electrical circuits in industrial machinery and equipment.
- Use in control panels and distribution boards requiring reliable fuse protection.
- Suitable for both AC and DC power systems in manufacturing plants.
- Ideal for safeguarding motors, transformers, and other critical electrical components.
Technical Specifications
- Item number: T1045298
- Catalogue No: BTCP42V63
- Description: British Standard fuse-link IEC BS88 gG Type A4 415VAC 240VDC 63A BTCP Offset Tag
- EAN/UPC Code: 3605340564457
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 63 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 13900 A²s
- Melting I2t: 4000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21 mm
- Product Width: 24.5 mm
- Product Length: 110 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.83 kg
- Sell Pack Width: 120 mm
- Sell Pack Length: 230 mm
- Sell Pack Height: 40 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.083 kg
- Power Dissipation at Rated Current Value: 4.7 W
Frequently Asked Questions
What does the gG characteristic mean for this fuse?
The gG characteristic indicates that the fuse provides full range protection for both overloads and short-circuits, suitable for general purpose applications.
Can this fuse-link be used in DC circuits?
Yes, the BTCP42V63 fuse-link is rated for use in DC circuits up to 240 V, making it versatile for both AC and DC applications.
What is the significance of the offset tag terminal?
The offset tag terminal design ensures a secure and reliable connection in compatible fuse holders, reducing the risk of poor contact.
Is this fuse RoHS compliant?
Yes, this fuse-link meets RoHS compliance, ensuring it adheres to environmental and safety standards.
Common Search Terms
BS88 fuse, gG fuse 63A, IEC fuse-link, offset tag fuse, industrial circuit protection, 415V fuse, 240V DC fuse, ceramic fuse-link, bolted mounting fuse, low voltage fuse
| Manufacturer Part Number | T1045298 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340564457 |
| Height | 110mm |
| Width | 24.5mm |
| Depth | 21mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTCP42V63 |
