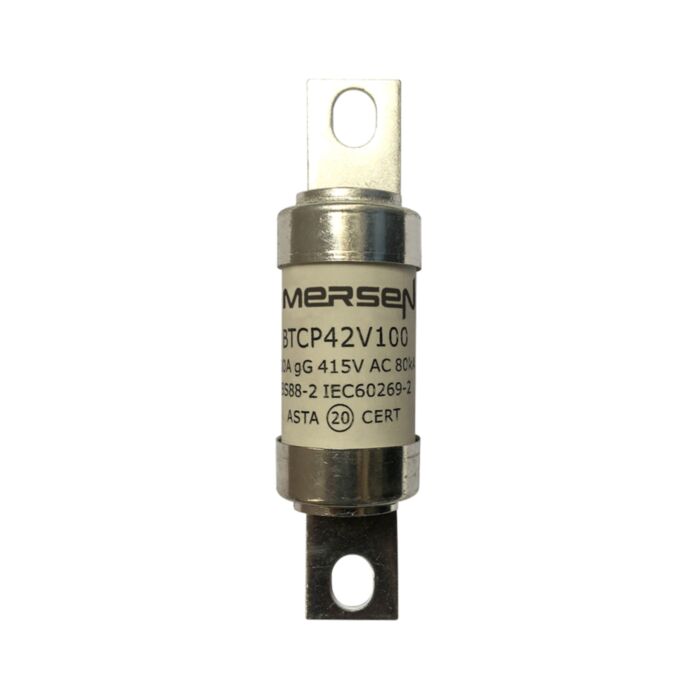

MERSEN FUSE BTCP42V100 100A4C BTCP42V100.

Why Choose the BS88 gG Type A4 100A BTCP Offset Tag Fuse-Link?

The BTCP42V100 is a high-integrity BS88 gG Type A4 fuse-link rated at 100A, designed for reliable protection of industrial and commercial electrical circuits. It is fully compliant with IEC and British Standards, ensuring maximum safety and consistent performance for both AC (415VAC) and DC (240VDC) applications.

Featuring robust BTCP offset tags for secure installation and dependable connectivity, this fuse-link offers excellent fault current management, minimising downtime and safeguarding critical equipment. Ideal for demanding environments where conformity and proven durability are essential.

Product Code: BTCP42V100

Key Benefits

• Reliable protection for industrial and commercial electrical circuits.
• Complies with IEC and British Standards for safety and performance.
• Suitable for both AC (415VAC) and DC (240VDC) applications.
• Robust BTCP offset tag terminals for secure and dependable connections.
• High breaking capacity minimises equipment damage and downtime.
• Ceramic body for enhanced durability and heat resistance.
• RoHS compliant, ensuring environmental safety.

Compatibility

The BTCP42V100 fuse-link is compatible with standard BS88 Type A4 fuse holders and switchgear designed for 100A ratings. It is suitable for use in low voltage IEC fuse applications requiring gG characteristic fuses, and can be integrated into both AC and DC electrical distribution systems.

Applications

• Industrial electrical distribution panels.
• Commercial building electrical protection.
• Motor and transformer protection.
• Control and switchgear assemblies.
• Renewable energy systems requiring DC protection.
• General low voltage electrical circuits requiring high breaking capacity.

Technical Specifications

• Item number: X1045301
• Catalogue No: BTCP42V100
• Description: British Standard fuse-link IEC BS88 gG Type A4 415VAC 240VDC 100A BTCP Offset Tag
• EAN/UPC Code: 3605340564471
• Rated voltage AC IEC: 415 V
• Rated voltage DC IEC: 240 V
• Ampere Rating: 100 A
• RoHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: gG
• Fuse Size: A4
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 65000 A²s
• Melting I2t: 14000 A²s
• AC Max I.R./Breaking Capacity: I1: 80 kA
• Max. Rated Breaking Capacity DC: 40 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Offset Tag
• Product Diameter: 21 mm
• Product Width: 24.5 mm
• Product Length: 110 mm
• Sell Pack Quantity: 10 EA
• Sell Pack Weight: 0.83 kg
• Sell Pack Width: 120 mm
• Sell Pack Length: 230 mm
• Sell Pack Height: 40 mm
• Product group: Low Voltage IEC Fuses
• Body/Insulating Material: Ceramic
• Product Weight: 0.083 kg
• Power Dissipation at Rated Current Value: 7.5 W
