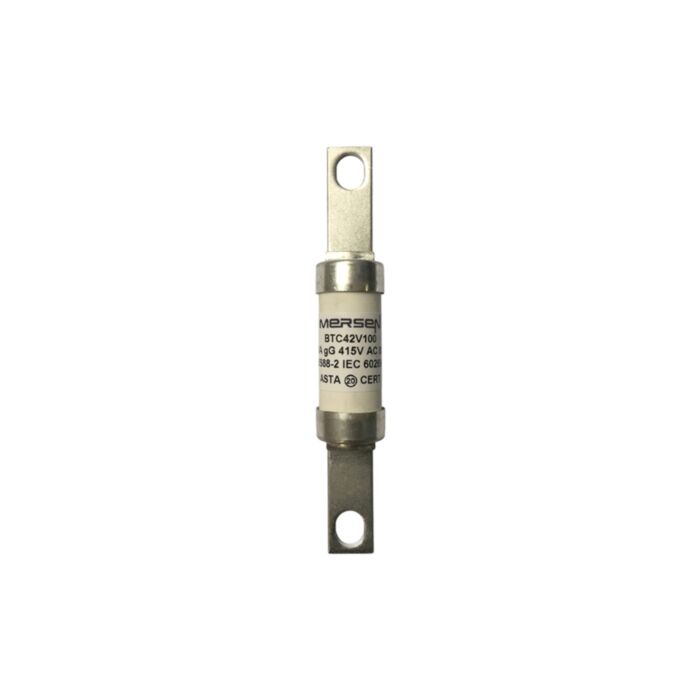

MERSEN FUSE BTC42V100 100B1C BTC42V100.
MPN: Z1045303
Alt. SKU: BTC42V100
Special Price
£9.04
£7.53
Regular Price
£25.81
MERSEN FUSE BTC42V100 100B1C BTC42V100. is available to buy in increments of 10
Why Choose the BS88 gG Type B1C 100A BTC Central Bolted Tag Fuse-Link?
The BTC42V100 fuse-link is engineered to IEC BS88 standards, offering reliable circuit protection for industrial applications rated up to 415VAC and 240VDC with a 100A current rating. Its gG characteristic ensures full-range protection against overloads and short circuits.
Featuring the robust Type B1C central bolted tag design, this fuse-link guarantees secure installation and consistent performance in demanding environments. Ideal for switchgear, control panels, and distribution systems, it delivers dependable safety and straightforward maintenance.
Product Code: BTC42V100
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- Full-range gG characteristic provides protection against both overloads and short circuits.
- Robust ceramic body ensures durability and high breaking capacity.
- Central bolted tag connection offers secure and reliable mounting.
- Suitable for both AC (415 V) and DC (240 V) applications.
- High breaking capacity (80 kA AC, 40 kA DC) for demanding industrial environments.
Compatibility
This fuse-link is compatible with switchgear, control panels, and distribution systems designed for BS88 gG Type B1C fuses. It fits fuse holders and bases that accept central bolted tag connections and is suitable for use in low voltage IEC fuse groups.
Applications
- Industrial motor protection
- Power distribution panels
- Control and automation systems
- Switchgear assemblies
- Renewable energy installations
Technical Specifications
- Item number: Z1045303
- Catalogue No: BTC42V100
- Description: British Standard fuse-link IEC BS88 gG Type B1C 415VAC 240VDC 100A BTC Central Bolted Tag
- EAN/UPC Code: 3605340564495
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 100 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: B1C
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 65000 A²s
- Melting I2t: 14000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 21 mm
- Product Length: 127 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.845 kg
- Sell Pack Width: 145 mm
- Sell Pack Length: 150 mm
- Sell Pack Height: 60 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0845 kg
- Power Dissipation at Rated Current Value: 7.5 W
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse-link provides full-range protection, meaning it protects against both overloads and short circuits.
Can this fuse-link be used in DC circuits?
Yes, the BTC42V100 is rated for use in DC circuits up to 240 V as well as AC circuits up to 415 V.
What is the breaking capacity of this fuse-link?
The fuse has a maximum breaking capacity of 80 kA for AC and 40 kA for DC applications.
Is this fuse RoHS compliant?
Yes, the BTC42V100 complies with RoHS regulations.
Common Search Terms
BS88 fuse, gG fuse-link, Type B1C fuse, central bolted tag fuse, 100A fuse-link, IEC BS88 fuse, industrial fuse-link, low voltage fuse, 415V fuse, 240V DC fuse, high breaking capacity fuse
| Manufacturer Part Number | Z1045303 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340564495 |
| Height | 127mm |
| Width | 21mm |
| Depth | 21mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTC42V100 |
