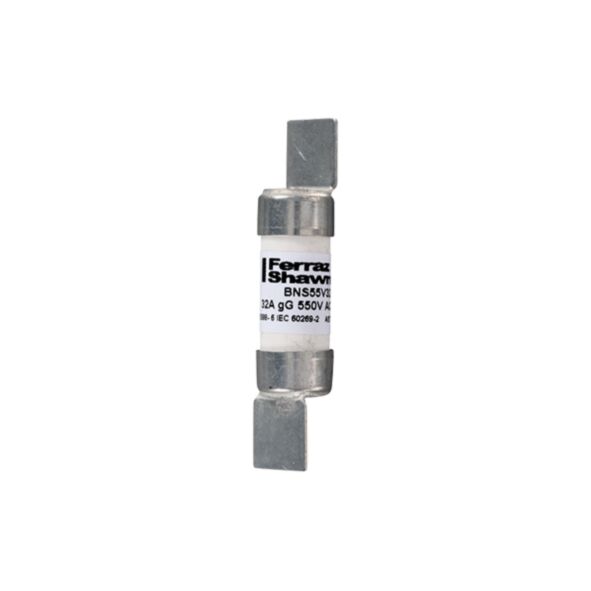

MERSEN FUSE BNS55V32 F1 BNS55V32
MPN: S1019215
Alt. SKU: BNS55V32
Special Price
£1.92
£1.60
Regular Price
£5.48
MERSEN FUSE BNS55V32 F1 BNS55V32 is available to buy in increments of 10
Why Choose the BS88 gG Type F1 550VAC 250VDC 32A BNS Offset Blade BNS55V32?
The BNS55V32 fuse-link offers robust circuit protection conforming to IEC BS88 gG standards, supporting up to 550VAC and 250VDC at 32A. Its offset blade design enables reliable, secure installation in a wide range of industrial or commercial distribution systems.
Engineered for dependable overcurrent protection, this fuse-link ensures minimal let-through energy and precise performance in harsh electrical environments, enhancing system safety, reliability, and service continuity.
Product Code: BNS55V32
Key Benefits
- High breaking capacity with 80 kA AC and 40 kA DC ratings for superior protection.
- Compliance with IEC BS88 gG standards ensures reliable and consistent performance.
- Offset blade terminal design allows secure and easy installation.
- Ceramic body provides excellent insulation and thermal stability.
- RoHS compliant, supporting environmental and safety regulations.
- Compact size (13.5 mm diameter, 61 mm length) suitable for space-constrained applications.
Compatibility
This fuse-link is compatible with standard BS88 fuse holders and switchgear designed for gG type fuses with F1 size and offset blade terminals. It is suitable for use in low voltage industrial and commercial electrical distribution systems requiring AC and DC protection up to the specified voltage and current ratings.
Applications
- Industrial motor control circuits
- Commercial electrical distribution panels
- Power supply protection in manufacturing plants
- Renewable energy systems requiring DC protection
- General-purpose overcurrent protection in low voltage systems
Technical Specifications
- Item number: S1019215
- Catalogue No: BNS55V32
- Description: British Standard fuse-link IEC BS88 gG Type F1 550VAC 250VDC 32A BNS Offset Blade
- EAN/UPC Code: 3605340517057
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 32 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: F1
- Mounting: Clip
- Clearing I2t At Rated Voltage: 3350 A²s
- Melting I2t: 670 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 13.5 mm
- Product Length: 61 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.175 kg
- Sell Pack Width: 70 mm
- Sell Pack Length: 70 mm
- Sell Pack Height: 32 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0175 kg
- Power Dissipation at Rated Current Value: 2.9 W
Frequently Asked Questions
What does the gG characteristic mean on this fuse?
The gG characteristic indicates a general purpose fuse suitable for protection of cables and equipment against overload and short-circuit currents.
Can this fuse be used for both AC and DC circuits?
Yes, the BNS55V32 fuse-link is rated for both AC (up to 550V) and DC (up to 250V) applications.
What is the significance of the offset blade terminal?
The offset blade terminal design ensures secure and reliable mounting in compatible fuse holders, reducing the risk of poor connections.
Is this fuse RoHS compliant?
Yes, the BNS55V32 is RoHS compliant, meeting environmental standards for hazardous substances.
Common Search Terms
BS88 fuse, gG fuse-link, 32A fuse, 550VAC fuse, 250VDC fuse, offset blade fuse, F1 size fuse, industrial fuse-link, low voltage fuse, ceramic fuse
| Manufacturer Part Number | S1019215 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340517057 |
| Height | 61mm |
| Width | 13.5mm |
| Depth | 13.5mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNS55V32 |
