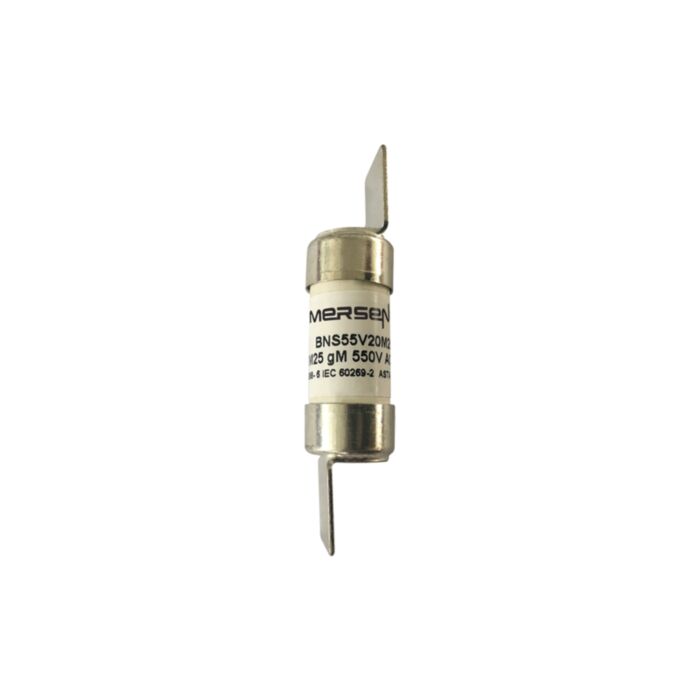

MERSEN FUSE BNS55V20M25 F1 BNS55V20M25
MPN: W1019218
Alt. SKU: BNS55V20M25
Special Price
£2.26
£1.88
Regular Price
£6.44
MERSEN FUSE BNS55V20M25 F1 BNS55V20M25 is available to buy in increments of 10
Why Choose the BS88 gM Type F1 20M25A Offset Blade Fuse-Link?
This BS88 gM Type F1 fuse-link offers reliable circuit protection with a 20M25A rating, operating at up to 550VAC and 250VDC. Designed with an offset blade configuration for easy installation, it ensures fast and effective fault clearance in demanding industrial environments.
Conforming to IEC and British Standards, this BNS55V20M25 fuse-link provides robust performance and compatibility across a range of equipment, supporting both motor and general protection applications. Ideal for safeguarding critical assets and minimising downtime.
Product Code: BNS55V20M25
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC ensures effective fault clearance.
- Offset blade design allows for easy and secure mounting with clip terminals.
- Compliance with IEC and British Standards guarantees quality and reliability.
- Ceramic body provides excellent insulation and thermal stability.
- Suitable for both motor and general circuit protection applications.
- RoHS compliant, ensuring environmental safety and sustainability.
Compatibility
This fuse-link is compatible with a wide range of low voltage IEC fuse holders and switchgear designed to accept BS88 gM Type F1 fuse-links with offset blades. It is suitable for use in industrial control panels, motor circuits, and general electrical protection systems operating up to 550VAC and 250VDC.
Applications
- Industrial motor protection circuits
- General electrical circuit protection
- Control panels and switchgear assemblies
- Power distribution units
- Machinery and equipment safeguarding
Technical Specifications
- Item number: W1019218
- Catalogue No: BNS55V20M25
- Description: British Standard fuse-link IEC BS88 gM Type F1 550VAC 250VDC 20M25A BNS Offset Blade
- EAN/UPC Code: 3605340517170
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- In M Ich: 20M25 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: F1
- Mounting: Clip
- Clearing I2t At Rated Voltage: 2100 A²s
- Melting I2t: 420 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 13.5 mm
- Product Length: 61 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.173 kg
- Sell Pack Width: 37 mm
- Sell Pack Length: 73 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0173 kg
- Power Dissipation at Rated Current Value: 1.6 W
Frequently Asked Questions
What does the gM characteristic mean for this fuse-link?
The gM characteristic indicates that the fuse-link is suitable for motor protection and general applications, providing full-range protection against overloads and short circuits.
Can this fuse-link be used in DC circuits?
Yes, this fuse-link is rated for use in DC circuits up to 250V DC as well as AC circuits up to 550V AC.
What is the significance of the offset blade design?
The offset blade terminal type allows for secure and easy installation in compatible fuse holders with clip mounting, ensuring reliable electrical connection.
Is this fuse-link RoHS compliant?
Yes, the BNS55V20M25 fuse-link is RoHS compliant, meeting environmental standards for hazardous substances.
Common Search Terms
BS88 fuse-link, gM fuse, Type F1 fuse, 20M25A fuse, offset blade fuse, IEC fuse-link, motor protection fuse, industrial fuse, ceramic fuse-link, low voltage fuse
| Manufacturer Part Number | W1019218 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340517170 |
| Height | 61mm |
| Width | 13.5mm |
| Depth | 13.5mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNS55V20M25 |
