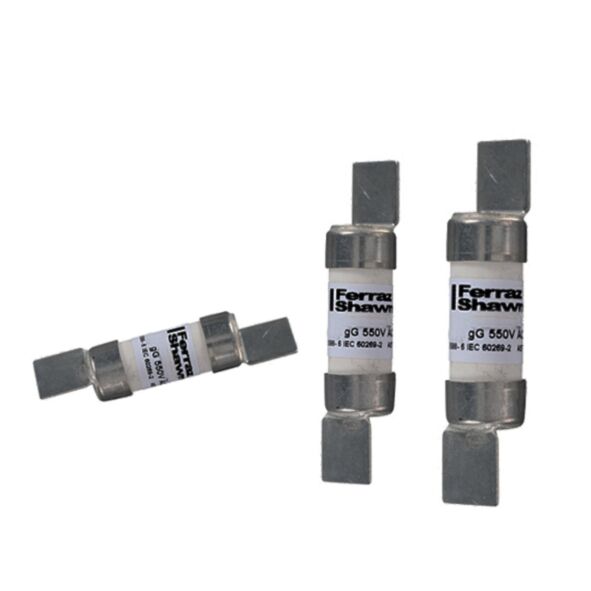

MERSEN FUSE BNS55V20 F1 BNS55V20
MPN: Q1019213
Alt. SKU: BNS55V20
Special Price
£1.72
£1.43
Regular Price
£4.91
MERSEN FUSE BNS55V20 F1 BNS55V20 is available to buy in increments of 10
Why Choose the BS88 gM Type F1 20M25A BNS Offset Blade Fuse-Link?
Engineered for dependable circuit protection, the IEC BS88 gM Type F1 fuse-link delivers robust performance at 550VAC and 250VDC, with a 20M25A rating ideally suited for a range of industrial applications including motor and transformer protection. The offset blade design ensures easy installation and secure fit within compatible fuse holders.
This BNS55V20M25 fuse-link is manufactured to strict British Standards for reliability, offering fast-acting operation with selectivity and coordination in mixed load environments. Its durable construction provides consistent response to fault currents, minimising downtime and safeguarding critical equipment.
Product Code: BNS55V20M25
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC ensures reliable protection against short circuits.
- Fast-acting gM characteristic provides selective coordination in mixed load environments.
- Offset blade terminals enable secure and easy installation in compatible fuse holders.
- Ceramic body construction offers excellent durability and heat resistance.
- RoHS compliant, meeting environmental and safety standards.
Compatibility
This fuse-link is compatible with BS88 gM Type F1 fuse holders designed for offset blade terminals, suitable for use in industrial low voltage electrical systems requiring 550VAC or 250VDC protection. It fits fuse holders that accept the F1 size and is ideal for integration with motor control and transformer protection circuits.
Applications
- Industrial motor protection circuits
- Transformer protection in low voltage systems
- General industrial machinery and equipment protection
- Power distribution panels and control gear
- Renewable energy system protection
Technical Specifications
- Item number: W1019218
- Catalogue No: BNS55V20M25
- Description: British Standard fuse-link IEC BS88 gM Type F1 550VAC 250VDC 20M25A BNS Offset Blade
- EAN/UPC Code: 3605340517170
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- In M Ich: 20M25 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: F1
- Mounting: Clip
- Clearing I2t At Rated Voltage: 2100 A²s
- Melting I2t: 420 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 13.5 mm
- Product Length: 61 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.173 kg
- Sell Pack Width: 37 mm
- Sell Pack Length: 73 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0173 kg
- Power Dissipation at Rated Current Value: 1.6 W
Frequently Asked Questions
What is the rated voltage for this fuse-link?
The BS88 gM Type F1 fuse-link is rated for 550VAC and 250VDC operation.
What does the gM speed characteristic mean?
The gM characteristic indicates a general purpose fuse suitable for motor and transformer protection with fast-acting operation and high breaking capacity.
Is this fuse-link RoHS compliant?
Yes, this fuse-link meets RoHS compliance standards.
What type of terminals does this fuse-link use?
It uses tin-plated copper offset blade terminals for secure mounting.
Can this fuse-link be used in both AC and DC circuits?
Yes, it is rated for use in both AC and DC circuits at the specified voltages.
Common Search Terms
BS88 fuse-link, Type F1 fuse, 20M25A fuse, offset blade fuse, IEC gM fuse, industrial fuse-link, motor protection fuse, transformer fuse, 550VAC fuse, 250VDC fuse, ceramic fuse-link
| Manufacturer Part Number | Q1019213 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340516982 |
| Height | 61mm |
| Width | 13.5mm |
| Depth | 13.5mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNS55V20 |
