MERSEN FUSE BNS55V16M20 F1 BNS55V16M20
MPN: V1019217
Alt. SKU: BNS55V16M20
Special Price
£2.21
£1.84
Regular Price
£6.32
MERSEN FUSE BNS55V16M20 F1 BNS55V16M20 is available to buy in increments of 10

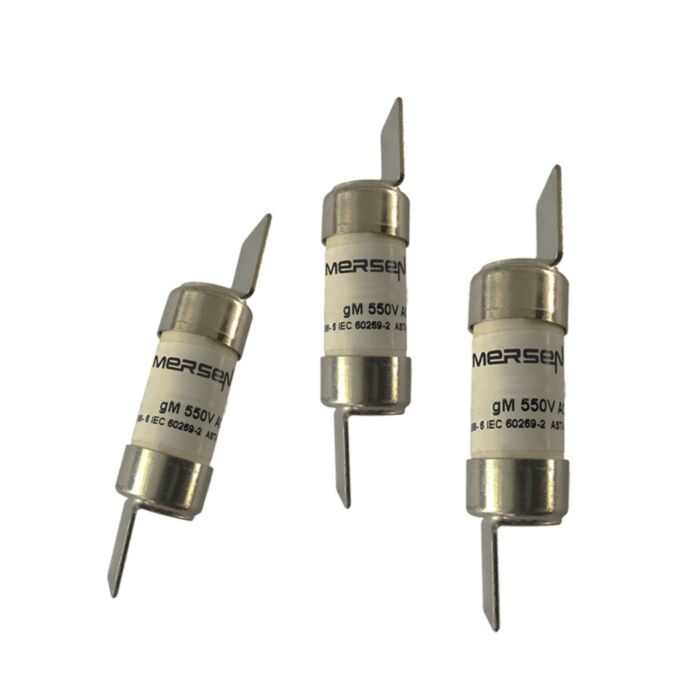

Why Choose the BS88 gM Type F1 550VAC 250VDC 16M20A BNS Offset Blade Fuse-Link (BNS55V16M20)?
Engineered to British Standard BS88 and IEC specifications, this gM Type F1 fuse-link delivers reliable circuit protection for demanding industrial and commercial applications. Designed for use at up to 550VAC or 250VDC, it provides robust short-circuit and overload safeguarding in power distribution and control systems.
The 16M20A current rating, offset blade terminals, and durable construction ensure secure installation, high rupture capacity, and long-term operational integrity, making it an ideal replacement or OEM component for panels and switchgear requiring dependable performance.
Product Code: BNS55V16M20
Key Benefits
- Complies with BS88 and IEC standards for assured quality and safety.
- High breaking capacity of 80 kA AC and 40 kA DC for superior fault protection.
- Offset blade terminals ensure secure and easy installation.
- Ceramic body provides excellent insulation and thermal stability.
- Suitable for both AC and DC applications up to 550VAC and 250VDC.
- Compact size (13.5 mm diameter, 61 mm length) fits standard fuse holders.
Compatibility
This fuse-link is compatible with standard BS88 fuse holders and switchgear designed for F1 size fuse-links. It is suitable for integration into industrial and commercial electrical panels requiring gM type fuses with offset blade terminals.
Applications
- Industrial power distribution systems
- Motor control circuits
- Commercial electrical switchgear
- Overload and short-circuit protection in control panels
- Renewable energy installations requiring DC protection
Technical Specifications
- Item number: V1019217
- Catalogue No: BNS55V16M20
- Description: British Standard fuse-link IEC BS88 gM Type F1 550VAC 250VDC 16M20A BNS Offset Blade
- EAN/UPC Code: 3605340517132
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- In M Ich: 16M20 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: F1
- Mounting: Clip
- Clearing I2t At Rated Voltage: 1250 A²s
- Melting I2t: 250 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 13.5 mm
- Product Length: 61 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.173 kg
- Sell Pack Width: 37 mm
- Sell Pack Length: 73 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0173 kg
- Power Dissipation at Rated Current Value: 1.36 W
Frequently Asked Questions
What does the gM characteristic mean for this fuse?
The gM characteristic indicates that the fuse is a general-purpose fuse suitable for protecting motor circuits and other applications requiring full-range short-circuit and overload protection.
Can this fuse be used in DC circuits?
Yes, this fuse is rated for use in DC circuits up to 250V, providing reliable protection in both AC and DC applications.
What is the significance of the offset blade terminals?
Offset blade terminals allow for secure and easy mounting in compatible fuse holders, ensuring good electrical contact and mechanical stability.
Is this fuse RoHS compliant?
Yes, the fuse complies with RoHS regulations, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse, gM type fuse, F1 fuse link, 16A 20A fuse, 550VAC fuse, 250VDC fuse, offset blade fuse, industrial fuse link, ceramic fuse, high breaking capacity fuse
| Manufacturer Part Number | V1019217 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340517132 |
| Height | 61mm |
| Width | 13.5mm |
| Depth | 13.5mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNS55V16M20 |
