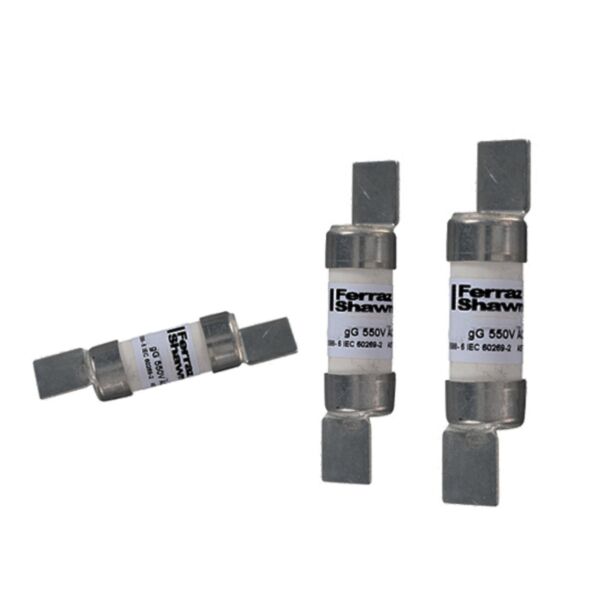

MERSEN FUSE BNS55V10 F1 BNS55V10
MPN: N1019211
Alt. SKU: BNS55V10
Special Price
£1.72
£1.43
Regular Price
£4.91
MERSEN FUSE BNS55V10 F1 BNS55V10 is available to buy in increments of 10
Why Choose the BS88 gM Type F1 10M16A Offset Blade Fuse-Link?
The BNS55V10M16 fuse-link offers reliable circuit protection with compliance to IEC and BS88 standards, ensuring dependable performance in demanding industrial applications. Rated for 550VAC and 250VDC, it provides gM characteristics for both cable and motor circuit safety, making it ideal for mixed load protection.
Featuring robust offset blade terminations and a compact F1 form factor, this 10M16A fuse-link supports straightforward installation and secure connectivity. The BNS series delivers consistent operation and extended service life, minimising downtime and maximising equipment integrity.
Technical Specifications
- Item number: T1019216
- Catalogue No: BNS55V10M16
- Description: British Standard fuse-link IEC BS88 gM Type F1 550VAC 250VDC 10M16A BNS Offset Blade
- EAN/UPC Code: 3605340517095
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- In M Ich: 10M16 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: F1
- Mounting: Clip
- Clearing I2t At Rated Voltage: 550 A²s
- Melting I2t: 120 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 13.5 mm
- Product Length: 61 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.173 kg
- Sell Pack Width: 37 mm
- Sell Pack Length: 73 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0173 kg
- Power Dissipation at Rated Current Value: 1 W
Product Code: BNS55V10M16
Key Benefits
- Complies with IEC and BS88 standards for assured quality and safety.
- Dual voltage rating (550VAC / 250VDC) suitable for diverse applications.
- gM characteristic ensures protection for both cables and motors.
- Offset blade terminals enable secure and easy installation.
- Ceramic body provides excellent durability and thermal stability.
- High breaking capacity (80 kA AC, 40 kA DC) for reliable fault interruption.
- Compact F1 fuse size fits standard industrial fuse holders.
Compatibility
This fuse-link is compatible with standard BS88 fuse holders designed for F1 size fuses and offset blade terminals. It is suitable for use in low voltage industrial electrical systems requiring gM type protection for mixed cable and motor circuits.
Applications
- Industrial motor circuit protection
- Cable protection in distribution panels
- Control panels and switchgear
- Machinery and equipment requiring gM fuse protection
- Renewable energy systems with DC and AC components
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse provides full range protection for both motor circuits and cables, allowing it to safely interrupt both short-circuit and overload conditions.
Can this fuse be used in DC circuits?
Yes, this fuse-link is rated for up to 250V DC, making it suitable for low voltage DC applications as well as AC.
What is the significance of the offset blade terminal?
The offset blade terminal design ensures a secure and reliable connection in compatible fuse holders, improving installation ease and electrical contact integrity.
Is this fuse RoHS compliant?
Yes, the BNS55V10M16 fuse-link is RoHS compliant, ensuring it meets environmental and safety standards.
Common Search Terms
BS88 fuse, gM fuse-link, F1 fuse 10A, 550V fuse, 250V DC fuse, offset blade fuse, industrial fuse-link, motor protection fuse, ceramic fuse, IEC fuse-link
| Manufacturer Part Number | N1019211 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340516067 |
| Height | 61mm |
| Width | 13.5mm |
| Depth | 13.5mm |
| HS Code | 85361010 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNS55V10 |
