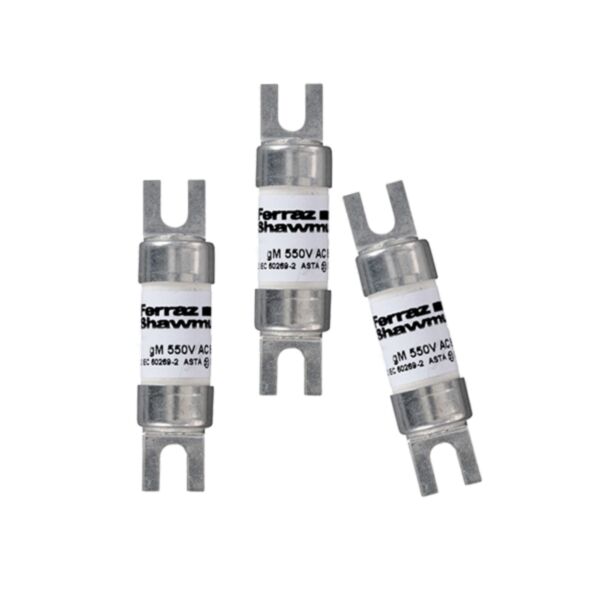

MERSEN FUSE BNIT55V25M32 A1 BNIT55V25M32

Why Choose the BS88 gM Type A1 550VAC 250VDC 25M32A BNIT Offset Tag BNIT55V25M32?

This BS88 gM Type A1 fuse-link is engineered to provide reliable circuit protection for both AC (550V) and DC (250V) applications, meeting stringent IEC standards. The offset tag design ensures secure and straightforward installation in industrial distribution boards and panels.

With a 25M32A breaking capacity, this BNIT55V25M32 model offers superior fault current interruption and reduced downtime, supporting the protection of sensitive and high-value assets in demanding environments. Ideal for engineers seeking high-performance and compliance without compromise.

Technical Specifications

• Item number: R1019237
• Catalogue No: BNIT55V25M32
• Description: British Standard fuse-link IEC BS88 gM Type A1 550VAC 250VDC 25M32A BNIT Offset Tag
• EAN/UPC Code: 3605340517026
• Rated voltage AC IEC: 550 V
• Rated voltage DC IEC: 250 V
• In M Ich: 25M32 A
• RoHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: gM
• Fuse Size: A1
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 3350 A²s
• Melting I2t: 670 A²s
• AC Max I.R./Breaking Capacity: I1: 80 kA
• Max. Rated Breaking Capacity DC: 40 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Offset Tag
• Product Diameter: 13.5 mm
• Product Width: 14.5 mm
• Product Length: 56 mm
• Sell Pack Quantity: 10 EA
• Sell Pack Weight: 0.16 kg
• Sell Pack Width: 65 mm
• Sell Pack Length: 70 mm
• Sell Pack Height: 30 mm
• Product group: Low Voltage IEC Fuses
• Body/Insulating Material: Ceramic
• Product Weight: 0.016 kg
• Power Dissipation at Rated Current Value: 2.3 W

Product Code: BNIT55V25M32

Key Benefits

• Reliable protection for both AC and DC circuits up to 550VAC and 250VDC.
• High breaking capacity of 25M32A ensures effective fault current interruption.
• Offset tag terminal design allows for secure and easy bolted mounting.
• Ceramic body provides robust insulation and durability in harsh environments.
• Compliance with IEC BS88 gM Type A1 standards guarantees performance and safety.
• Low power dissipation of 2.3 W minimises energy loss during operation.

Compatibility

This fuse-link is compatible with industrial distribution boards and panels designed for BS88 gM Type A1 fuses. It fits fuse holders and bases that accept A1 size fuses with offset tag terminals and supports both AC and DC rated systems up to the specified voltages and breaking capacities.

Applications

• Industrial motor control and protection circuits.
• Power distribution in commercial and industrial electrical panels.
• Protection of sensitive electronic equipment in DC and AC systems.
• Renewable energy installations requiring DC circuit protection.
• General low voltage electrical installations demanding reliable fuse protection.
