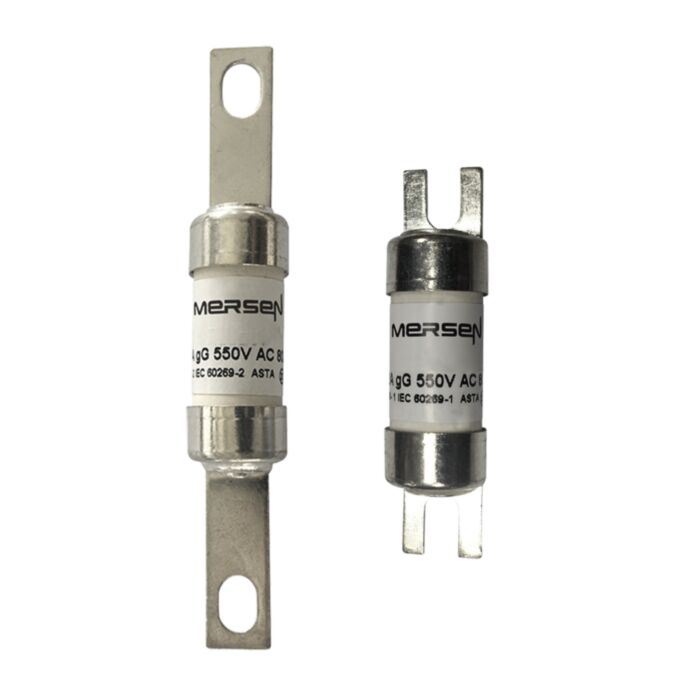

MERSEN FUSE BNIT55V25 A1 BNIT55V25

Why Choose the BS88 gM Type A1 550VAC 250VDC 25M32A BNIT Offset Tag BNIT55V25M32?

Engineered to IEC and BS88 standards, this fuse-link offers reliable circuit protection for both AC (550V) and DC (250V) applications up to 32A. The gM characteristic ensures robust performance in motor starter and general industrial distributions with rapid response to overloads and short circuits.

Its offset tag design enhances secure mounting and conductivity in demanding environments, while precise manufacturing supports consistent operation and system uptime. Choose BNIT55V25M32 for dependable protection and straightforward integration into your low-voltage assemblies.

Product Code: BNIT55V25M32

Key Benefits

• Complies with IEC and BS88 standards ensuring high reliability and safety.
• Suitable for both AC and DC applications with rated voltages of 550VAC and 250VDC.
• gM characteristic provides fast and effective protection for motor starters and industrial circuits.
• Offset tag terminals allow secure bolted mounting and excellent conductivity.
• Ceramic body material offers durability and high breaking capacity.
• High breaking capacity of 80 kA (AC) and 40 kA (DC) for demanding industrial environments.
• RoHS compliant, supporting environmental and safety regulations.

Compatibility

This fuse-link is compatible with low voltage IEC fuse holders designed for A1 size fuses and bolted offset tag terminals. It integrates seamlessly into motor control panels, industrial distribution boards, and other low-voltage electrical assemblies requiring gM type protection.

Applications

• Motor starter protection in industrial machinery.
• General industrial electrical distribution systems.
• Control panels requiring high breaking capacity fuses.
• Protection of circuits with mixed AC and DC loads.
• Replacement fuse for BS88 compliant fuse holders.

Technical Specifications

• Item number: R1019237
• Catalogue No: BNIT55V25M32
• Description: British Standard fuse-link IEC BS88 gM Type A1 550VAC 250VDC 25M32A BNIT Offset Tag
• EAN/UPC Code: 3605340517026
• Rated voltage AC IEC: 550 V
• Rated voltage DC IEC: 250 V
• In M Ich: 25M32 A
• RoHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: gM
• Fuse Size: A1
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 3350 A²s
• Melting I2t: 670 A²s
• AC Max I.R./Breaking Capacity: I1: 80 kA
• Max. Rated Breaking Capacity DC: 40 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Offset Tag
• Product Diameter: 13.5 mm
• Product Width: 14.5 mm
• Product Length: 56 mm
• Sell Pack Quantity: 10 EA
• Sell Pack Weight: 0.16 kg
• Sell Pack Width: 65 mm
• Sell Pack Length: 70 mm
• Sell Pack Height: 30 mm
• Product group: Low Voltage IEC Fuses
• Body/Insulating Material: Ceramic
• Product Weight: 0.016 kg
• Power Dissipation at Rated Current Value: 2.3 W
