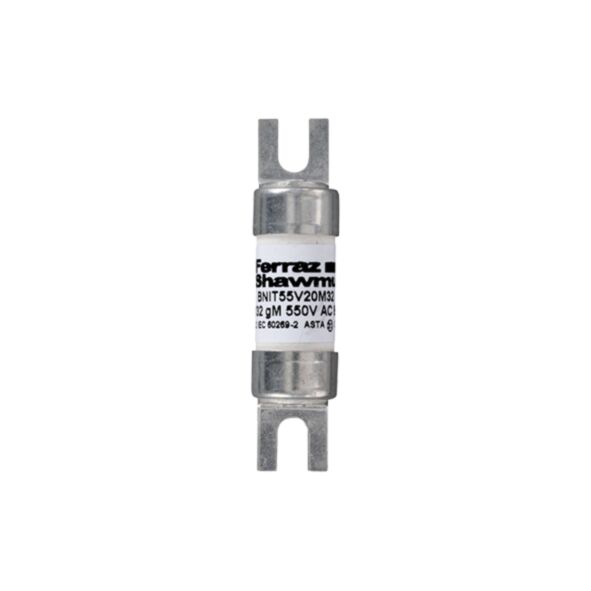

MERSEN FUSE BNIT55V20M32 A1 BNIT55V20M32
MPN: K1019231
Alt. SKU: BNIT55V20M32
Special Price
£2.09
£1.74
Regular Price
£5.95
MERSEN FUSE BNIT55V20M32 A1 BNIT55V20M32 is available to buy in increments of 10
Why Choose the BS88 gM Type A1 550VAC 250VDC 20M32A BNIT Offset Tag Fuse-Link?
Engineered in compliance with IEC and BS88 standards, this gM Type A1 fuse-link (BNIT55V20M32) provides reliable protection for power and control circuits operating up to 550VAC and 250VDC. The offset tag design ensures straightforward integration into British Standard panels and fuse holders.
Designed for industrial resilience, this 20M32A fuse-link offers enhanced short-circuit and overload protection, promoting circuit safety and operational efficiency. Ideal for demanding environments, it guarantees robust, long-term system performance.
Product Code: BNIT55V20M32
Key Benefits
- Compliance with IEC and BS88 standards ensures reliable and safe operation.
- High breaking capacity of up to 80 kA AC and 40 kA DC for superior protection.
- Offset tag terminal design allows easy installation and secure connection.
- Ceramic body provides excellent durability and thermal resistance.
- Suitable for both AC and DC applications, offering versatile usage.
- RoHS compliant, meeting environmental and safety regulations.
Compatibility
This fuse-link is compatible with British Standard fuse holders and panels designed for BS88 gM Type A1 fuses. It fits securely with bolted mounting systems and is suitable for integration in industrial low voltage IEC fuse applications requiring 20M32A rating.
Applications
- Protection of power and control circuits in industrial machinery.
- Use in motor control centres and distribution boards.
- Suitable for use in renewable energy systems requiring DC protection.
- General industrial electrical installations requiring high breaking capacity.
Technical Specifications
- Item number: K1019231
- Catalogue No: BNIT55V20M32
- Description: British Standard fuse-link IEC BS88 gM Type A1 550VAC 250VDC 20M32A BNIT Offset Tag
- EAN/UPC Code: 3605340515947
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- In M Ich: 20M32 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A1
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 3350 A²s
- Melting I2t: 670 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 13.5 mm
- Product Width: 14.5 mm
- Product Length: 56 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.16 kg
- Sell Pack Width: 65 mm
- Sell Pack Length: 70 mm
- Sell Pack Height: 30 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.016 kg
- Power Dissipation at Rated Current Value: 1.8 W
Frequently Asked Questions
What does the gM characteristic mean for this fuse?
The gM characteristic indicates that the fuse is a general-purpose fuse suitable for protecting power semiconductor devices and other sensitive equipment against overloads and short circuits.
Can this fuse be used in DC circuits?
Yes, this fuse is rated for both AC (550 V) and DC (250 V) applications, making it suitable for a variety of circuit types.
What is the significance of the offset tag terminal?
The offset tag terminal design allows for easy and secure bolted mounting in British Standard fuse holders, ensuring reliable electrical connection and mechanical stability.
Is this fuse RoHS compliant?
Yes, the BNIT55V20M32 fuse-link complies with RoHS regulations, ensuring it meets environmental safety standards.
Common Search Terms
BS88 fuse, gM fuse-link, 550VAC fuse, 250VDC fuse, 20M32A fuse, offset tag fuse, industrial fuse-link, IEC fuse, low voltage fuse, ceramic fuse, bolted mounting fuse
| Manufacturer Part Number | K1019231 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515947 |
| Height | 56mm |
| Width | 14.5mm |
| Depth | 13.5mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNIT55V20M32 |
