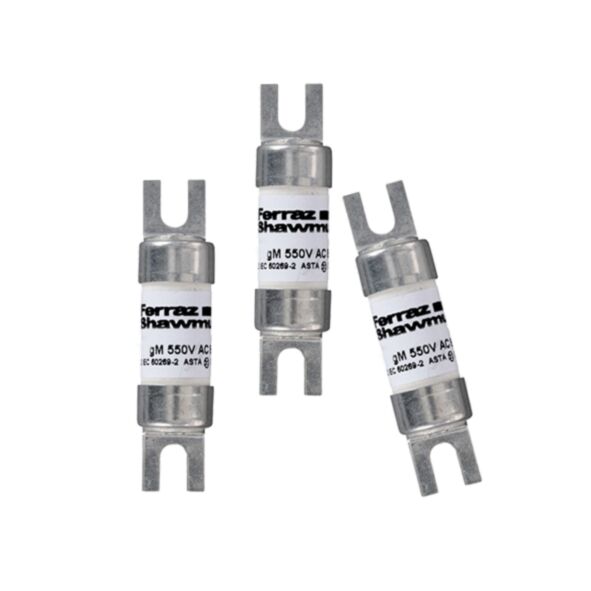

MERSEN FUSE BNIT55V10M16 A1 BNIT55V10M16
MPN: G1019228
Alt. SKU: BNIT55V10M16
Special Price
£2.12
£1.77
Regular Price
£6.08
MERSEN FUSE BNIT55V10M16 A1 BNIT55V10M16 is available to buy in increments of 10
Why Choose the BS88 gM Type A1 550VAC 250VDC 10M16A BNIT Offset Tag BNIT55V10M16?
This fuse-link is compliant with IEC and BS88 standards, offering reliable circuit protection for both AC (up to 550V) and DC (up to 250V) applications. Its gM characteristic ensures optimal performance for motor circuits, combining overload and short-circuit protection in a single unit.
Featuring offset tag design for secure and straightforward installation, the BNIT55V10M16 is rated at 10M16A, making it ideal for industrial environments demanding robust, dependable, and maintenance-friendly circuit protection solutions.
Product Code: BNIT55V10M16
Key Benefits
- Complies with IEC and BS88 standards for assured quality and safety.
- Suitable for both AC (550V) and DC (250V) circuit protection.
- gM characteristic provides comprehensive motor circuit protection.
- Offset tag terminals ensure secure and easy installation.
- High breaking capacity: 80 kA AC and 40 kA DC for reliable fault clearing.
- Ceramic body offers excellent durability and heat resistance.
- RoHS compliant, supporting environmental safety standards.
Compatibility
The BNIT55V10M16 fuse-link is compatible with standard BS88 fuse holders designed for A1 size fuses with offset tag terminals. It integrates seamlessly into industrial motor control panels and electrical distribution systems requiring gM type protection.
Applications
- Industrial motor circuit protection.
- Electrical distribution systems in commercial and industrial facilities.
- Overload and short-circuit protection in AC and DC circuits.
- Maintenance and replacement in existing BS88 compliant fuse installations.
Technical Specifications
- Item number: G1019228
- Catalogue No: BNIT55V10M16
- Description: British Standard fuse-link IEC BS88 gM Type A1 550VAC 250VDC 10M16A BNIT Offset Tag
- EAN/UPC Code: 3605340515794
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- In M Ich: 10M16 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A1
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 550 A²s
- Melting I2t: 120 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 13.5 mm
- Product Width: 14.5 mm
- Product Length: 56 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.16 kg
- Sell Pack Width: 65 mm
- Sell Pack Length: 70 mm
- Sell Pack Height: 30 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.016 kg
- Power Dissipation at Rated Current Value: 1 W
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse is suitable for motor circuit protection, providing both overload and short-circuit protection in compliance with IEC standards.
Can this fuse be used in DC circuits?
Yes, the BNIT55V10M16 is rated for use in DC circuits up to 250V, offering reliable protection in both AC and DC applications.
What is the significance of the offset tag terminal?
The offset tag terminal design allows for secure bolted mounting, ensuring stable electrical connection and easy installation or replacement.
Is this fuse RoHS compliant?
Yes, the BNIT55V10M16 complies with RoHS regulations, ensuring it meets environmental and safety standards.
Common Search Terms
BS88 fuse, gM fuse-link, motor protection fuse, 10M16A fuse, 550VAC fuse, 250VDC fuse, ceramic fuse, offset tag fuse, IEC fuse, industrial fuse-link
| Manufacturer Part Number | G1019228 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515794 |
| Height | 56mm |
| Width | 14.5mm |
| Depth | 13.5mm |
| HS Code | 85361010 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNIT55V10M16 |
