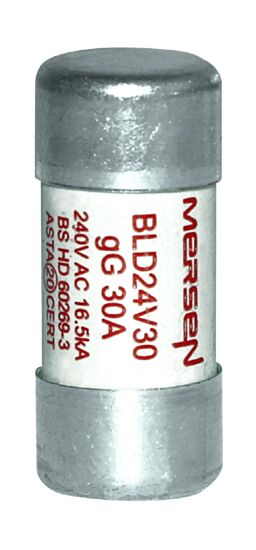

MERSEN FUSE BLD24V30 BLD24V30
MPN: T1065699
Alt. SKU: BLD24V30
£4.57
£3.81
MERSEN FUSE BLD24V30 BLD24V30 is available to buy in increments of 10
Why Choose the BS1361 gG Type 13x29 240VAC 30A BLD24V30 Fuse-Link?
This BS1361 gG Type fuse-link provides reliable circuit protection for low voltage installations, rated at 240VAC and 30A. Fully compliant with IEC and British Standards, the 13x29mm format ensures compatibility with a wide range of domestic and industrial consumer units and distribution boards.
Engineered for consistent performance, it offers rapid response to overloads and short circuits, safeguarding equipment and wiring from electrical faults. Its robust construction and precise calibration deliver dependable service life, making it a trusted choice for demanding applications.
Technical Specifications
- Item number: T1065699
- Catalogue No: BLD24V30
- Description: British Standard fuse-link IEC BS1361 gG Type 13x29 240VAC 30A
- EAN/UPC Code: 3605340607192
- Rated voltage AC IEC: 240 V
- Ampere Rating: 30 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: gG
- Fuse Size: 13x29
- Mounting: Clip
- Clearing I2t At Rated Voltage: 2041 A²s
- Melting I2t: 816 A²s
- AC Max I.R./Breaking Capacity: I1: 16.5 kA
- Connection/Terminal Material: Copper
- Connection/Terminal Type: Cylindrical
- Product Diameter: 12.7 mm
- Product Length: 29 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.108 kg
- Sell Pack Width: 70 mm
- Sell Pack Length: 40 mm
- Sell Pack Height: 35 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0108 kg
- Power Dissipation at Rated Current Value: 2.85 W
Product Code: T1065699
Key Benefits
- Reliable protection against overloads and short circuits
- Compliant with IEC and British Standards for safety and performance
- Compact 13x29mm size fits a wide range of consumer units and distribution boards
- Robust ceramic body ensures durability and heat resistance
- High breaking capacity of 16.5 kA for enhanced safety
- Easy clip mounting for quick installation and replacement
Compatibility
This fuse-link is compatible with standard BS1361 fuse holders and consumer units designed for 13x29mm gG type fuses. It is suitable for use in domestic, commercial, and industrial low voltage electrical installations operating at 240VAC.
Applications
- Protection of electrical circuits in residential and commercial buildings
- Use in distribution boards and consumer units
- Safeguarding motors, transformers, and lighting circuits
- General low voltage circuit protection in industrial environments
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates a general purpose fuse-link suitable for protection of cables and equipment against overloads and short circuits in low voltage AC circuits.
Can this fuse-link be used in DC circuits?
No, this fuse-link is designed specifically for AC applications and is rated for 240VAC only.
How do I know if this fuse fits my consumer unit?
Check that your consumer unit or fuse holder supports 13x29mm gG type fuse-links, which is a common standard size for BS1361 fuses.
What is the breaking capacity of this fuse?
The fuse has a breaking capacity of 16.5 kA at rated voltage, meaning it can safely interrupt fault currents up to this level.
Common Search Terms
BS1361 fuse, 13x29 fuse-link, 30A fuse, 240V fuse, gG fuse, ceramic fuse, low voltage fuse, consumer unit fuse, industrial fuse-link, clip mount fuse
| Manufacturer Part Number | T1065699 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340607192 |
| Height | 29mm |
| Width | 12.7mm |
| Depth | 12.7mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BLD24V30 |
