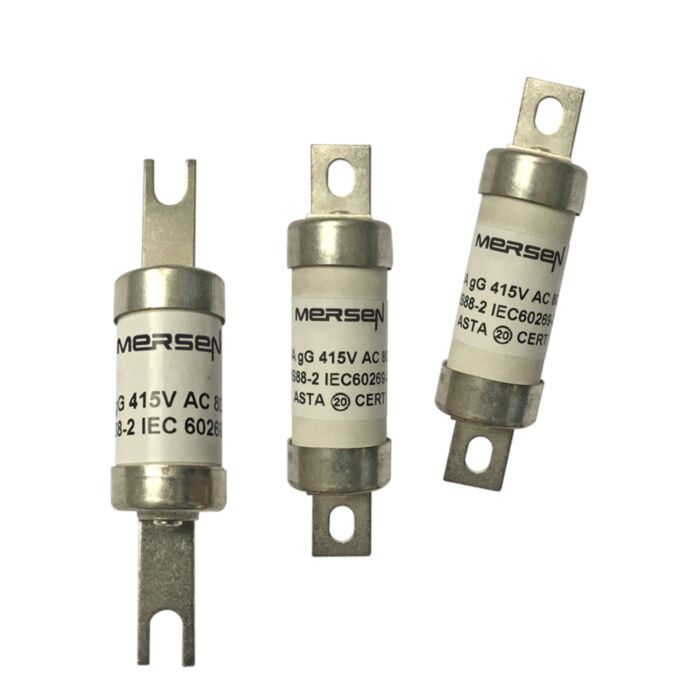

MERSEN FUSE BEIT42V50 A1 BEIT42V50
MPN: C1019178
Alt. SKU: BEIT42V50
Special Price
£1.87
£1.56
Regular Price
£5.34
MERSEN FUSE BEIT42V50 A1 BEIT42V50 is available to buy in increments of 10
Why Choose the BEIT42V50 BS88 gG Type A1 50A Offset Tag Fuse-Link?
Engineered to IEC BS88 standards, the BEIT42V50 fuse-link ensures reliable protection for industrial and commercial circuits rated up to 415VAC and 250VDC. Its robust design delivers consistent performance under demanding conditions, making it ideal for safeguarding power distribution systems.
This 50A offset tag fuse-link offers straightforward installation and compatibility with standard A1 fuse carriers, minimising downtime during maintenance. Choose the BEIT42V50 for trusted overcurrent protection, longevity, and compliance with rigorous safety requirements.
Product Code: BEIT42V50
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- High breaking capacity of 80 kA AC and 40 kA DC for effective circuit protection.
- Offset tag design allows easy and secure bolted mounting.
- Ceramic body ensures durability and heat resistance.
- Compatible with standard A1 fuse carriers, simplifying replacement.
- RoHS compliant, supporting environmental safety regulations.
Compatibility
The BEIT42V50 fuse-link is compatible with all standard A1 size fuse carriers designed for BS88 gG type fuses. It supports both AC and DC circuits up to 415 V and 250 V respectively, making it suitable for a wide range of industrial and commercial electrical installations.
Applications
- Protection of power distribution systems in industrial facilities.
- Overcurrent protection in commercial electrical panels.
- Use in control circuits requiring reliable fuse protection.
- Suitable for machinery and equipment with AC/DC power supplies.
- Ideal for maintenance and safety upgrades in existing installations.
Technical Specifications
- Item number: C1019178
- Catalogue No: BEIT42V50
- Description: British Standard fuse-link IEC BS88 gG Type A1 415VAC 250VDC 50A BEIT Offset Tag
- EAN/UPC Code: 3605340515572
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 50 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A1
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 8750 A²s
- Melting I2t: 2600 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 17.1 mm
- Product Width: 18.2 mm
- Product Length: 65.5 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.315 kg
- Sell Pack Width: 80 mm
- Sell Pack Length: 90 mm
- Sell Pack Height: 40 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0315 kg
- Power Dissipation at Rated Current Value: 3.6 W
Frequently Asked Questions
What is the maximum voltage this fuse-link can handle?
The BEIT42V50 fuse-link is rated for up to 415 V AC and 250 V DC, suitable for most industrial and commercial applications.
Is this fuse-link compatible with standard fuse carriers?
Yes, it is designed to fit standard A1 size fuse carriers with an offset tag terminal type.
What type of protection does the gG characteristic provide?
The gG characteristic offers general purpose protection for cables and electrical equipment against overloads and short circuits.
Is the BEIT42V50 RoHS compliant?
Yes, this fuse-link complies with RoHS regulations, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse-link, 50A fuse, IEC gG fuse, offset tag fuse, industrial fuse-link, A1 size fuse, 415V fuse, 250V DC fuse, ceramic fuse-link, overcurrent protection fuse
| Manufacturer Part Number | C1019178 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515572 |
| Height | 65.5mm |
| Width | 18.2mm |
| Depth | 17.1mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BEIT42V50 |
