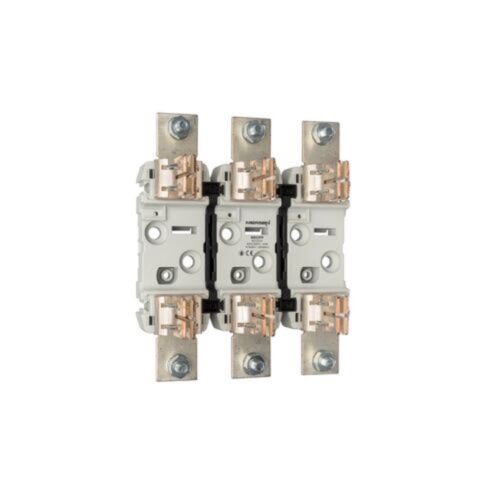

MERSEN FUSE BASE NH 2-PP F/TORN. 3P BB23PP
MPN: B212107
Alt. SKU: BB23PP
Special Price
£103.58
£86.32
Regular Price
£188.34
Why Choose the NH Plastic Base Size NH2 1250VAC 1000VDC 400A 3-Pole DIN rail Connection Screw Indirect Touch Protection IP20 BB23PPRFS?
This NH2 plastic base is engineered for high-reliability power distribution in industrial environments, supporting up to 400A at 1250VAC or 1000VDC. Its robust 3-pole design integrates seamless DIN rail mounting and screw connections, ensuring secure, vibration-resistant installation.
Featuring IP20 indirect touch protection, this unit enhances operational safety without compromising accessibility during maintenance. Ideal for switchgear, panelboards, and demanding control systems, the BB23PPRFS offers superior insulation and dependable circuit protection.
Technical Specifications
- Item number: S226727
- Catalogue No: BB23PPRFS
- Description: NH plastic base Size NH2 1250VAC 1000VDC 400A 3-Pole DIN rail Connection Screw Indirect touch protection IP20
- EAN/UPC Code: 8430399002996
- Rated voltage AC IEC: 1250 V
- Rated voltage DC IEC: 1000 V
- Ampere Rating: 400 A
- AC or DC: AC/DC
- Short Circuit Current Rating (SCCR): From size 00 to size 3 : 117kA
- Fuse Size: NH2
- Design Details: Indirect touch protection IP20
- Number of Poles: 3-Pole
- Torque Rating: 32 Nm
- Installation Mounting: DIN rail
- Power Acceptance: 45 W
- Product Width: 191 mm
- Product Length: 122.5 mm
- Product Height: 250 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 2.22 kg
- Sell Pack Width: 230 mm
- Sell Pack Length: 290 mm
- Sell Pack Height: 165 mm
- Product group: Fuse Bases
- Product Weight: 2.22 kg
Product Code: BB23PPRFS
Key Benefits
- High current rating of 400A suitable for demanding industrial applications.
- Supports both AC and DC voltages up to 1250VAC and 1000VDC respectively.
- Robust 3-pole design ensures reliable multi-phase circuit protection.
- DIN rail mounting allows for easy and secure installation.
- Screw connection provides vibration-resistant and secure electrical contacts.
- Indirect touch protection IP20 enhances operator safety during maintenance.
- Compact dimensions optimise panel space without compromising performance.
Compatibility
The BB23PPRFS fuse base is compatible with NH2 size fuses and fits standard DIN rail mounting systems. It integrates seamlessly with industrial switchgear, panelboards, and control systems designed for NH fuse bases, ensuring broad applicability across various electrical distribution setups.
Applications
- Industrial power distribution panels
- Switchgear assemblies
- Control and automation systems
- Motor protection circuits
- Renewable energy installations
- Commercial and manufacturing electrical installations
Frequently Asked Questions
What fuse sizes are compatible with this base?
This base is designed specifically for NH2 size fuses.
Can this fuse base be used for both AC and DC circuits?
Yes, it supports rated voltages up to 1250VAC and 1000VDC, making it suitable for both AC and DC applications.
What type of mounting does this fuse base use?
It uses a DIN rail mounting system for easy and secure installation.
What level of protection does the IP20 rating provide?
IP20 provides indirect touch protection, preventing access to hazardous parts while allowing ventilation.
Common Search Terms
NH fuse base, NH2 fuse holder, 400A fuse base, DIN rail fuse holder, industrial fuse base, screw connection fuse base, IP20 fuse base, 3-pole fuse holder, high current fuse base, indirect touch protection fuse base
| Manufacturer Part Number | B212107 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8430399002620 |
| Height | 89mm |
| Width | 191mm |
| Depth | 225mm |
| HS Code | 85361090 |
| Manufacturer | Mersen |
| Alternative Product SKU | BB23PP |
