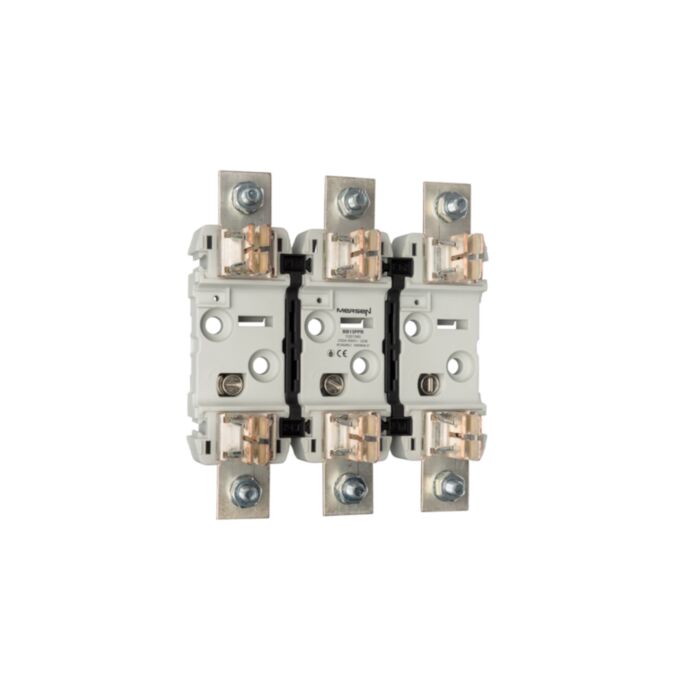

MERSEN FUSE BASE NH 1-PP F/RAIL. 3P BB13PPR
MPN: Y201340
Alt. SKU: BB13PPR
Special Price
£78.20
£65.17
Regular Price
£142.19
Why Choose the NH Plastic Base Size NH1 3-Pole (BB13PPRFS)?
The NH1 plastic base is engineered for reliable power distribution, supporting up to 250A at 1250VAC/1000VDC across three poles. Designed for DIN rail installation, it features a robust screw connection for secure wiring in demanding industrial environments.
Enhanced with IP20 indirect touch protection, this base ensures operational safety and compliance, while its compact construction offers efficient integration into panels. Ideal for use in high-performance switchgear and control assemblies.
Technical Specifications
- Item number: Q226725
- Catalogue No: BB13PPRFS
- Description: NH plastic base Size NH1 1250VAC 1000VDC 250A 3-Pole DIN rail Connection Screw Indirect touch protection IP20
- EAN/UPC Code: 8430399002934
- Rated voltage AC IEC: 1250 V
- Rated voltage DC IEC: 1000 V
- Ampere Rating: 250 A
- AC or DC: AC/DC
- Short Circuit Current Rating (SCCR): From size 00 to size 3 : 117kA
- Fuse Size: NH1
- Design Details: Indirect touch protection IP20
- Number of Poles: 3-Pole
- Torque Rating: 32 Nm
- Installation Mounting: DIN rail
- Power Acceptance: 32 W
- Product Width: 191 mm
- Product Length: 122.5 mm
- Product Height: 250 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 1.93 kg
- Sell Pack Width: 230 mm
- Sell Pack Length: 260 mm
- Sell Pack Height: 90 mm
- Product group: Fuse Bases
- Product Weight: 1.93 kg
Product Code: BB13PPRFS
Key Benefits
- High current rating of 250A suitable for demanding industrial applications.
- Supports both AC and DC voltages up to 1250VAC and 1000VDC respectively.
- Robust screw connection ensures secure and reliable wiring.
- IP20 indirect touch protection enhances operator safety.
- Compact DIN rail mounting for easy integration into control panels.
- Designed for NH1 fuse size compatibility, providing standardised fuse protection.
- High short circuit current rating of 117kA ensures system protection under fault conditions.
Compatibility
This fuse base is compatible with NH1 size fuses and designed for use in systems requiring DIN rail mounting. It suits industrial switchgear, control cabinets, and power distribution boards that operate within the specified voltage and current ratings.
Applications
- Industrial power distribution and control panels.
- Switchgear assemblies requiring reliable fuse protection.
- Electrical installations in manufacturing plants.
- Renewable energy system protection.
- Commercial and infrastructure electrical systems.
Frequently Asked Questions
What is the maximum current rating of this fuse base?
The fuse base supports a maximum current rating of 250A.
Can this fuse base be used for both AC and DC circuits?
Yes, it is rated for both AC (up to 1250V) and DC (up to 1000V) applications.
What type of mounting does this fuse base support?
It is designed for DIN rail mounting, allowing easy installation in control panels.
What level of protection does the fuse base provide?
The fuse base features IP20 indirect touch protection to enhance safety during operation.
Which fuse size is compatible with this base?
This base is compatible with NH1 size fuses.
Common Search Terms
NH1 fuse base, 3-pole fuse holder, DIN rail fuse base, 250A fuse base, IP20 fuse holder, industrial fuse base, NH plastic base, screw connection fuse base, high voltage fuse base, electrical fuse holder
| Manufacturer Part Number | Y201340 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8430399002927 |
| Height | 71mm |
| Width | 191mm |
| Depth | 209mm |
| HS Code | 85361090 |
| Manufacturer | Mersen |
| Alternative Product SKU | BB13PPR |
