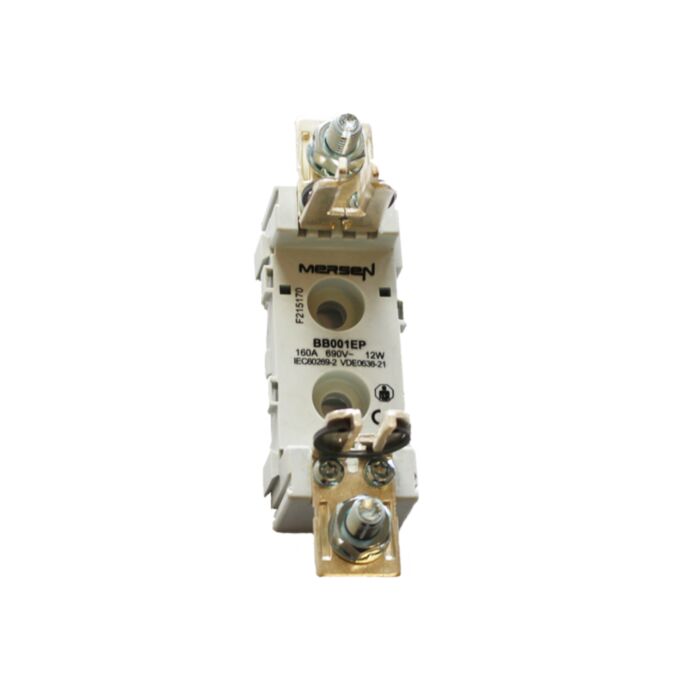

MERSEN FUSE BASE NH 00-EP F/TORN. 1P F215170
MPN: F215170
Alt. SKU: BB001EP
Special Price
£8.47
£7.06
Regular Price
£15.40
MERSEN FUSE BASE NH 00-EP F/TORN. 1P F215170 is available to buy in increments of 3
Why Choose the NH Plastic Base Size NH00 1000VAC 1000VDC 160A 1-pole DIN rail Connection Clamp Strap EP Type BB001EPBR?
Engineered for demanding electrical environments, this NH Size NH00 plastic base supports up to 160A at both 1000VAC and 1000VDC, ensuring reliable protection and performance in industrial applications. The robust DIN rail mounting and secure clamp strap design offer rapid, tool-efficient installation and maintenance.
Manufactured from durable, high-quality EP material, the BB001EPBR base features excellent insulation properties and mechanical strength, meeting stringent safety and operational standards. Ideal for use in distribution panels, control cabinets, and renewable energy systems.
Technical Specifications
- Item number: F200795
- Catalogue No: BB001EPBR
- Description: NH plastic base Size NH00 1000VAC 1000VDC 160A 1-pole DIN rail Connection Clamp Strap EP Type
- EAN/UPC Code: 8430399002750
- Rated voltage AC IEC: 1000 V
- Rated voltage DC IEC: 1000 V
- Ampere Rating: 160 A
- AC or DC: AC/DC
- Short Circuit Current Rating (SCCR): From size 00 to size 3 : 117kA
- Fuse Size: NH00
- Design Details: EP Type
- Number of Poles: 1-pole
- Torque Rating: 3.9 Nm
- Installation Mounting: DIN rail
- Power Acceptance: 12 W
- Product Width: 36 mm
- Product Length: 54 mm
- Product Height: 121 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 0.39 kg
- Sell Pack Width: 125 mm
- Sell Pack Length: 132 mm
- Sell Pack Height: 65 mm
- Product group: Fuse Bases
- Product Weight: 0.13 kg
Product Code: BB001EPBR
Key Benefits
- High current rating of 160A supports demanding applications.
- Dual voltage compatibility for AC and DC systems up to 1000V.
- Robust EP material ensures excellent insulation and mechanical strength.
- Easy and secure DIN rail mounting with clamp strap for quick installation.
- Compact design with 1-pole configuration saves panel space.
- High short circuit current rating (117kA) enhances safety.
Compatibility
This fuse base is compatible with NH00 size fuses and designed to fit standard DIN rail mounting systems. It is suitable for use in a wide range of industrial electrical panels and control cabinets requiring AC/DC fuse protection up to 160A.
Applications
- Industrial distribution panels
- Control cabinets and switchgear
- Renewable energy systems
- Electrical protection in manufacturing plants
- Power supply units and motor control centres
Frequently Asked Questions
What fuse size does the BB001EPBR support?
The BB001EPBR supports NH00 size fuses.
Can this fuse base be used for both AC and DC applications?
Yes, it is rated for both 1000VAC and 1000VDC applications.
How is the fuse base mounted?
The fuse base is designed for DIN rail mounting with a clamp strap connection for secure installation.
What is the maximum current rating?
The maximum current rating is 160A.
Common Search Terms
NH fuse base, NH00 fuse holder, 160A fuse base, DIN rail fuse holder, plastic fuse base, EP type fuse base, industrial fuse holder, AC/DC fuse base 1000V
| Manufacturer Part Number | F215170 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 8430399000930 |
| Height | 54mm |
| Width | 36mm |
| Depth | 121mm |
| HS Code | 85361090 |
| Manufacturer | Mersen |
| Alternative Product SKU | BB001EP |
