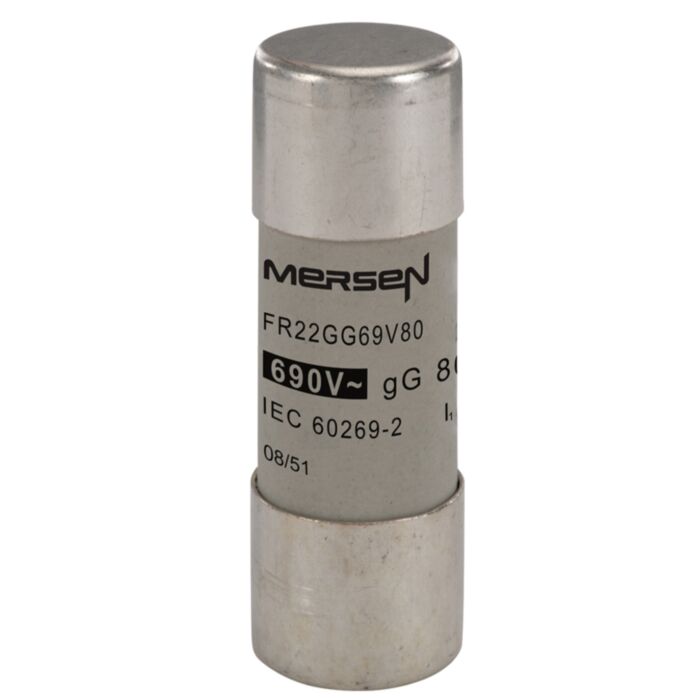

MERSEN FUSE 690V CP 22X58 GG 80A S/I Q217180
MPN: Q217180
Alt. SKU: FR22GG69V80
Special Price
£2.18
£1.82
Regular Price
£3.97
MERSEN FUSE 690V CP 22X58 GG 80A S/I Q217180 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link gG Size 22x58 IEC 690VAC 80A FR22GG69V80?
The FR22GG69V80 cylindrical fuse-link delivers reliable protection for low-voltage circuits, rated at 690VAC and 80A. Manufactured to IEC standards, it is ideal for safeguarding cables, switchgear, and industrial installations against overloads and short circuits.
Its robust 22x58mm design ensures secure fitting in compatible fuse holders, while the gG characteristic provides full-range breaking capacity. Choose FR22GG69V80 for consistent performance and compliance in demanding electrical environments.
Technical Specifications
- Item number: Q217180
- Catalogue No: FR22GG69V80
- Description: Cylindrical fuse-link gG Size 22x58 IEC 690VAC 80A
- EAN/UPC Code: 8430399009216
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 80 A
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: 22x58
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Max. Rated Breaking Capacity DC: 100 kA @ 250 V, L/R = 15 ms
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 22.2 mm
- Product Length: 58 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.54 kg
- Sell Pack Width: 111 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 23 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.054 kg
- Power Dissipation at Rated Current Value: 7.4 W
Product Code: FR22GG69V80
Key Benefits
- High breaking capacity ensures reliable protection against short circuits.
- Compliance with IEC standards guarantees quality and safety.
- Robust ceramic body offers excellent insulation and durability.
- Silver-plated copper terminals provide superior conductivity and corrosion resistance.
- Clip mounting allows for easy installation and replacement.
- Full-range gG characteristic suitable for general purpose protection.
Compatibility
The FR22GG69V80 fuse-link is compatible with standard 22x58mm fuse holders designed for low voltage IEC fuses. It fits securely in clip mounting systems and can be used in a variety of industrial switchgear and control panels requiring 80A protection at up to 690VAC.
Applications
- Protection of industrial electrical installations and machinery.
- Safeguarding cables and wiring in low-voltage distribution systems.
- Use in switchgear and control panels for overload and short circuit protection.
- General purpose protection in commercial and industrial environments.
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates a general purpose fuse link suitable for protection of cables and equipment against overloads and short circuits.
Can this fuse be used for DC applications?
Yes, the FR22GG69V80 is rated for both AC (690 V) and DC (250 V) applications.
What is the breaking capacity of this fuse?
It has an AC breaking capacity of 120 kA and a DC breaking capacity of 100 kA at 250 V with L/R = 15 ms.
Is this fuse suitable for use in harsh environments?
Yes, the ceramic body and silver-plated copper terminals provide durability and reliable performance in demanding industrial environments.
Common Search Terms
22x58 fuse, 80A cylindrical fuse, IEC fuse-link, gG fuse 690VAC, industrial fuse 80 ampere, ceramic body fuse, low voltage fuse, FR22GG69V80 replacement fuse
| Manufacturer Part Number | Q217180 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399009216 |
| Height | 58mm |
| Width | 22.2mm |
| Depth | 22.2mm |
| HS Code | 85361090 |
| Country of Manufacture | Tunisia |
| Manufacturer | Mersen |
| Alternative Product SKU | FR22GG69V80 |
