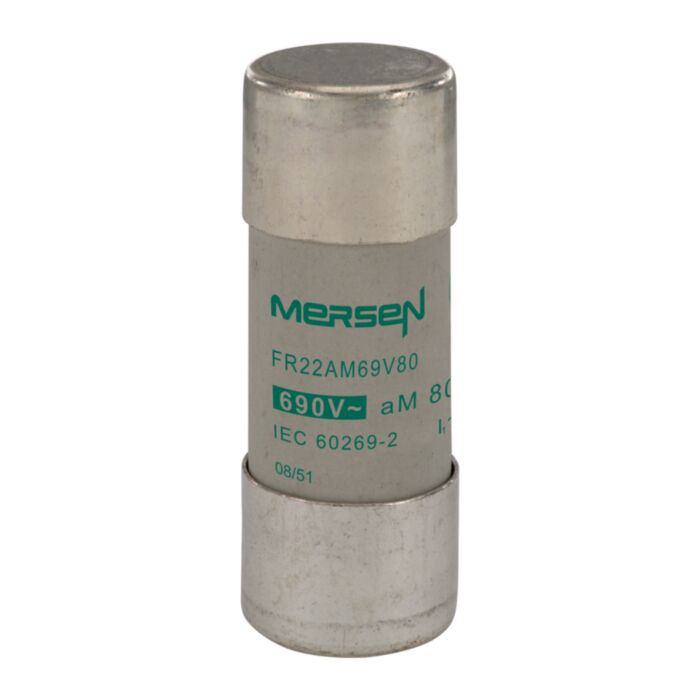

MERSEN FUSE 690V CP 22X58 AM 80A S/I H216667
MPN: H216667
Alt. SKU: FR22AM69V80
MERSEN FUSE 690V CP 22X58 AM 80A S/I H216667 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link aM Size 22x58 IEC 690VAC 80A FR22AM69V80?
Engineered for robust motor circuit protection, the FR22AM69V80 cylindrical fuse-link ensures reliable performance under demanding conditions. With a 22x58mm footprint and compliance to IEC standards, it offers dependable safeguarding for industrial applications operating at up to 690VAC and 80A.
This aM-class fuse-link delivers rapid response to short-circuit events while withstanding motor start-up currents, minimising downtime and equipment damage. Its compact design and high interrupting capacity make it ideal for modern control panels and machinery.
Technical Specifications
- Item number: H216667
- Catalogue No: FR22AM69V80
- Description: Cylindrical fuse-link aM Size 22x58 IEC 690VAC 80A
- EAN/UPC Code: 8430399009742
- Rated voltage AC IEC: 690 V
- Ampere Rating: 80 A
- AC or DC: AC
- Speed/Characteristic: aM
- Fuse Size: 22x58
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 22.2 mm
- Product Length: 58 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.54 kg
- Sell Pack Width: 111 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 23 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.054 kg
- Power Dissipation at Rated Current Value: 6.2 W
Product Code: FR22AM69V80
Key Benefits
- High interrupting capacity of 120 kA ensures reliable short-circuit protection.
- Compact 22x58mm size fits modern control panels and machinery.
- Rapid response characteristic (aM) protects motors while tolerating start-up currents.
- Ceramic body provides excellent insulation and durability.
- Silver-plated copper terminals with ferrule connection ensure secure and efficient electrical contact.
Compatibility
The FR22AM69V80 fuse-link is compatible with IEC standard fuse holders designed for 22x58mm cylindrical fuses. It is suitable for use in low voltage industrial motor circuits and control panels operating up to 690VAC and rated for 80A.
Applications
- Motor circuit protection in industrial automation systems.
- Control panels for manufacturing and processing plants.
- Protection of electrical equipment in commercial and industrial buildings.
- Safeguarding motors and transformers against short-circuits and overloads.
Frequently Asked Questions
What does the 'aM' speed characteristic mean?
The 'aM' speed characteristic indicates that the fuse is designed to protect motor circuits by tolerating the high inrush currents during motor start-up while providing fast interruption during short-circuits.
Can this fuse-link be used in DC applications?
No, the FR22AM69V80 is rated for AC applications only, specifically up to 690VAC.
What is the significance of the 120 kA breaking capacity?
The 120 kA breaking capacity means the fuse can safely interrupt fault currents up to 120,000 amperes without damage, ensuring protection during severe short-circuit events.
Is the fuse suitable for panel mounting?
Yes, the fuse is designed for clip mounting, making it suitable for installation in standard fuse holders within control panels.
Common Search Terms
22x58 fuse, cylindrical fuse-link, motor protection fuse, IEC fuse 80A, aM fuse-link, 690VAC fuse, high interrupting capacity fuse, ceramic fuse 22x58, industrial motor fuse, clip mount fuse-link
| Manufacturer Part Number | H216667 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399009742 |
| Height | 58mm |
| Width | 22.2mm |
| Depth | 22.2mm |
| HS Code | 85361090 |
| Country of Manufacture | Tunisia |
| Manufacturer | Mersen |
| Alternative Product SKU | FR22AM69V80 |
