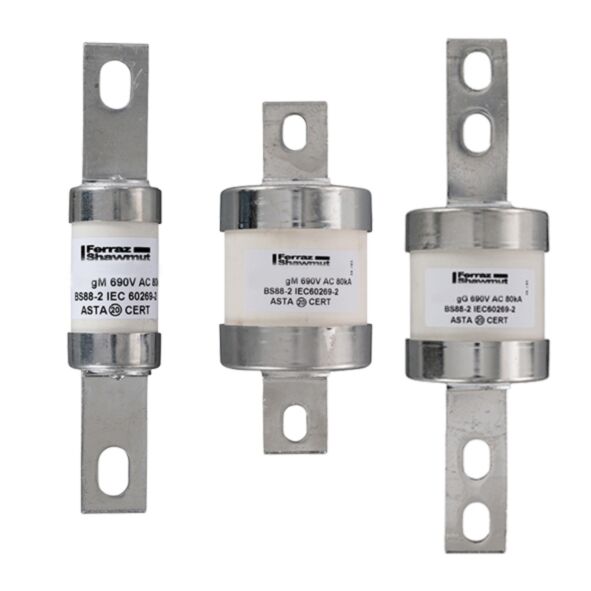

MERSEN FUSE 63M80A69B1 BTC69V63M80
MPN: B1006619
Alt. SKU: BTC69V63M80
Special Price
£20.23
£16.86
Regular Price
£57.80
MERSEN FUSE 63M80A69B1 BTC69V63M80 is available to buy in increments of 10
Why Choose the BS88 gM Type B1 690VAC 460VDC 63M80A BTC Central Bolted Tag BTC69V63M80?
This high-performance BS88 gM Type B1 fuse-link is engineered for reliable protection of circuits at up to 690VAC and 460VDC, making it ideal for demanding industrial and commercial applications. It offers a 63M80A rating with central bolted tag connections for robust, vibration-resistant installation.
Conforming to IEC and British Standards, the BTC69V63M80 ensures consistent, safe operation and rapid fault clearing. Its durable construction and precise characteristics minimise downtime while safeguarding valuable equipment.
Product Code: BTC69V63M80
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC for enhanced safety.
- Central bolted tag terminals ensure secure and vibration-resistant connections.
- Compliance with IEC and British Standards guarantees reliable performance.
- Ceramic body provides excellent insulation and durability under harsh conditions.
- Compact size (26.9 mm diameter, 137 mm length) suitable for various installations.
- RoHS compliant, supporting environmentally responsible applications.
Compatibility
The BTC69V63M80 fuse-link is compatible with BS88 gM Type B1 fuse holders and switchgear designed for 690VAC and 460VDC ratings. It is suitable for use in low voltage industrial electrical distribution systems requiring gM characteristic fuses.
Applications
- Protection of industrial motor circuits and control panels.
- Use in commercial electrical distribution boards.
- Safeguarding power electronics and variable speed drives.
- General purpose protection in manufacturing and processing plants.
- Applications requiring high breaking capacity and reliable fuse operation.
Technical Specifications
- Item number: B1006619
- Catalogue No: BTC69V63M80
- Description: British Standard fuse-link IEC BS88 gM Type B1 690VAC 460VDC 63M80A BTC Central Bolted Tag
- EAN/UPC Code: 3605340536829
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 63M80 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: B1
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 48500 A²s
- Melting I2t: 8500 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 26.9 mm
- Product Length: 137 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 1.245 kg
- Sell Pack Width: 145 mm
- Sell Pack Length: 145 mm
- Sell Pack Height: 60 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.1245 kg
- Power Dissipation at Rated Current Value: 5.1 W
Frequently Asked Questions
What does the gM characteristic mean for this fuse?
The gM characteristic indicates that the fuse is a full-range motor protection fuse, capable of protecting motors and associated circuits against overloads and short circuits.
Can this fuse be used for both AC and DC applications?
Yes, the BTC69V63M80 is rated for use in both AC (up to 690 V) and DC (up to 460 V) circuits, making it versatile for various industrial applications.
What type of connection does this fuse use?
It uses a central bolted tag connection, which ensures a secure and vibration-resistant terminal connection.
Is this fuse RoHS compliant?
Yes, the product is RoHS compliant, meeting environmental standards for hazardous substances.
Common Search Terms
BS88 fuse, gM type fuse, 690VAC fuse, 460VDC fuse, central bolted tag fuse, motor protection fuse, IEC fuse-link, industrial fuse 63A, high breaking capacity fuse, ceramic fuse-link
| Manufacturer Part Number | B1006619 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340536829 |
| Height | 137mm |
| Width | 26.9mm |
| Depth | 26.9mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTC69V63M80 |
