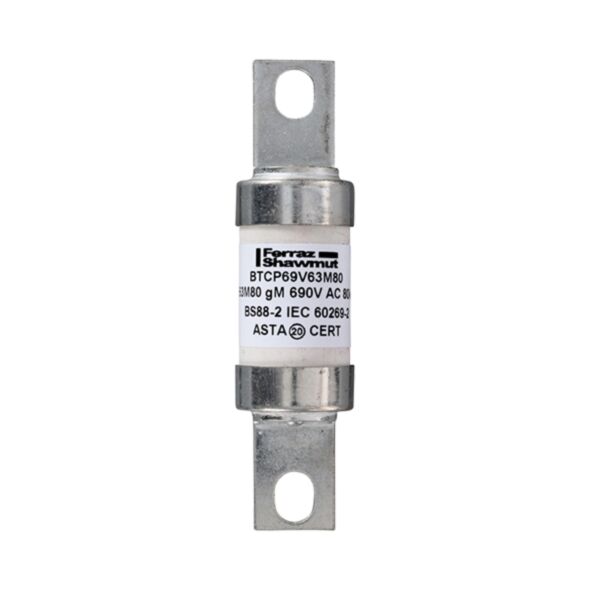

MERSEN FUSE 63M8069A4 BTCP69V63M80
MPN: V1006613
Alt. SKU: BTCP69V63M80
Special Price
£15.60
£13.00
Regular Price
£44.57
MERSEN FUSE 63M8069A4 BTCP69V63M80 is available to buy in increments of 10
Why Choose the BS88 gM Type A4 690VAC 460VDC 63M80A BTCP Offset Tag Fuse-Link?
The BTCP69V63M80 fuse-link meets IEC BS88 standards, providing reliable circuit protection for industrial applications up to 690VAC and 460VDC. Incorporating gM operational characteristics, it ensures enhanced safety and optimal performance in both motor and general protection circuits.
Its robust construction, offset tag configuration, and consistent breaking capacity up to 80A make it ideal for demanding environments. Choose the BTCP69V63M80 for proven durability, secure installation, and dependable overcurrent protection in critical installations.
Technical Specifications
- Item number: V1006613
- Catalogue No: BTCP69V63M80
- Description: British Standard fuse-link IEC BS88 gM Type A4 690VAC 460VDC 63M80A BTCP Offset Tag
- EAN/UPC Code: 3605340536799
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 63M80 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 48500 A²s
- Melting I2t: 8500 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 26.9 mm
- Product Width: 28.5 mm
- Product Length: 111 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 1.13 kg
- Sell Pack Width: 145 mm
- Sell Pack Length: 145 mm
- Sell Pack Height: 60 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.113 kg
- Power Dissipation at Rated Current Value: 5.1 W
Product Code: BTCP69V63M80
Key Benefits
- Compliance with IEC BS88 standards ensures international quality and safety.
- High breaking capacity of 80 kA AC and 40 kA DC for reliable overcurrent protection.
- gM characteristic suitable for motor and general circuit protection.
- Robust ceramic body for enhanced durability in industrial environments.
- Offset tag terminals with tin-plated copper for secure and corrosion-resistant connections.
- Bolted mounting for stable and easy installation.
Compatibility
The BTCP69V63M80 fuse-link is compatible with IEC BS88 Type A4 fuse holders and switchgear designed for gM characteristic fuses. It supports both AC and DC circuits up to the rated voltages, making it suitable for a wide range of industrial electrical systems requiring high breaking capacity and reliable protection.
Applications
- Protection of industrial motor circuits.
- General purpose circuit protection in manufacturing plants.
- Control panels and switchgear assemblies.
- Power distribution systems requiring high breaking capacity.
- Renewable energy installations with DC voltage protection needs.
Frequently Asked Questions
What does the gM characteristic mean for this fuse-link?
The gM characteristic indicates that the fuse-link is suitable for protecting motor circuits as well as general purpose circuits, providing both short-circuit and overload protection.
Can this fuse-link be used in DC applications?
Yes, the BTCP69V63M80 is rated for use in DC circuits up to 460 V, making it versatile for both AC and DC applications.
What type of mounting does this fuse-link require?
This fuse-link is designed for bolted mounting, ensuring a secure and stable connection within fuse holders or switchgear.
Is the fuse-link RoHS compliant?
Yes, the BTCP69V63M80 complies with RoHS directives, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse-link, gM fuse, 690VAC fuse, 460VDC fuse, Type A4 fuse, offset tag fuse, industrial fuse-link, high breaking capacity fuse, ceramic fuse-link, bolted mounting fuse
| Manufacturer Part Number | V1006613 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340536799 |
| Height | 111mm |
| Width | 28.5mm |
| Depth | 26.9mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTCP69V63M80 |
