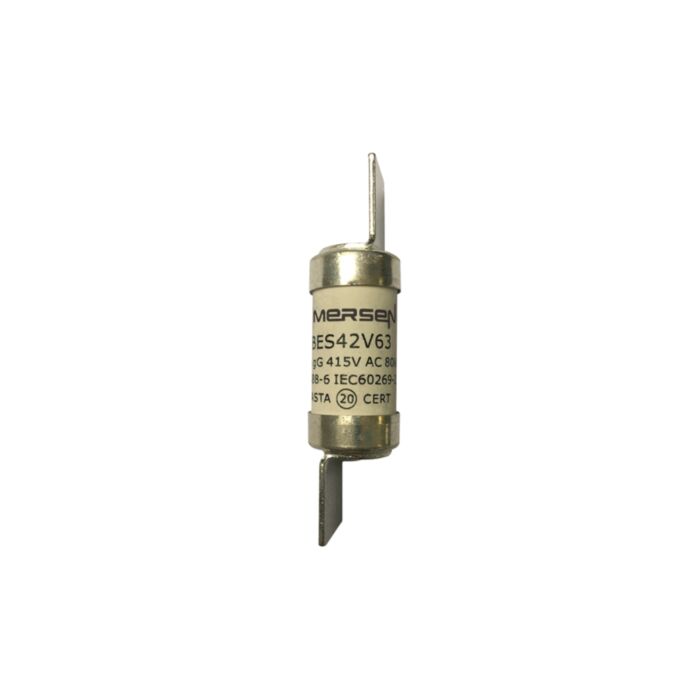

MERSEN FUSE 63F2 BES42V63
MPN: L226353
Alt. SKU: BES42V63
Special Price
£4.79
£3.99
Regular Price
£13.69
MERSEN FUSE 63F2 BES42V63 is available to buy in increments of 10
Why Choose the BS88 gG Type F2 415VAC 63A BES Offset Blade Fuse-Link BES42V63?
Engineered to comply with IEC BS88 standards, the BES42V63 fuse-link offers dependable circuit protection for low voltage industrial and commercial applications up to 415VAC. Its offset blade design ensures secure and easy installation in compatible fuse holders, reducing downtime during maintenance.
With a 63A rating and full-range gG characteristic, this fuse-link is ideal for safeguarding cables and equipment against overloads and short circuits. Rigorously tested and manufactured for consistent performance, the BES42V63 delivers reliable protection that engineers can trust.
Product Code: BES42V63
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- Offset blade terminals for secure and easy installation.
- High breaking capacity of 80 kA AC and 40 kA DC for robust protection.
- Ceramic body ensures excellent insulation and heat resistance.
- RoHS compliant, supporting environmental sustainability.
- Compact size with 17.1 mm diameter and 69 mm length for space-saving.
Compatibility
The BES42V63 fuse-link is compatible with standard BS88 Type F2 fuse holders featuring clip mounting and offset blade terminals. It is suitable for integration into low voltage industrial and commercial electrical panels designed for 415VAC operation. Ensure fuse holders support the 63A rating and offset blade connection for optimal performance.
Applications
- Protection of industrial low voltage power distribution systems.
- Safeguarding motors, transformers, and control equipment.
- Overload and short circuit protection in commercial electrical installations.
- Cable protection in manufacturing and processing plants.
- Use in switchgear and control panels requiring BS88 compliant fuses.
Technical Specifications
- Item number: L226353
- Catalogue No: BES42V63
- Description: British Standard fuse-link IEC BS88 gG Type F2 415VAC 63A BES Offset Blade
- EAN/UPC Code: 3605340268300
- Rated voltage AC IEC: 415 V
- Ampere Rating: 63 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: gG
- Fuse Size: F2
- Mounting: Clip
- Clearing I2t At Rated Voltage: 13900 A²s
- Melting I2t: 4000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 17.1 mm
- Product Length: 69 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.29 kg
- Sell Pack Width: 70 mm
- Sell Pack Length: 130 mm
- Sell Pack Height: 40 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.029 kg
- Power Dissipation at Rated Current Value: 4.7 W
Frequently Asked Questions
What does the gG characteristic mean for this fuse?
The gG characteristic indicates that the fuse provides full-range protection against both overloads and short circuits, making it suitable for general-purpose applications.
Can this fuse-link be used in DC circuits?
While primarily designed for AC applications up to 415V, this fuse has a maximum rated breaking capacity of 40 kA DC, allowing limited use in DC circuits within this rating.
Is the BES42V63 fuse-link RoHS compliant?
Yes, this fuse-link is RoHS compliant, ensuring it meets environmental and safety regulations.
What type of fuse holders are compatible with this fuse-link?
The BES42V63 is compatible with BS88 Type F2 fuse holders that accept offset blade terminals and use clip mounting.
Common Search Terms
BS88 fuse-link 63A, IEC BS88 fuse 415V, Type F2 fuse-link, offset blade fuse, industrial fuse 63 amp, gG characteristic fuse, low voltage fuse-link, ceramic body fuse, high breaking capacity fuse, BES42V63 fuse
| Manufacturer Part Number | L226353 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340268300 |
| Height | 69mm |
| Width | 17.1mm |
| Depth | 17.1mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BES42V63 |
