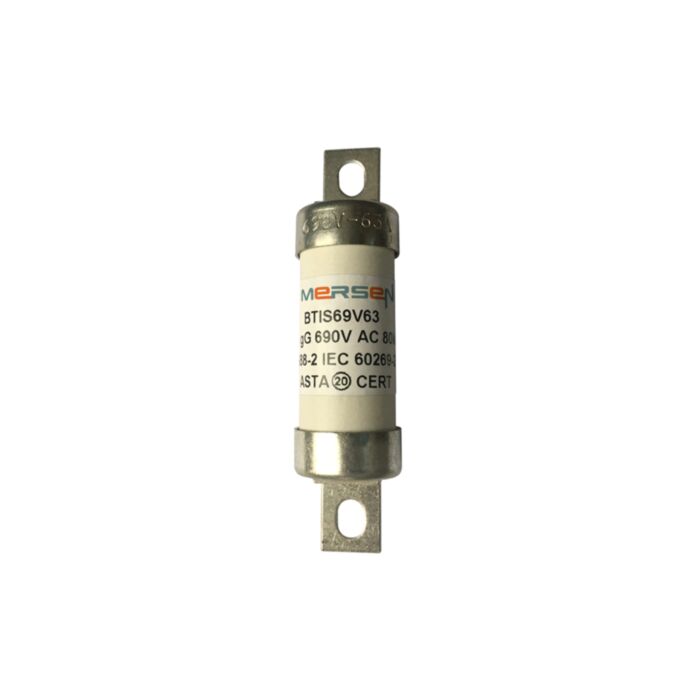

MERSEN FUSE 63A69A3 BTIS69V63
MPN: R1006587
Alt. SKU: BTIS69V63
Special Price
£6.58
£5.48
Regular Price
£18.79
MERSEN FUSE 63A69A3 BTIS69V63 is available to buy in increments of 10
Why Choose the BS88 gG Type A3 690VAC 460VDC 63A BTIS Offset Tag BTIS69V63?
The BTIS69V63 fuse-link is engineered to meet BS88 gG standards, providing reliable circuit protection in industrial and commercial low-voltage applications up to 690VAC and 460VDC. Its robust design ensures consistent operation and long service life in demanding electrical environments.
Featuring an A3 body and offset tag configuration for secure installation, this 63A fuse-link offers excellent current-limiting performance and rapid fault clearance. It is suitable for integration into control panels, distribution boards, and switchgear, delivering assured safety and compliance for critical systems.
Product Code: BTIS69V63
Key Benefits
- Complies with BS88 gG standards for guaranteed safety and reliability.
- High breaking capacity of 80 kA AC and 40 kA DC ensures effective fault clearance.
- Ceramic body provides excellent insulation and durability under harsh conditions.
- Offset tag terminal design allows secure and easy bolted mounting.
- Suitable for both AC and DC applications up to 690 V and 460 V respectively.
- Low power dissipation of 5.9 W reduces energy loss during operation.
Compatibility
The BTIS69V63 fuse-link is compatible with a wide range of industrial and commercial low-voltage switchgear, distribution boards, and control panels designed for BS88 gG type fuses. Its A3 size and offset tag terminals ensure seamless integration with existing fuse holders and mounting arrangements adhering to IEC standards.
Applications
- Industrial motor protection circuits
- Commercial electrical distribution systems
- Control panel circuit protection
- Switchgear assemblies
- Renewable energy systems requiring DC protection
- General low-voltage electrical installations
Technical Specifications
- Item number: R1006587
- Catalogue No: BTIS69V63
- Description: British Standard fuse-link IEC BS88 gG Type A3 690VAC 460VDC 63A BTIS Offset Tag
- EAN/UPC Code: 3605340484823
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- Ampere Rating: 63 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A3
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 23000 A²s
- Melting I2t: 4000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21 mm
- Product Width: 22.5 mm
- Product Length: 87 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.578 kg
- Sell Pack Width: 40 mm
- Sell Pack Length: 140 mm
- Sell Pack Height: 60 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0578 kg
- Power Dissipation at Rated Current Value: 5.9 W
Frequently Asked Questions
What does the gG characteristic mean for this fuse?
The gG characteristic indicates a general-purpose fuse suitable for protection of cables and equipment against overloads and short circuits in industrial and commercial applications.
Can this fuse be used in DC circuits?
Yes, the BTIS69V63 is rated for use in DC circuits up to 460 V, making it suitable for various DC applications including renewable energy systems.
What is the significance of the offset tag terminal?
The offset tag terminal design allows secure bolted connections, ensuring reliable electrical contact and ease of installation in compatible fuse holders.
Is this fuse RoHS compliant?
Yes, the BTIS69V63 fuse-link is RoHS compliant, meeting environmental standards for hazardous substances.
Common Search Terms
BS88 fuse, gG fuse-link, 63A fuse, 690VAC fuse, 460VDC fuse, A3 size fuse, offset tag fuse, industrial fuse-link, low voltage fuse, ceramic fuse-link, high breaking capacity fuse, bolted fuse terminal
| Manufacturer Part Number | R1006587 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340484823 |
| Height | 87mm |
| Width | 22.5mm |
| Depth | 21mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIS69V63 |
