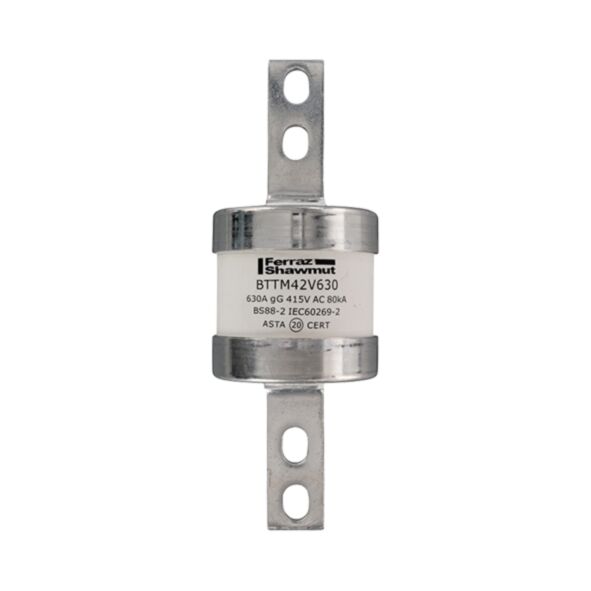

MERSEN FUSE 630C2 BTTM42V630
MPN: M226331
Alt. SKU: BTTM42V630
Special Price
£57.29
£47.74
Regular Price
£163.68
Why Choose the BS88 gG Type C2 415VAC 240VDC 630A BTTM Central Bolted Tag BTTM42V630?
The BTTM42V630 fuse-link delivers reliable circuit protection in demanding industrial and commercial power distribution systems, fully compliant with IEC BS88 standards. Rated for 630A, it ensures fast-acting, dependable safeguarding against overloads and short-circuits at voltages up to 415VAC and 240VDC.
Its robust central bolted tag design facilitates secure installation and optimal electrical contact. Ideal for use within switchgear and control panels, the BTTM42V630 provides long service life, low power dissipation, and trusted performance in critical applications.
Product Code: BTTM42V630
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC ensures effective protection
- Central bolted tag connection for secure and reliable installation
- Compliance with IEC BS88 standards guarantees quality and safety
- Ceramic body provides excellent insulation and durability
- Low power dissipation of 54 W at rated current reduces energy loss
- Suitable for both AC and DC applications
Compatibility
The BTTM42V630 fuse-link is compatible with switchgear and control panels designed for BS88 gG type fuses with C2 size mounting. It is suitable for integration into industrial and commercial electrical distribution systems requiring 630A protection at voltages up to 415VAC and 240VDC.
Applications
- Industrial power distribution networks
- Commercial electrical installations
- Switchgear and control panel protection
- Motor protection circuits
- Renewable energy systems requiring DC protection
Technical Specifications
- Item number: M226331
- Catalogue No: BTTM42V630
- Description: British Standard fuse-link IEC BS88 gG Type C2 415VAC 240VDC 630A BTTM Central Bolted Tag
- EAN/UPC Code: 3605340268089
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 630 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: C2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 4437000 A²s
- Melting I2t: 1546000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 74.4 mm
- Product Length: 212 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 1.1 kg
- Sell Pack Width: 85 mm
- Sell Pack Length: 210 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 1.1 kg
- Power Dissipation at Rated Current Value: 54 W
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse provides full-range protection for cables and general-purpose applications, effectively clearing both overloads and short-circuits.
Can this fuse-link be used in DC circuits?
Yes, the BTTM42V630 is rated for both AC (415 V) and DC (240 V) applications, making it suitable for various power systems.
What is the significance of the central bolted tag mounting?
The central bolted tag ensures a secure and stable electrical connection, improving contact reliability and ease of installation.
Is this fuse RoHS compliant?
Yes, the BTTM42V630 complies with RoHS standards, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse 630A, IEC BS88 gG fuse, 415VAC fuse-link, 240VDC fuse, central bolted tag fuse, industrial fuse 630 amp, low voltage IEC fuse, C2 size fuse-link, high breaking capacity fuse
| Manufacturer Part Number | M226331 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340268089 |
| Height | 212mm |
| Width | 74.4mm |
| Depth | 74.4mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTTM42V630 |
