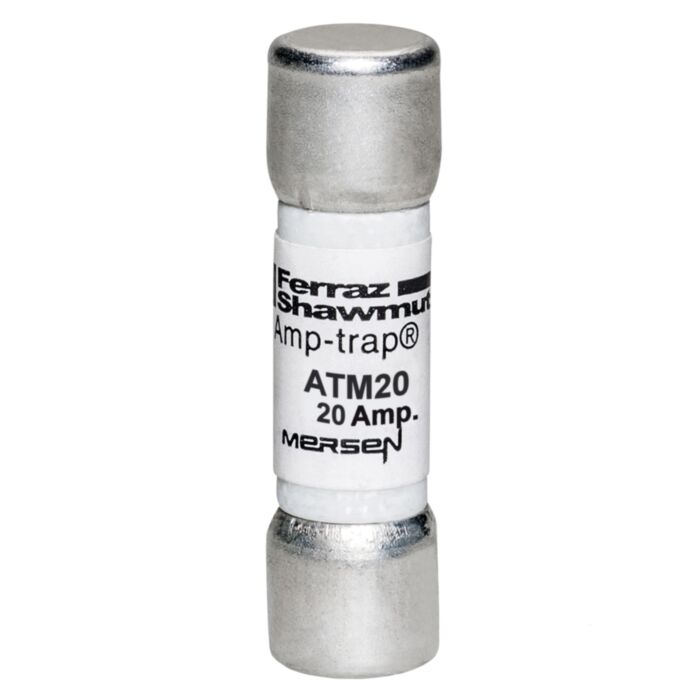

MERSEN FUSE 600V 20A MIDGET FUSE ATM20
MPN: ATM20
Special Price
£7.58
£6.32
Regular Price
£16.85
MERSEN FUSE 600V 20A MIDGET FUSE ATM20 is available to buy in increments of 10
Why Choose the Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 20A Ferrule Amp-Trap®?
The ATM20 Amp-Trap® midget fuse delivers superior short-circuit protection with fast-acting response, making it ideal for safeguarding sensitive circuits in demanding industrial and commercial environments. Rated for both 600VAC and 600VDC at 20A, it ensures reliable performance across varied applications.
Compact ferrule construction enables easy installation in space-limited assemblies, while robust design ensures dependable operation and compliance with global quality standards. Choose the ATM20 for proven overcurrent protection in your electrical systems.
Technical Specifications
- Item number: ATM20
- Description: Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 20A Ferrule Amp-Trap®
- EAN/UPC Code: 782001900700
- Rated voltage AC UL: 600 V
- Rated voltage DC UL: 600 V
- Frequency (Hz): 50/60 Hz
- Ampere Rating: 20 A
- AC or DC: AC/DC
- Fuse Class: Midget
- Speed/Characteristic: Fast-Acting
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 100 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.3 mm
- Product Length: 38.1 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.0816 kg
- Sell Pack Width: 22.4 mm
- Sell Pack Length: 41.4 mm
- Sell Pack Height: 54.1 mm
- Product group: Low Voltage UL/CSA Fuses
- Body/Insulating Material: GMG
- Product Weight: 0.0077 kg
Product Code: ATM20
Key Benefits
- Fast-acting fuse providing rapid response to overcurrent conditions.
- Dual voltage rating for both AC and DC applications up to 600V.
- Compact ferrule design enables installation in tight spaces.
- High breaking capacity of 100 kA ensures robust short-circuit protection.
- Tin-plated copper terminals for reliable electrical connection and corrosion resistance.
- Complies with global quality and safety standards for dependable operation.
Compatibility
The ATM20 fuse is compatible with standard midget fuse holders and clips designed for Amp-Trap® ferrule type fuses. It integrates seamlessly with low voltage UL/CSA fuse systems and is suitable for use in both AC and DC electrical circuits within the specified voltage and current ratings.
Applications
- Protection of control circuits in industrial machinery.
- Safeguarding sensitive electronic equipment in commercial installations.
- Use in power distribution panels requiring fast-acting overcurrent protection.
- Ideal for use in renewable energy systems with DC voltage requirements.
- General purpose protection in HVAC and lighting control systems.
Frequently Asked Questions
What is the maximum voltage rating for the ATM20 fuse?
The ATM20 fuse is rated for a maximum of 600 volts AC and 600 volts DC.
Can this fuse be used in both AC and DC circuits?
Yes, the ATM20 is designed for use in both AC and DC applications.
What is the breaking capacity of this fuse?
The fuse has a maximum interrupting rating of 100 kA at rated voltage.
What type of mounting does the ATM20 fuse require?
It is designed for clip mounting in compatible fuse holders.
Is the ATM20 fuse suitable for use in renewable energy systems?
Yes, its DC rating and fast-acting characteristics make it suitable for renewable energy applications.
Common Search Terms
ATM20 fuse, Amp-Trap® midget fuse, fast-acting fuse 20A, 600V fuse, ferrule fuse, low voltage fuse, industrial fuse, DC rated fuse, UL fuse, overcurrent protection fuse
| Manufacturer Part Number | ATM20 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 0782001900700 |
| Height | 38.1mm |
| Width | 10.3mm |
| Depth | 10.3mm |
| HS Code | 85361050 |
| Country of Manufacture | Mexico |
| Manufacturer | Mersen |
