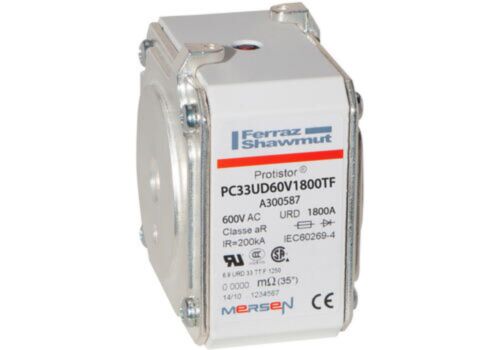

MERSEN FUSE 6 URD 33 TT F 1800 PC33UD60V1800TF
MPN: A300587
Alt. SKU: PC33UD60V1800TF
Special Price
£224.98
£187.48
Regular Price
£409.04
MERSEN FUSE 6 URD 33 TT F 1800 PC33UD60V1800TF is available to buy in increments of 3
Why Choose the Square Body High-Speed Fuse Protistor® Size 33 aR 600 VAC IEC 650 VAC UL 1800 A With Striker Flush Ends Metric Threads PC33UD60V1800TF?
Engineered for critical protection of power semiconductors, the PC33UD60V1800TF delivers rapid, reliable interruption with a high breaking capacity of up to 1800 A at 600 VAC (IEC) and 650 VAC (UL). The square body design enables compact installation while striker flush ends with metric threads ensure secure, vibration-resistant mounting in demanding industrial environments.
Tested to IEC and UL standards, this Protistor® fuse provides precise aR class fast-acting performance for maximum equipment uptime and reduced risk of thermal damage. Choose the PC33UD60V1800TF to enhance protection, simplify maintenance, and support compliance in high-speed power electronics applications.
Product Code: A300587
Key Benefits
- High breaking capacity up to 1800 A ensures reliable protection of power semiconductors.
- Compact square body design allows for space-saving installations.
- Striker flush ends with metric threads provide secure, vibration-resistant mounting.
- Fast-acting aR characteristic minimises damage and downtime.
- Compliant with IEC and UL standards for assured quality and safety.
- Indication system with striker for easy fuse status monitoring.
- Silver-plated brass terminals enhance conductivity and durability.
Compatibility
This fuse is compatible with semiconductor protection applications requiring size 33 aR fuses rated for up to 1800 A at 600 V AC IEC and 650 V AC UL. It is designed for bolted mounting in industrial equipment and power electronics systems where fast and reliable interruption is critical.
Applications
- Protection of power semiconductors such as thyristors and diodes.
- Industrial motor drives and inverters.
- Power supply units and converters.
- Renewable energy systems including solar and wind power electronics.
- High-speed switching devices in manufacturing automation.
Technical Specifications
- Item number: A300587
- Catalogue No: PC33UD60V1800TF
- Description: Square Body High-Speed Fuse Protistor® Size 33 aR 600VAC IEC 650VAC UL 1800A With Striker Flush ends metric threads
- EAN/UPC Code: 3605340330700
- Rated voltage AC UL: 650 V
- Rated voltage AC IEC: 600 V
- Ampere Rating: 1800 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aR
- Fuse Size: 33
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 3870 kA²s
- Melting I2t: 720 kA²s
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Design Details: Reinforced Terminal
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Brass
- Connection/Terminal Type: Flush ends
- Product Width: 73 mm
- Product Length: 50.6 mm
- Product Height: 78.5 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 2.4168 kg
- Sell Pack Width: 85 mm
- Sell Pack Length: 245 mm
- Sell Pack Height: 95 mm
- Product group: Semiconductor Protection Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.8056 kg
- Power Dissipation at Rated Current Value: 225 W
Frequently Asked Questions
What does the aR speed/characteristic mean?
The aR rating indicates a semiconductor protection fuse with fast-acting characteristics designed to protect power semiconductors by interrupting fault currents quickly to prevent damage.
Is this fuse suitable for DC applications?
No, this fuse is rated for AC use only as indicated in the technical specifications.
What type of indication system does this fuse have?
It features a striker indication system that provides a clear visual signal when the fuse has operated.
Can this fuse be used in environments with vibration?
Yes, the striker flush ends with metric threads ensure secure and vibration-resistant mounting suitable for demanding industrial environments.
Common Search Terms
high-speed fuse, semiconductor protection fuse, Protistor fuse, size 33 fuse, aR fuse, 1800A fuse, 600VAC fuse, 650VAC fuse, striker fuse, flush end fuse, bolted mounting fuse, ceramic body fuse, power electronics fuse
| Manufacturer Part Number | A300587 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 3605340330700 |
| Height | 50.6mm |
| Width | 73mm |
| Depth | 78.5mm |
| HS Code | 85361090 |
| Manufacturer | Mersen |
| Alternative Product SKU | PC33UD60V1800TF |
