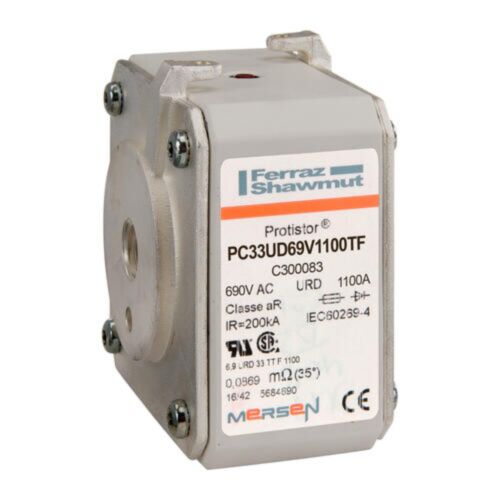

MERSEN FUSE 6,9 URD 33 TT F 1100 PC33UD69V1100TF
MPN: C300083
Alt. SKU: PC33UD69V1100TF
Special Price
£156.65
£130.54
Regular Price
£284.81
MERSEN FUSE 6,9 URD 33 TT F 1100 PC33UD69V1100TF is available to buy in increments of 3
Why Choose the Square Body High-Speed Fuse Protistor® Size 33 aR 690VAC IEC 700VAC UL 1100A With Striker Flush Ends Metric Threads PC33UD69V1100TF?
Engineered for robust protection in demanding industrial applications, the PC33UD69V1100TF delivers reliable short-circuit safeguarding for power semiconductors and critical equipment. Its high interrupting capacity at 690VAC IEC and 700VAC UL, combined with an impressive 1100A rating, ensures operational safety and minimises downtime.
The compact square body design with integrated striker and flush ends facilitates precise tripping and easy installation using metric threads. Fully compliant with IEC and UL standards, this fuse enables straightforward integration into modern control panels and power distribution systems.
Product Code: PC33UD69V1100TF
Key Benefits
- High interrupting capacity up to 700VAC UL and 690VAC IEC for superior protection.
- Robust 1100A rating suitable for high-power semiconductor applications.
- Integrated striker indication system for clear fuse status monitoring.
- Flush end terminals with metric threads enable secure and easy installation.
- Ceramic body ensures durability and excellent insulating properties.
- Compliance with IEC and UL standards guarantees quality and safety.
Compatibility
This fuse is compatible with IEC and UL rated industrial control panels and power distribution systems requiring size 33 aR high-speed semiconductor protection. It fits bolted mounting configurations and is designed to interface seamlessly with equipment utilising metric thread terminals.
Applications
- Protection of power semiconductors such as thyristors and diodes.
- Industrial motor drives and variable speed controllers.
- Power distribution units in manufacturing plants.
- Renewable energy inverters and converters.
- High-speed switching devices requiring fast-acting fuse protection.
Technical Specifications
- Item number: C300083
- Catalogue No: PC33UD69V1100TF
- Description: Square Body High-Speed Fuse Protistor® Size 33 aR 690VAC IEC 700VAC UL 1100A With Striker Flush ends metric threads
- EAN/UPC Code: 3605340323252
- Rated voltage AC UL: 700 V
- Rated voltage AC IEC: 690 V
- Ampere Rating: 1100 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aR
- Fuse Size: 33
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 1390 kA²s
- Melting I2t: 240 kA²s
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Design Details: Standard Terminal
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Brass
- Connection/Terminal Type: Flush ends
- Product Width: 73 mm
- Product Length: 50.6 mm
- Product Height: 78.5 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 2.4168 kg
- Sell Pack Width: 85 mm
- Sell Pack Length: 245 mm
- Sell Pack Height: 95 mm
- Product group: Semiconductor Protection Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.8056 kg
- Power Dissipation at Rated Current Value: 135 W
Frequently Asked Questions
What is the primary use of this fuse?
This fuse is primarily used for protecting power semiconductors and critical industrial equipment from short circuits and overcurrent conditions.
Is this fuse compatible with both IEC and UL standards?
Yes, the fuse is fully compliant with IEC 690VAC and UL 700VAC standards, ensuring broad compatibility.
What mounting type does this fuse require?
The fuse is designed for bolted mounting, utilising metric thread flush end terminals for secure installation.
Does this fuse have an indication system?
Yes, it features an integrated striker indication system that clearly signals fuse operation status.
Can this fuse be used in DC applications?
No, this fuse is rated for AC applications only.
Common Search Terms
high-speed fuse, semiconductor protection fuse, size 33 fuse, 1100A fuse, 690VAC fuse, 700VAC fuse, aR fuse, fuse with striker, flush end fuse, metric thread fuse, industrial fuse, ceramic body fuse, bolted mounting fuse
| Manufacturer Part Number | C300083 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 3605340323252 |
| Height | 50.6mm |
| Width | 73mm |
| Depth | 78.5mm |
| HS Code | 85361090 |
| Manufacturer | Mersen |
| Alternative Product SKU | PC33UD69V1100TF |
