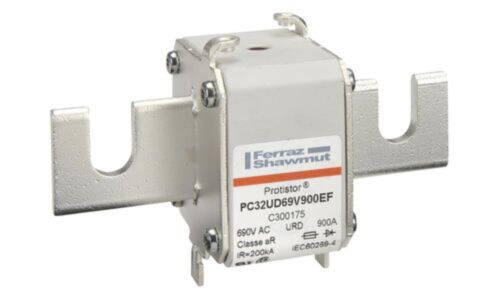

MERSEN FUSE 6,9 URD 32 E F 0900 6,9URD32EF0900
MPN: C300175
Alt. SKU: PC32UD69V900EF
Special Price
£138.41
£115.34
Regular Price
£251.64
MERSEN FUSE 6,9 URD 32 E F 0900 6,9URD32EF0900 is available to buy in increments of 3
Why Choose the Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 900A With Striker Open Slot Blades PC32UD69V900EF?
The Protistor® PC32UD69V900EF offers rapid, reliable protection for sensitive power electronics in demanding industrial environments, supporting operational voltages up to 690VAC (IEC) and 700VAC (UL) with a high 900A rating. Its aR characteristic ensures effective circuit safeguarding against short-circuit events, minimising downtime and reducing risk to critical equipment.
Engineered for straightforward installation with open slot blades and integrated striker functionality, this fuse enables efficient status indication and replacement. Conforming to IEC and UL standards, it guarantees performance consistency and safety compliance for advanced electrical systems.
Technical Specifications
- Item number: C300175
- Catalogue No: PC32UD69V900EF
- Description: Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 900A With Striker Open Slot Blades
- EAN/UPC Code: 3605340324280
- Rated voltage AC UL: 700 V
- Rated voltage AC IEC: 690 V
- Ampere Rating: 900 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aR
- Fuse Size: 32
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 990 kA²s
- Melting I2t: 170 kA²s
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Open Slot Blades
- Product Width: 59 mm
- Product Length: 126 mm
- Product Height: 65 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 1.7148 kg
- Sell Pack Width: 160 mm
- Sell Pack Length: 202 mm
- Sell Pack Height: 80 mm
- Product group: Semiconductor Protection Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.5716 kg
- Power Dissipation at Rated Current Value: 125 W
Product Code: C300175
Key Benefits
- High-speed aR characteristic for effective short-circuit protection
- Supports high operational voltages up to 700VAC ensuring broad compatibility
- Integrated striker indication for quick fuse status verification
- Open slot blades facilitate easy and secure bolted mounting
- Ceramic body provides robust insulation and durability
- Complies with IEC and UL standards for safety and reliability
Compatibility
This fuse is compatible with industrial electrical systems requiring semiconductor protection fuses of size 32, rated up to 900A and voltages up to 700VAC. It is suitable for use in equipment conforming to IEC and UL standards, particularly where bolted mounting and striker indication are required.
Applications
- Protection of power electronics and semiconductor devices
- Industrial motor drives and variable frequency drives (VFDs)
- High-speed circuit protection in manufacturing plants
- Electrical distribution panels requiring rapid fuse response
- Renewable energy systems and power conversion units
Frequently Asked Questions
What does the aR characteristic mean for this fuse?
The aR (partial-range) characteristic indicates that the fuse is designed to protect against short-circuit currents but not overload currents, making it ideal for semiconductor protection.
Can this fuse be used in DC applications?
No, this fuse is specified for AC applications only, as indicated in the technical specifications.
How does the striker indication system work?
The striker indication system provides a mechanical indication when the fuse has blown, allowing for quick visual identification and safe replacement.
Is this fuse RoHS compliant?
Yes, the PC32UD69V900EF fuse is RoHS compliant, ensuring it meets environmental and safety standards.
Common Search Terms
High-speed fuse, semiconductor protection fuse, size 32 fuse, 900A fuse, 690VAC fuse, 700VAC fuse, Protistor fuse, aR fuse, striker indication fuse, bolted fuse, ceramic body fuse, industrial electrical fuse
| Manufacturer Part Number | C300175 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 3605340324280 |
| Height | 126mm |
| Width | 59mm |
| Depth | 65mm |
| HS Code | 85361090 |
| Country of Manufacture | France |
| Manufacturer | Mersen |
| Alternative Product SKU | PC32UD69V900EF |
