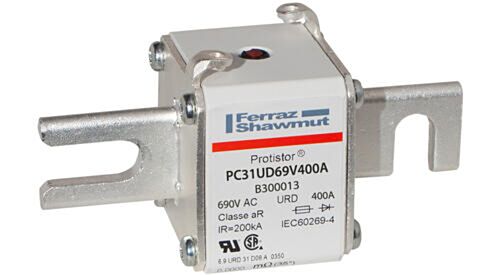

MERSEN FUSE 6,9 URD 31 D08 A 0400 6,9URD31D08A0400
MPN: B300013
Alt. SKU: PC31UD69V400A
Special Price
£84.00
£70.00
Regular Price
£152.72
MERSEN FUSE 6,9 URD 31 D08 A 0400 6,9URD31D08A0400 is available to buy in increments of 3
Why Choose the Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 400A With Striker DIN 80 Blades PC31UD69V400A?
The Square Body High-Speed Fuse Protistor® Size 31 is engineered for the reliable protection of power semiconductors in demanding industrial environments. Featuring a 400A current rating, this fuse delivers rapid circuit interruption and is certified for 690VAC (IEC) and 700VAC (UL) applications, ensuring compliance with international standards.
With an integrated striker for remote indication and robust DIN 80 blade terminations, the PC31UD69V400A supports secure installation and straightforward maintenance. Its high breaking capacity and compact square-body design make it ideal for critical power electronics, drives, and inverter systems that require fast-acting fault response.
Product Code: PC31UD69V400A
Key Benefits
- High-speed aR characteristic ensures rapid fault clearance to protect sensitive semiconductors.
- Certified for both IEC 690VAC and UL 700VAC applications, suitable for global use.
- Integrated striker indication system enables easy remote fault signalling.
- Robust ceramic body with silver-plated copper DIN 80 blade terminals for reliable connections.
- Compact square body design saves panel space while maintaining high breaking capacity (200 kA).
- Bolted mounting ensures secure and stable installation in demanding environments.
Compatibility
This fuse is compatible with industrial power semiconductor devices, including IGBTs, thyristors, and diodes used in drives, inverters, and power converters. It fits fuse holders and switchgear designed for Size 31 DIN 80 blade fuses and is suitable for systems requiring UL and IEC voltage ratings up to 700VAC.
Applications
- Protection of power semiconductors in industrial drives and motor controllers.
- Inverter and converter circuits in renewable energy systems.
- High-speed fault protection in power electronics and automation equipment.
- Electrical panels requiring compact, high breaking capacity fuses.
- Industrial machinery and process control systems.
Technical Specifications
- Item number: B300013
- Catalogue No: PC31UD69V400A
- Description: Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 400A With Striker DIN 80 Blades
- EAN/UPC Code: 3605340322378
- Rated voltage AC UL: 700 V
- Rated voltage AC IEC: 690 V
- Ampere Rating: 400 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aR
- Fuse Size: 31
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 110000 A²s
- Melting I2t: 19000 A²s
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: DIN 80 Blades
- Product Width: 51 mm
- Product Length: 110 mm
- Product Height: 56.5 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 1.1598 kg
- Sell Pack Width: 143 mm
- Sell Pack Length: 167 mm
- Sell Pack Height: 64 mm
- Product group: Semiconductor Protection Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.3866 kg
- Power Dissipation at Rated Current Value: 68 W
Frequently Asked Questions
What does the aR characteristic mean for this fuse?
The aR (partial range) characteristic means the fuse is designed specifically for semiconductor protection, providing high-speed interruption of short-circuit currents while allowing for low overload currents to pass without nuisance tripping.
Can this fuse be used in DC applications?
No, this particular fuse is rated for AC applications only, as specified in the technical specifications.
How does the striker indication system work?
The striker is a mechanical indicator that activates upon fuse operation, allowing remote signalling devices to detect a blown fuse without direct visual inspection.
Is this fuse RoHS compliant?
Yes, the PC31UD69V400A fuse is RoHS compliant, meeting environmental and safety standards.
Common Search Terms
high-speed fuse, semiconductor fuse, aR fuse, 400A fuse, 690VAC fuse, 700VAC fuse, DIN 80 blade fuse, striker fuse, power electronics protection, industrial fuse, ceramic body fuse, bolted mounting fuse
| Manufacturer Part Number | B300013 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 3605340322378 |
| Height | 110mm |
| Width | 51mm |
| Depth | 56.5mm |
| HS Code | 85361090 |
| Country of Manufacture | France |
| Manufacturer | Mersen |
| Alternative Product SKU | PC31UD69V400A |
