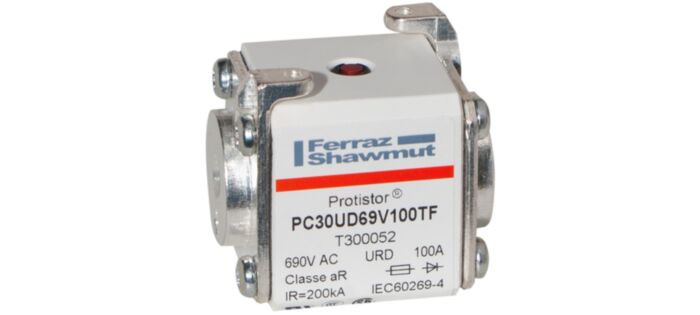

MERSEN FUSE 6,9 URD 30 TT F 0100 PC30UD69V100TF
MPN: T300052
Alt. SKU: PC30UD69V100TF
Special Price
£47.15
£39.29
Regular Price
£85.73
MERSEN FUSE 6,9 URD 30 TT F 0100 PC30UD69V100TF is available to buy in increments of 3
Why Choose the Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 100A With Striker Flush Ends Metric Threads PC30UD69V100TF?
Engineered for reliable protection of power semiconductors, the PC30UD69V100TF high-speed fuse offers precise circuit safeguarding in demanding industrial environments. Its robust square body design ensures optimal thermal performance and mechanical strength for harsh applications.
Certified to IEC 690VAC and UL 700VAC standards, with a 100A rating and integrated striker for reliable status indication, this fuse enables secure installation using metric threads and flush ends, reducing downtime and supporting system longevity.
Product Code: T300052
Key Benefits
- High-speed protection tailored for sensitive power semiconductor devices
- Robust ceramic body ensures durability in harsh industrial conditions
- Integrated striker provides clear and reliable fuse status indication
- Flush end silver-plated brass terminals facilitate secure, low-resistance connections
- Certified to IEC and UL voltage standards for broad compliance
- Metric thread mounting reduces installation time and enhances system reliability
- High breaking capacity of 200 kA ensures safe interruption of fault currents
Compatibility
This fuse is compatible with semiconductor protection systems requiring size 30 aR fuses rated at 690VAC IEC and 700VAC UL. It is designed for bolted mounting applications and integrates seamlessly into power electronics assemblies requiring high-speed fuse protection with striker indication.
Applications
- Protection of power semiconductors in industrial drives and inverters
- Safeguarding rectifiers, thyristors, and IGBT modules
- Use in power supply units and UPS systems
- Industrial automation and process control equipment
- Renewable energy systems such as solar inverters and wind turbines
Technical Specifications
- Item number: T300052
- Catalogue No: PC30UD69V100TF
- Description: Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 100A With Striker Flush ends metric threads
- EAN/UPC Code: 3605340322767
- Rated voltage AC UL: 700 V
- Rated voltage AC IEC: 690 V
- Ampere Rating: 100 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aR
- Fuse Size: 30
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 2.7 kA²s
- Melting I2t: 0.47 kA²s
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Brass
- Connection/Terminal Type: Flush ends
- Product Width: 40 mm
- Product Length: 50.6 mm
- Product Height: 48 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 0.7389 kg
- Sell Pack Width: 85 mm
- Sell Pack Length: 135 mm
- Sell Pack Height: 55 mm
- Product group: Semiconductor Protection Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.2463 kg
- Power Dissipation at Rated Current Value: 26 W
Frequently Asked Questions
What does the 'aR' speed characteristic mean?
The 'aR' characteristic indicates a high-speed fuse designed specifically for semiconductor protection, capable of interrupting short-circuit currents rapidly to prevent damage.
Is this fuse suitable for DC applications?
No, this fuse is rated for AC applications only, as indicated in the technical specifications.
How does the striker indication system work?
The integrated striker provides a mechanical indication by triggering a visible striker when the fuse blows, allowing quick visual status checks without disassembly.
Can this fuse be used in renewable energy systems?
Yes, it is suitable for protecting power semiconductors in renewable energy applications such as solar inverters and wind turbines.
Common Search Terms
high-speed fuse, semiconductor protection fuse, size 30 fuse, 100A fuse, 690VAC fuse, 700VAC fuse, aR fuse, striker fuse, ceramic fuse, flush end fuse, metric thread fuse, bolted mounting fuse, power electronics fuse
| Manufacturer Part Number | T300052 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 3605340322767 |
| Height | 50.6mm |
| Width | 40mm |
| Depth | 48mm |
| HS Code | 85361090 |
| Country of Manufacture | France |
| Manufacturer | Mersen |
| Alternative Product SKU | PC30UD69V100TF |
