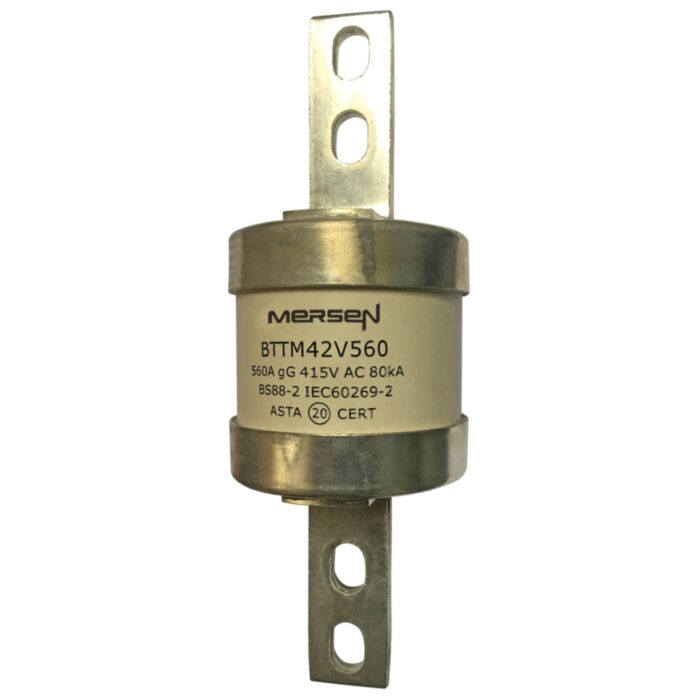

MERSEN FUSE 560C2 BTTM42V560
MPN: L226330
Alt. SKU: BTTM42V560
Special Price
£53.15
£44.29
Regular Price
£151.85
Why Choose the BS88 gG Type C2 415VAC 240VDC 560A BTTM Central Bolted Tag (BTTM42V560)?
The BTTM42V560 fuse-link is engineered to IEC BS88 standards, delivering robust circuit protection for low and medium voltage industrial applications up to 415VAC and 240VDC. Its gG classification ensures full-range protection against overloads and short circuits, supporting reliable operation in demanding electrical environments.
Featuring a 560A current rating and central bolted tag design, this fuse-link provides secure, stable connection and easy installation. Trusted for its consistent performance and compliance, it is an optimal solution for critical electrical protection in distribution panels and industrial power systems.
Technical Specifications
- Item number: L226330
- Catalogue No: BTTM42V560
- Description: British Standard fuse-link IEC BS88 gG Type C2 415VAC 240VDC 560A BTTM Central Bolted Tag
- EAN/UPC Code: 3605340268072
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 560 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: C2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 3360000 A²s
- Melting I2t: 1200000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 74.4 mm
- Product Length: 212 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 1.1 kg
- Sell Pack Width: 85 mm
- Sell Pack Length: 210 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 1.1 kg
- Power Dissipation at Rated Current Value: 50 W
Product Code: BTTM42V560
Key Benefits
- Complies with IEC BS88 standards ensuring high reliability and safety.
- gG characteristic provides full-range protection against overloads and short circuits.
- Central bolted tag mounting offers secure and stable connection.
- Suitable for both AC (415V) and DC (240V) applications.
- Ceramic body material ensures excellent insulation and durability.
- High breaking capacity (80 kA AC, 40 kA DC) for demanding industrial environments.
- RoHS compliant, meeting environmental and safety regulations.
Compatibility
The BTTM42V560 fuse-link is compatible with standard BS88 fuse holders and switchgear designed for C2 size fuses. It is suitable for integration into low voltage industrial electrical distribution panels and systems requiring IEC-compliant protection devices.
Applications
- Industrial power distribution systems
- Motor protection circuits
- Control panels and switchgear
- Renewable energy installations
- Commercial and manufacturing electrical systems
Frequently Asked Questions
What does the gG rating mean?
The gG rating indicates that the fuse provides full-range protection for both overloads and short circuits, making it suitable for general-purpose applications.
Can this fuse-link be used for both AC and DC circuits?
Yes, the BTTM42V560 is rated for use in both AC (up to 415V) and DC (up to 240V) circuits.
What is the significance of the central bolted tag mounting?
The central bolted tag ensures a secure and stable electrical connection, reducing the risk of loose contacts and improving safety and reliability.
Is this fuse RoHS compliant?
Yes, the fuse-link meets RoHS compliance standards, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse, gG fuse-link, 560A fuse, IEC fuse-link, C2 size fuse, bolted tag fuse, industrial fuse, low voltage fuse, 415VAC fuse, 240VDC fuse
