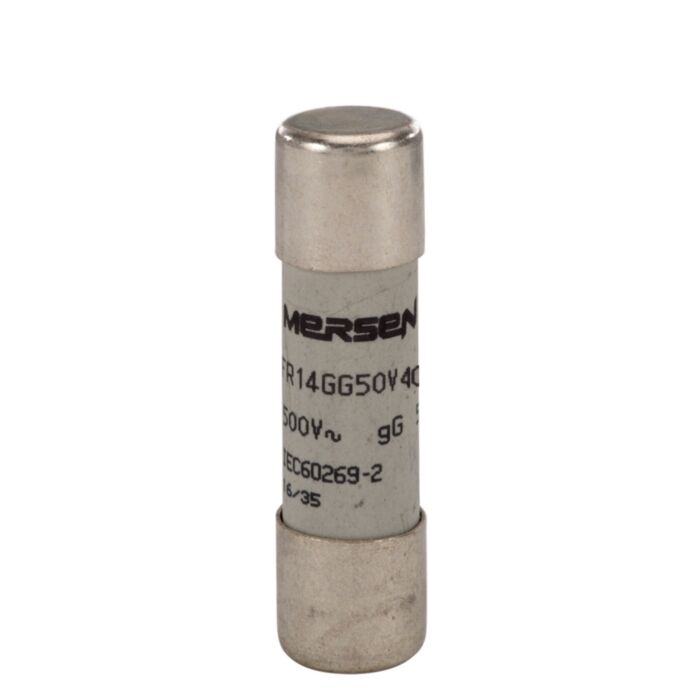

MERSEN FUSE 500V CP 14X51 GG 40A S/I FR14GG50V40
MPN: X218198
Alt. SKU: FR14GG50V40
Special Price
£1.17
£0.9790
Regular Price
£2.14
MERSEN FUSE 500V CP 14X51 GG 40A S/I FR14GG50V40 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link gG Size 14x51 IEC 500VAC 40A With Striker FR14GG50V40P?
Engineered for dependable circuit protection, this cylindrical fuse-link meets IEC standards and is rated for 500VAC and up to 40A. Its robust construction ensures reliable operation in a range of industrial and commercial installations.
The integrated striker facilitates easy indication and remote signalling capabilities, streamlining maintenance and minimising downtime. Select the FR14GG50V40P for proven performance and enhanced system safety.
Product Code: FR14GG50V40P
Key Benefits
- Reliable circuit protection with IEC compliance.
- High breaking capacity of 120 kA AC and 100 kA DC.
- Integrated striker for clear indication and remote signalling.
- Robust ceramic body for durability and safety.
- Silver-plated copper terminals ensure excellent conductivity.
- Compact size (14x51 mm) suitable for standard fuse holders.
Compatibility
This fuse-link is compatible with standard IEC 14x51 fuse holders and clip mounting systems. It is suitable for use in both AC and DC circuits up to 500 V and 250 V respectively, making it ideal for a wide range of industrial electrical installations requiring gG characteristic fuses.
Applications
- Industrial motor protection circuits.
- Control panels and distribution boards.
- Commercial electrical installations.
- Protection of transformers and capacitors.
- General purpose low voltage circuit protection.
Technical Specifications
- Item number: P201815
- Catalogue No: FR14GG50V40P
- Description: Cylindrical fuse-link gG Size 14x51 IEC 500VAC 40A With Striker
- EAN/UPC Code: 8430399008615
- Rated voltage AC IEC: 500 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 40 A
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: 14x51
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Max. Rated Breaking Capacity DC: 100 kA @ 250 V, L/R = 15 ms
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 14.3 mm
- Product Length: 51 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.21 kg
- Sell Pack Width: 75 mm
- Sell Pack Length: 104 mm
- Sell Pack Height: 16 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.021 kg
- Power Dissipation at Rated Current Value: 4 W
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse is a general purpose fuse-link suitable for protection of cables and equipment against overload and short-circuit currents.
Can this fuse be used in DC circuits?
Yes, this fuse is rated for both AC (500 V) and DC (250 V) applications, making it versatile for various circuit types.
What is the purpose of the striker indication system?
The striker provides a visual and remote indication of fuse operation, allowing quick identification of a blown fuse to reduce downtime during maintenance.
What is the breaking capacity of this fuse?
The fuse has a maximum breaking capacity of 120 kA for AC and 100 kA for DC circuits, ensuring safe interruption of high fault currents.
Common Search Terms
cylindrical fuse-link, gG fuse 40A, 14x51 fuse size, IEC fuse 500VAC, fuse with striker, industrial fuse-link, clip mount fuse, silver-plated copper terminal fuse, ceramic fuse-link
| Manufacturer Part Number | X218198 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399008356 |
| Height | 51mm |
| Width | 14.3mm |
| Depth | 14.3mm |
| HS Code | 85361050 |
| Country of Manufacture | Tunisia |
| Manufacturer | Mersen |
| Alternative Product SKU | FR14GG50V40 |
