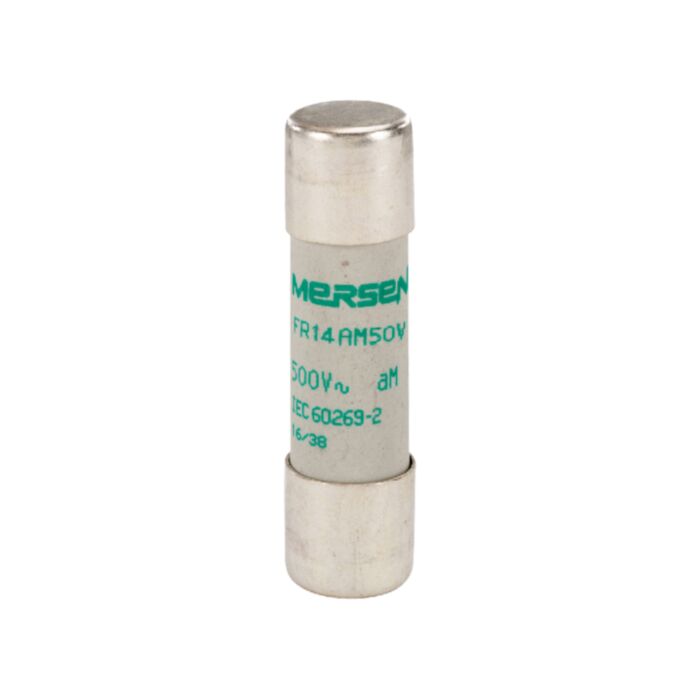

MERSEN FUSE 500V CP 14X51 AM 32A S/I FR14AM50V32
MPN: M222214
Alt. SKU: FR14AM50V32
Special Price
£1.19
£0.9955
Regular Price
£2.17
MERSEN FUSE 500V CP 14X51 AM 32A S/I FR14AM50V32 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link aM Size 14x51 IEC 500VAC 32A FR14AM50V32?
This cylindrical fuse-link delivers reliable protection for motor circuits, conforming to IEC standards for industrial safety and performance. Its robust construction ensures a high rupture capacity and consistent operation at 500VAC, handling up to 32A.
With compact 14x51 mm dimensions, the FR14AM50V32 is ideal for space-constrained panels, supporting rapid and straightforward installation. Choose this fuse-link for dependable circuit protection and enhanced operational continuity in demanding environments.
Technical Specifications
- Item number: M222214
- Catalogue No: FR14AM50V32
- Description: Cylindrical fuse-link aM Size 14x51 IEC 500VAC 32A
- EAN/UPC Code: 8430399008752
- Rated voltage AC IEC: 500 V
- Ampere Rating: 32 A
- AC or DC: AC
- Speed/Characteristic: aM
- Fuse Size: 14x51
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 14.3 mm
- Product Length: 51 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.21 kg
- Sell Pack Width: 75 mm
- Sell Pack Length: 104 mm
- Sell Pack Height: 16 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.021 kg
- Power Dissipation at Rated Current Value: 2.05 W
Product Code: FR14AM50V32
Key Benefits
- High breaking capacity of 120 kA ensures maximum safety and protection.
- Compact 14x51 mm size fits easily into space-limited installations.
- Silver-plated copper terminals provide excellent conductivity and corrosion resistance.
- Ceramic body offers superior insulation and thermal stability.
- Clip mounting allows for quick and secure installation.
- Designed to IEC standards for reliable and consistent performance.
Compatibility
The FR14AM50V32 fuse-link is compatible with standard IEC 14x51 fuse holders and clips designed for aM characteristic fuses. It is suitable for use in motor protection circuits and industrial control panels operating at up to 500VAC and 32A.
Applications
- Motor circuit protection in industrial machinery.
- Control and distribution panels in manufacturing plants.
- Protection of electrical equipment in commercial installations.
- General low voltage industrial fuse applications requiring aM characteristic.
Frequently Asked Questions
What does the 'aM' characteristic mean?
The 'aM' characteristic indicates that the fuse is a motor protection fuse designed to clear short-circuits rapidly while allowing temporary motor starting currents without nuisance tripping.
Can this fuse be used on DC circuits?
No, the FR14AM50V32 is rated for AC use only, as specified in the technical specifications.
What is the maximum voltage this fuse can handle?
This fuse is rated for a maximum AC voltage of 500 V according to IEC standards.
How many fuses come in a pack?
The sell pack quantity is 10 fuses per pack.
Common Search Terms
14x51 fuse, cylindrical fuse-link, motor protection fuse, 32A fuse, 500VAC fuse, aM fuse, IEC fuse-link, clip mounting fuse, ceramic body fuse, high breaking capacity fuse
| Manufacturer Part Number | M222214 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399008752 |
| Height | 51mm |
| Width | 14.3mm |
| Depth | 14.3mm |
| HS Code | 85361050 |
| Country of Manufacture | Tunisia |
| Manufacturer | Mersen |
| Alternative Product SKU | FR14AM50V32 |
