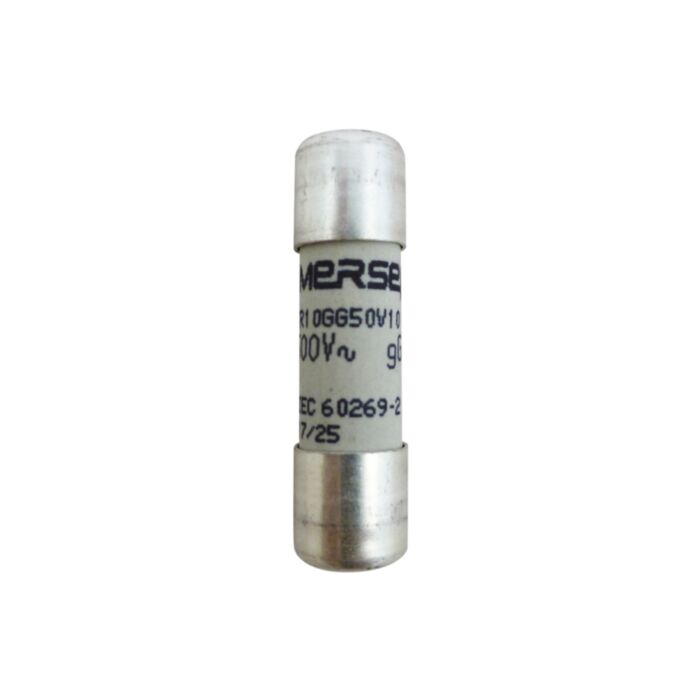

MERSEN FUSE 500V CP 10X38 GG 10A S/I S218194
MPN: S218194
Alt. SKU: FR10GG50V10
Special Price
£0.6732
£0.5610
Regular Price
£1.22
MERSEN FUSE 500V CP 10X38 GG 10A S/I S218194 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link gG Size 10x38 IEC 500VAC 10A With Visual Indicator FR10GG50V10I?
This robust cylindrical fuse-link is engineered for reliable circuit protection in low voltage industrial applications, providing a 10A rating at up to 500VAC in accordance with IEC standards. Its compact 10x38mm size enables straightforward integration into existing fuse holders and panels.
The integrated visual indicator offers immediate status verification for rapid fault identification and reduced downtime. Ideal for safeguarding cables and equipment, the FR10GG50V10I ensures dependable and safe operation in demanding environments.
Technical Specifications
- Item number: E222207
- Catalogue No: FR10GG50V10I
- Description: Cylindrical fuse-link gG Size 10x38 IEC 500VAC 10A With Visual Indicator
- EAN/UPC Code: 8430399007915
- Rated voltage AC IEC: 500 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 10 A
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: 10x38
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Max. Rated Breaking Capacity DC: 100 kA @ 250 V, L/R = 15 ms
- Indication System: Yes
- Indication System Type: Visual Indicator
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.3 mm
- Product Length: 38 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.083 kg
- Sell Pack Width: 55 mm
- Sell Pack Length: 81 mm
- Sell Pack Height: 14 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0083 kg
- Power Dissipation at Rated Current Value: 1.3 W
Product Code: FR10GG50V10I
Key Benefits
- Reliable circuit protection for low voltage industrial applications.
- Integrated visual indicator for quick fault identification and reduced downtime.
- Compact 10x38mm size for easy installation in standard fuse holders.
- High breaking capacity ensures safety under fault conditions.
- Durable ceramic body for enhanced insulation and longevity.
- Silver-plated copper terminals for excellent conductivity and corrosion resistance.
Compatibility
The FR10GG50V10I fuse-link is compatible with standard 10x38mm fuse holders and panels designed for IEC low voltage fuses. It supports both AC and DC circuits up to 500VAC and 250VDC respectively, making it suitable for a wide range of industrial electrical systems.
Applications
- Protection of industrial control panels and machinery.
- Safeguarding cables and wiring in commercial electrical installations.
- Use in motor control circuits and power distribution units.
- General purpose protection in manufacturing and processing plants.
Frequently Asked Questions
What does the visual indicator on the fuse-link do?
The visual indicator provides an immediate visual signal when the fuse has blown, allowing for quick identification and replacement without the need for testing equipment.
Can this fuse be used in DC applications?
Yes, the FR10GG50V10I is rated for use in both AC and DC circuits, with a maximum DC voltage rating of 250V as per IEC standards.
What is the breaking capacity of this fuse?
The fuse has a maximum rated breaking capacity of 120 kA for AC at 500V and 100 kA for DC at 250V with L/R = 15 ms.
Is this fuse compatible with standard fuse holders?
Yes, its 10x38mm size and clip mounting make it compatible with standard IEC fuse holders designed for this size.
Common Search Terms
cylindrical fuse 10x38, 10A fuse-link, IEC fuse 500VAC, visual indicator fuse, industrial fuse 10A, low voltage fuse, gG fuse 10A, ceramic fuse 10x38, high breaking capacity fuse
| Manufacturer Part Number | S218194 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399007755 |
| Height | 38mm |
| Width | 10.3mm |
| Depth | 10.3mm |
| HS Code | 85361010 |
| Manufacturer | Mersen |
| Alternative Product SKU | FR10GG50V10 |
