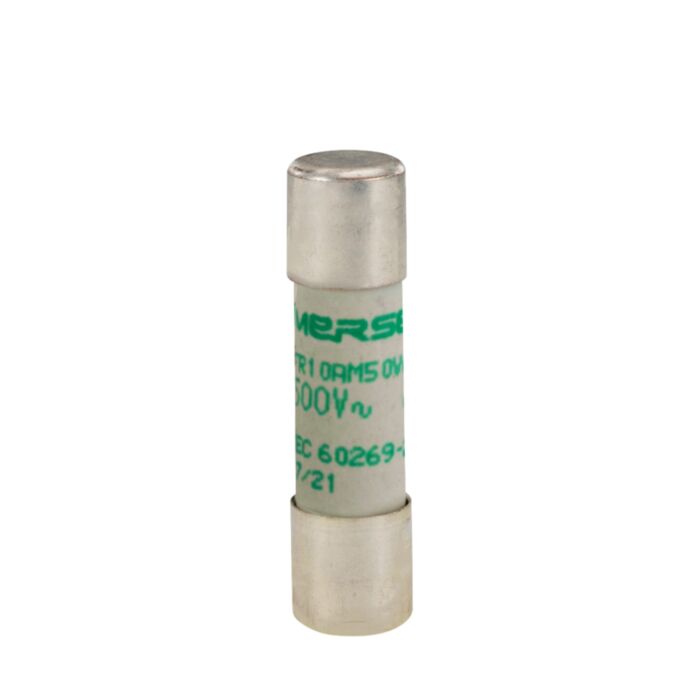

MERSEN FUSE 500V CP 10X38 AM 16A S/I FR10AM50V16
MPN: F214618
Alt. SKU: FR10AM50V16
Special Price
£0.6732
£0.5610
Regular Price
£1.22
MERSEN FUSE 500V CP 10X38 AM 16A S/I FR10AM50V16 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link aM Size 10x38 IEC 500VAC 16A FR10AM50V16?
The FR10AM50V16 fuse-link delivers reliable protection for motor circuits, featuring advanced gG/aM characteristics for precise short-circuit protection and consistent operation at up to 500VAC. Its compact 10x38 mm size enables straightforward integration into new assemblies or retrofit applications.
Designed to IEC standards, this fuse-link offers a 16A rating suited for industrial environments, ensuring dependable safeguarding against overloads. Its robust construction and trusted performance make it the preferred choice for engineers prioritising safety and equipment longevity.
Technical Specifications
- Item number: F214618
- Catalogue No: FR10AM50V16
- Description: Cylindrical fuse-link aM Size 10x38 IEC 500VAC 16A
- EAN/UPC Code: 8430399008080
- Rated voltage AC IEC: 500 V
- Ampere Rating: 16 A
- AC or DC: AC
- Speed/Characteristic: aM
- Fuse Size: 10x38
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.3 mm
- Product Length: 38 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.083 kg
- Sell Pack Width: 55 mm
- Sell Pack Length: 81 mm
- Sell Pack Height: 14 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0083 kg
- Power Dissipation at Rated Current Value: 0.87 W
Product Code: FR10AM50V16
Key Benefits
- Reliable short-circuit and overload protection for motor circuits
- Complies with IEC standards ensuring quality and safety
- Compact 10x38 mm size for easy installation and retrofit
- High breaking capacity of 120 kA for enhanced safety
- Durable ceramic body providing excellent insulation and heat resistance
- Silver-plated copper terminals for superior conductivity and corrosion resistance
Compatibility
This fuse-link is compatible with standard IEC 10x38 fuse holders and clips designed for low voltage motor protection circuits. It integrates seamlessly into industrial control panels and motor starter assemblies requiring a 16A aM characteristic fuse.
Applications
- Protection of motor circuits in industrial machinery
- Overload and short-circuit protection in control panels
- Use in manufacturing and processing plants
- Electrical equipment requiring 500VAC fuse protection
- Retrofit and new installations in industrial electrical systems
Frequently Asked Questions
What does the aM characteristic mean for this fuse?
The aM characteristic indicates that the fuse is designed specifically for motor protection, providing selective short-circuit protection while allowing for motor starting currents without nuisance tripping.
Can this fuse be used in DC circuits?
No, this fuse is rated for AC applications only, as specified by its 500VAC rating and IEC standards.
What is the breaking capacity of this fuse?
The FR10AM50V16 fuse has a maximum breaking capacity of 120 kA at AC voltage, ensuring it can safely interrupt high fault currents.
Is the fuse suitable for retrofit applications?
Yes, its standard 10x38 mm size and clip mounting make it ideal for both new installations and retrofitting existing systems.
Common Search Terms
10x38 fuse, motor protection fuse, 16A fuse-link, IEC fuse 500VAC, cylindrical fuse aM, FR10AM50V16, low voltage fuse, industrial fuse 16 amp, ceramic fuse-link, clip mount fuse
| Manufacturer Part Number | F214618 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399008080 |
| Height | 38mm |
| Width | 10.3mm |
| Depth | 10.3mm |
| HS Code | 85361050 |
| Manufacturer | Mersen |
| Alternative Product SKU | FR10AM50V16 |
